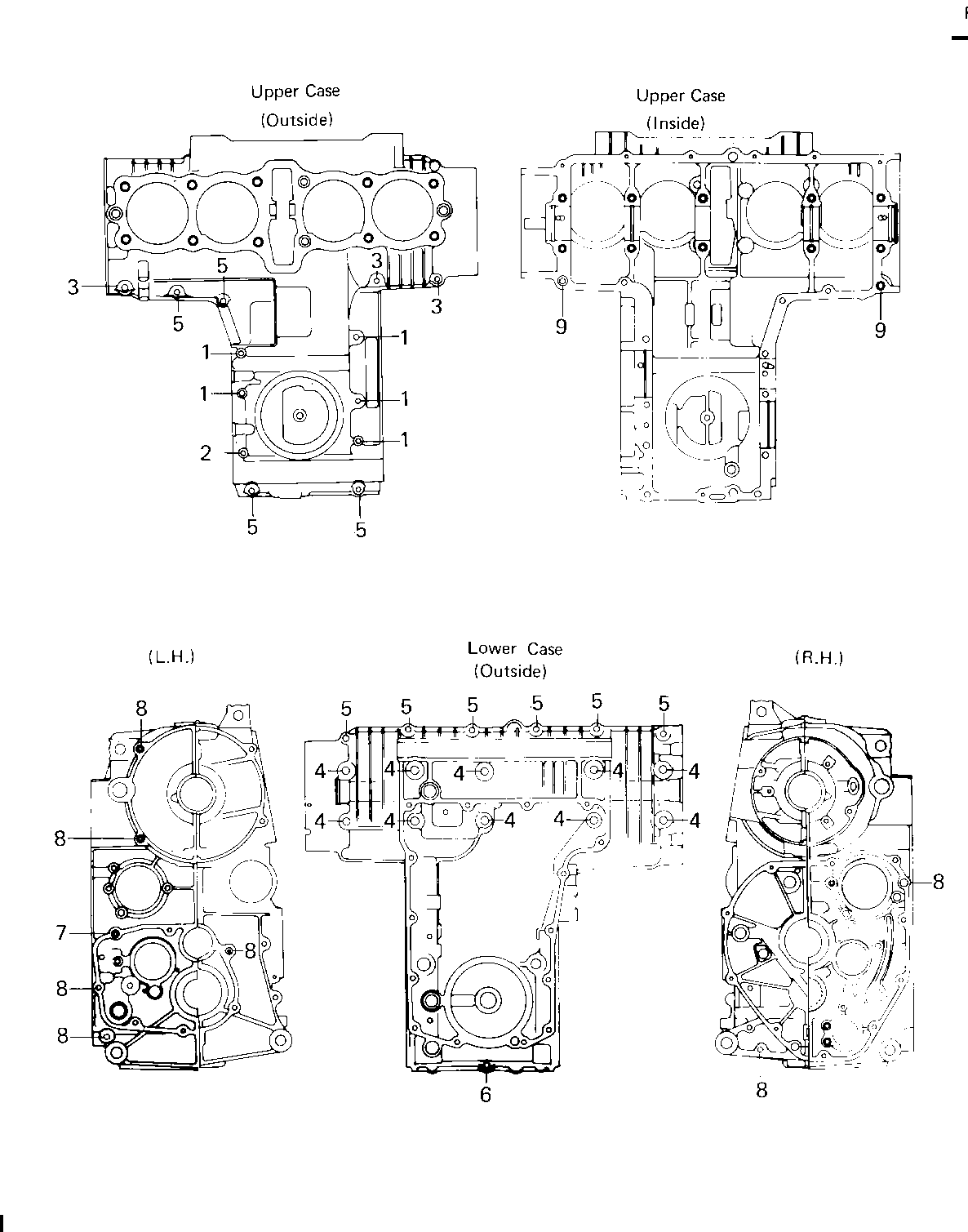

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X99 1 92003-111 5
BOLT,HEX HEAD,6X116 2 92003-113 1
UNAVAILABLE IN PRICE BOOK 3 *92003-179 2 MARKED PARTS ARE INCLUDED IN C
BOLT-FLANGED,6X50 3 130G0650 1
BOLT-FLANGED,8X95 4 130P0895 10
UNAVAILABLE IN PRICE BOOK 5 *92003-109 1 MARKED PARTS ARE INCLUDED IN C
BOLT,HEX HEAD,6X41 5 92003-109 9
BOLT,6X105 6 92003-194 1
PIN,DOWEL,6X14 7 551A0614 1
PIN-DOWEL 8 92042-007 7
UNAVAILABLE IN PRICE BOOK 9 *92043-1037 2 MARKED PARTS ARE INCLUDED IN C
