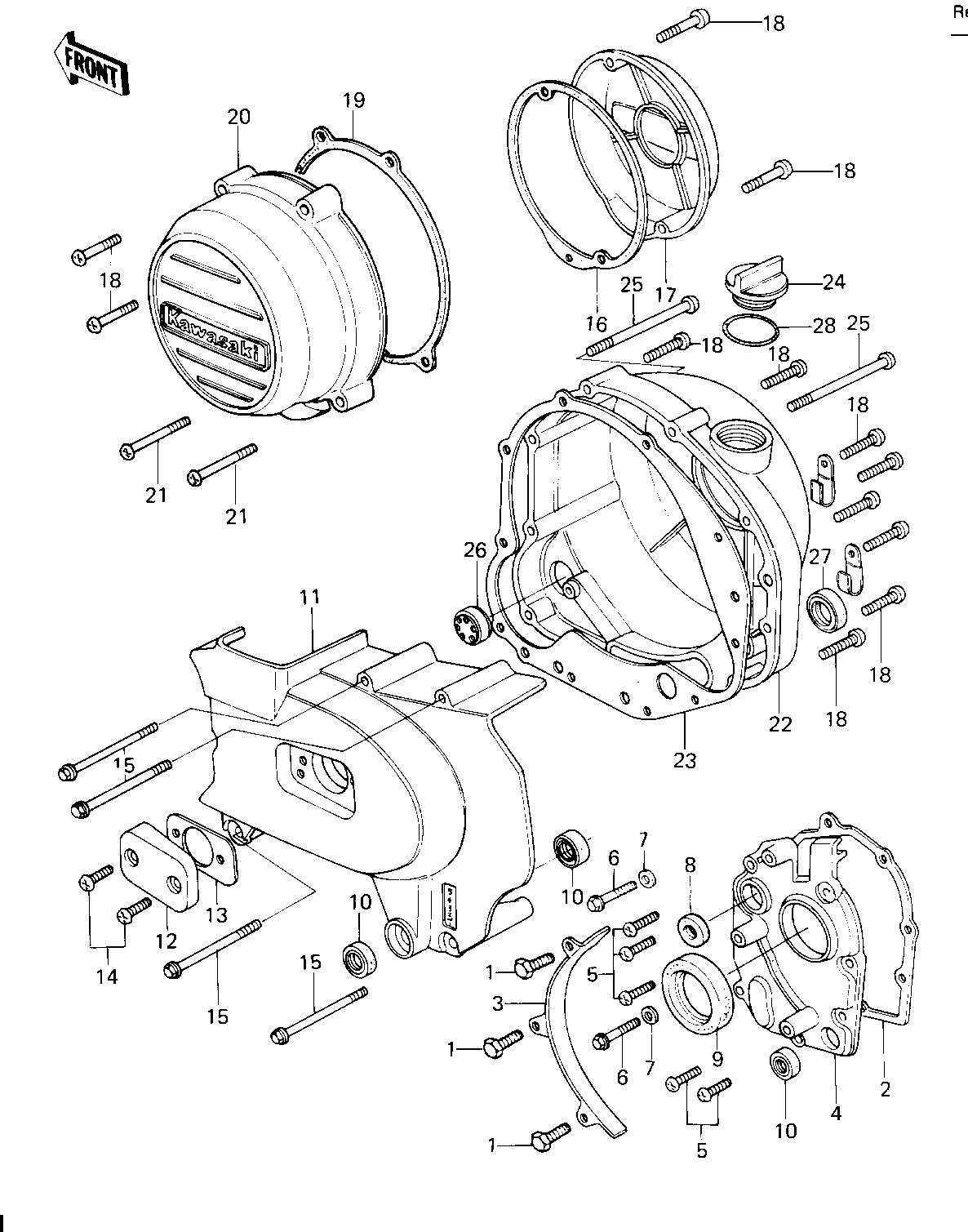

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET 6X14 | 1 | 112B0614 | 3 | ||
| GASKET,TRANSMISSION C | 2 | 11060-1056 | 1 | ||
| GUIDE,CHAIN | 3 | 12053-1006 | 1 | ||
| COVER,MISSION | 4 | 14024-011 | 1 | ||
| SCREW PAN HEAD 6X20 | 5 | 220B0620 | 5 | ||
| BOLT,HEX HEAD,6X35 | 6 | 92001-164 | 2 | ||
| WASHER OIL PUMP BANJO | 7 | 92022-077 | 2 | ||
| OIL SEAL,TC7187 | 8 | 92050-048 | 1 | E/NO. 114501~118403 | |
| OIL SEAL,SD-8187 | 8 | 92049-1017 | 1 | E/NO. 118404~123772 | |
| OIL SEAL SC325210 | 9 | 92050-024 | 1 | ||
| OIL SEAL,TB13225.5 | 10 | 92051-005 | 3 | ||
| COVER,ENG SPROCKT,BUF | 11 | 14026-035-80 | 1 | ||
| COVER,CLUTCH ADJUSTNG | 12 | 14028-006-80 | 1 | ||
| GASKET,CLUTCH ADJ CAP | 13 | 14049-004 | 1 | ||
| SCREW PAN HEAD 6X18 | 14 | 220B0618 | 2 | ||
| BOLT-FLANGED,6X70 | 15 | 130G0670 | 4 | ||
| GASKET,PULSING COIL C | 16 | 11060-1053 | 1 | ||
| CAP,CONTACT BREAKER | 17 | 11012-1098 | 1 | ||
| SCREW PAN HEAD 6X30 | 18 | 220B0630 | 12 | ||
| GASKET,GENERATOR COVE | 19 | 11009-1987 | 1 | ||
| COVER,GENERATOR | 20 | 14031-1040 | 1 | ||
| SCREW PAN HEAD 6X40 | 21 | 220B0640 | 2 | ||
| COVER,R.H.ENG,BUFF FN | 22 | 14032-117-80 | 1 | ||
| GASKET,R.H.ENG COVER | 23 | 14046-035 | 1 | ||
| PLUG,OIL FILLER | 24 | 16115-013 | 1 | ||
| SCREW PAN HEAD 6X80 | 25 | 220B0680 | 2 | ||
| GAUGE,OIL LEVEL | 26 | 52015-004 | 1 | ||
| OIL SEAL SB20285 | 27 | 92049-012 | 1 | ||
| "0" RING,31MM | 28 | 92055-049 | 1 |
