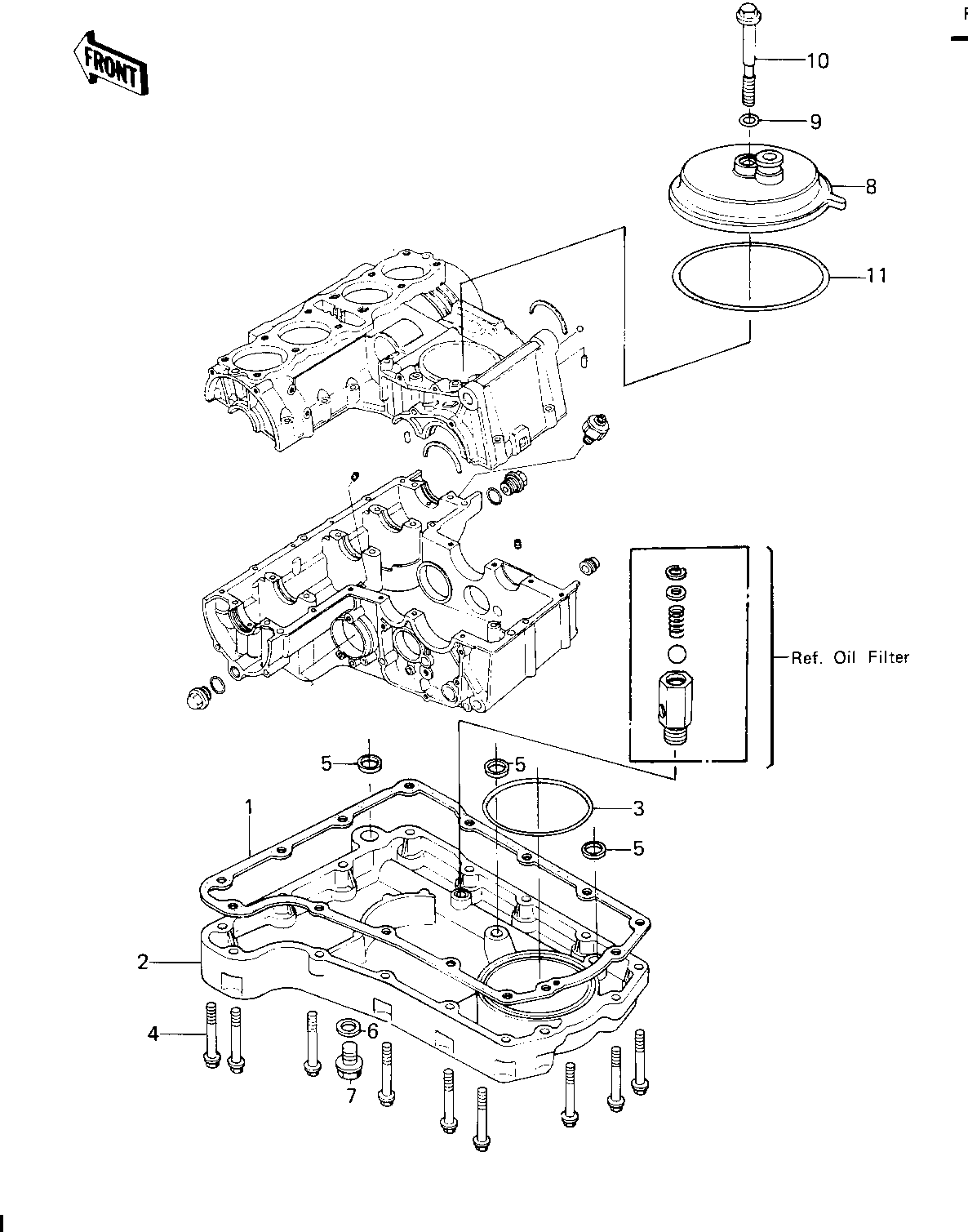

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 1 11009-1983 1
PAN-OIL 2 49034-5011 1
"0" RING,90MM 3 671B2590 1
BOLT,FLANGED,6X25 4 130G0625 15
"O" RING 5 92055-077 3
GASKET,DRIN PLUG 6 92065-097 1
PLUG,OIL DRAIN,12X15 7 92066-1174 1
BODY-BREATHER 8 14070-1008 1
"O" RING,8MM 9 670B1508 1
BOLT,HEX HEAD,8X72 10 92003-107 1
"O" RING,91MM 11 92055-052 1
