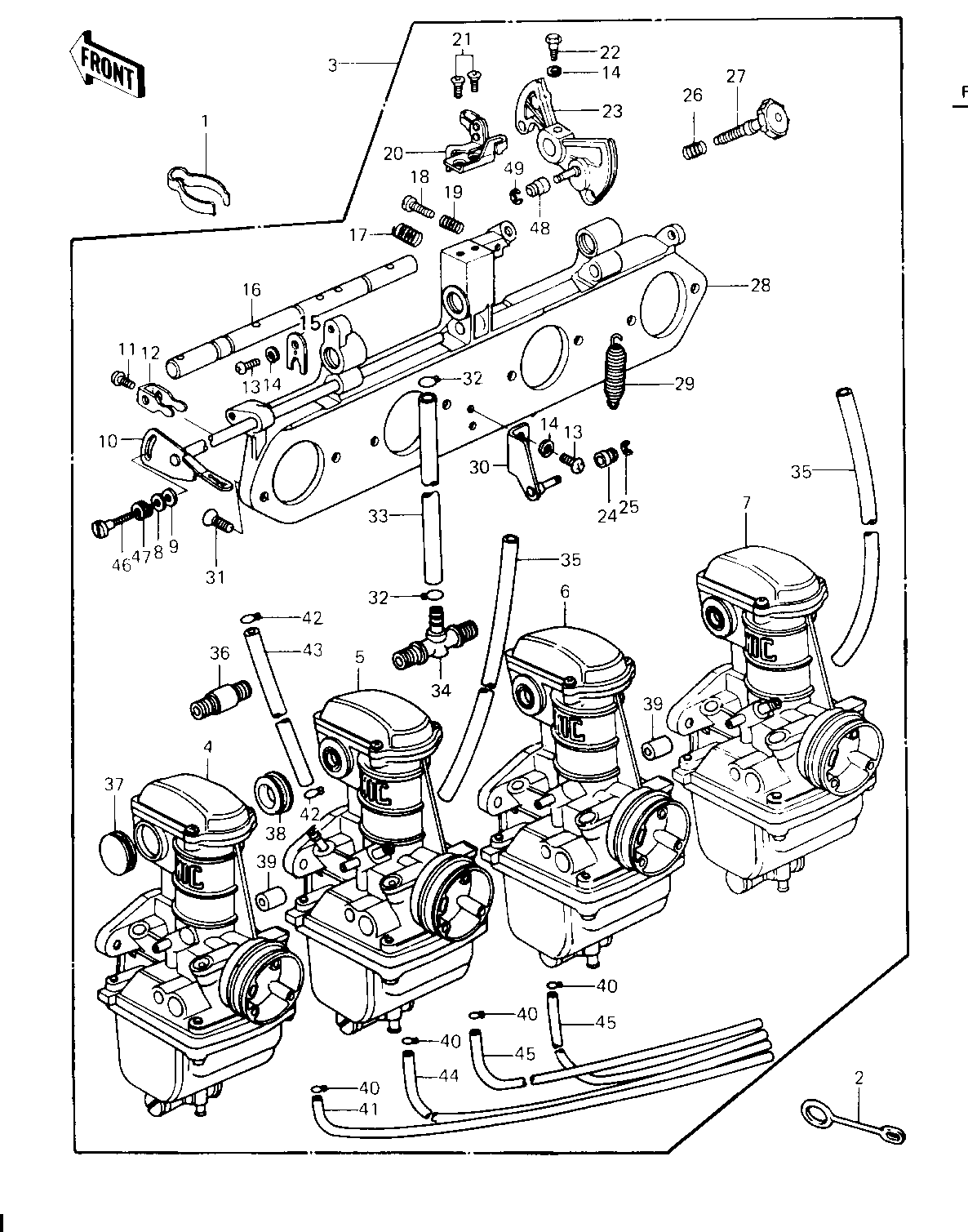

1980 KZ650-F1 - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLAMP,AIR VENT HOSE 1 92037-1092 1
CLAMP,OVER FLOW PIPE 2 92037-134 1
CARBURETOR ASSY 3 16001-1208 1
CARBURETOR ASSY 3 16001-1069 1
CARBURETOR,L.H,OUT 4 16001-1070 1
CARBURETOR,L.H,INSIDE 5 16001-1071 1
CARBURETOR,R.H,INSIDE 6 16001-1072 1
CARBURETOR,R.H,OUT 7 16001-1073 1
WASHER PLAIN 5MM 8 410B0500 1
WASHER,PLAIN 9 16039-019 1
SHAFT,STARTER PLUNGER 10 16041-021 1
SCREW,PAN HEAD,5X7 11 16046-007 4
LEVER,STARTER PLUNGER 12 13168-1026 3
SCREW-PAN-CROS 13 220B0514 4
WASHER SPRING 5MM 14 461F0500 1
PLATE,SHAFT STOPPER 15 16055-012 1
SHAFT,CARB CONNECTION 16 16041-017 1
SPRING,CABLE PULLY 17 16040-022 1
SCREW 18 16021-032 1
SPRING,THROTTLE ADJST 19 16022-010 1
BRACKET,THROTTLE CABL 20 16077-017 1
SCREW CNTSNK HD 5X10 21 221B0510A 2
BOLT,HEX HEAD,5X14 22 16067-006 1
PULLEY,THROTTLE CABLE 23 16068-015 1
RING 24 16073-016 1
CIRCLIP 3MM 25 482K3000 1
SPRING,THROTTLE STOP 26 16022-017 1
SCREW,THROTTLE STOP 27 16021-1010 1
HOLDER,CARBURETOR 28 16065-049 1
SPRING,THROTTLE PULLY 29 92081-1028 1
BRACKET,THROTTLE CABL 30 16077-016 1
SCREW,6X14 31 16033-029 8
CLAMP,HOSE 32 92037-1184 2
TUBE,7.5X12.5X225 33 92059-1123 1
FITTING 34 92005-1010 1
HOSE,AIR VENT,5X8X250 35 92059-1045 2
FITTING 36 92005-1009 2
CAP,RUBBER 37 16039-042 2
GROMMET,CARBURETOR 38 92071-104 6
HOSE,6X11.5X16 39 92059-141 2
CLAMP,OVERFLOW HOSE 40 92037-173 4
HOSE,FUEL OVERFLOW 41 92059-147 1
CLAMP-PIPE 42 92037-072 2
TUBE,5.3X10.5X140 43 92059-1019 1
HOSE,FUEL OVERFLOW 44 92059-134 1
HOSE,FUEL OVERFLOW 44 92059-147 1
HOSE,FUEL OVERFLOW 45 92059-134 2
SCREW 46 16046-005 1
SPRING,F 47 16040-009 1
RING 48 16073-016 1
CIRCLIP 3MM 49 482K3000 1
