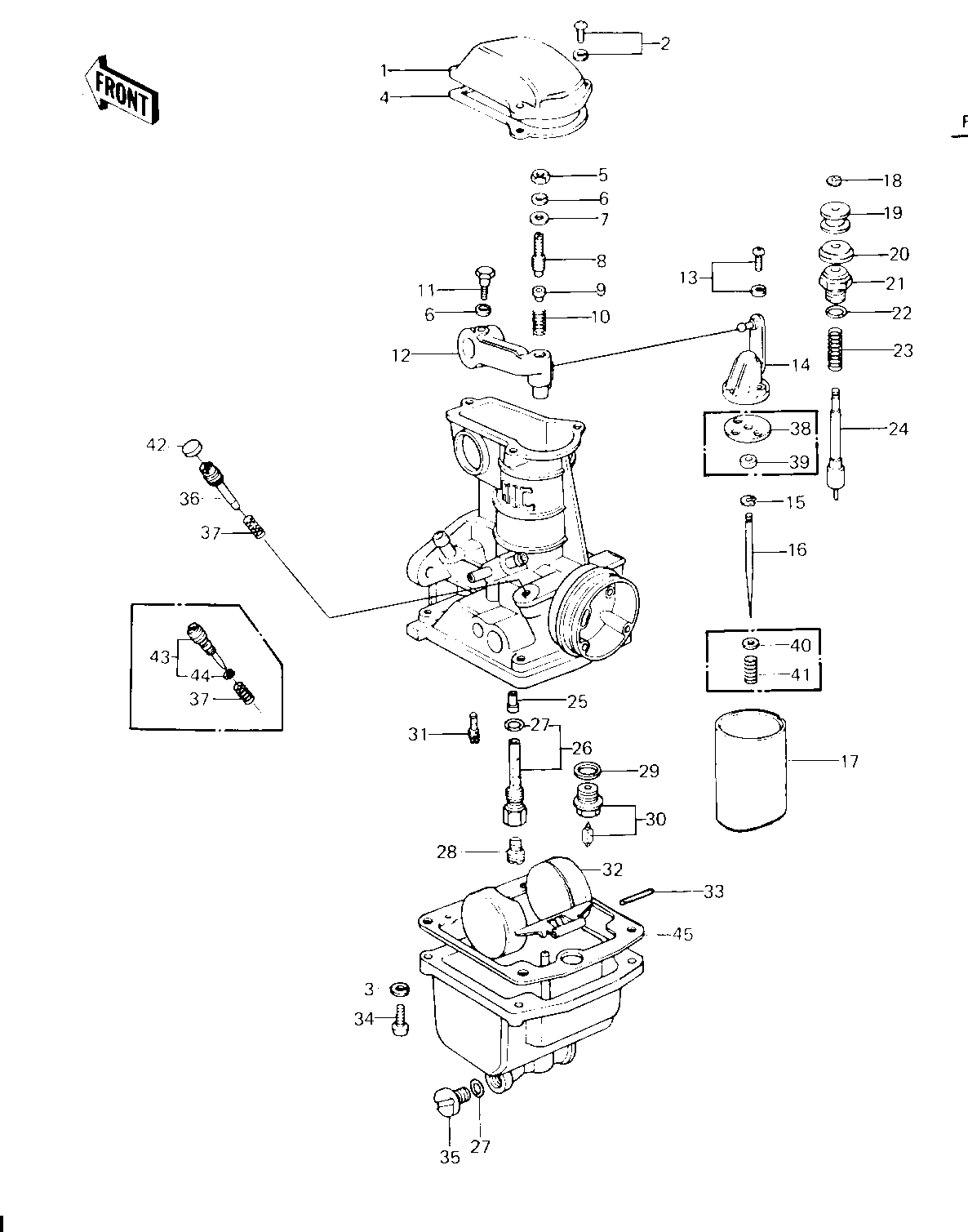

1980 KZ650-F1 - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP,MIXING CHAMBER 1 16005-027 4
SCREW-PAN-WS-CROS 2 223B0414 12
WASHER SPRING 4MM 3 461F0400 16
GASKET,CHAMBER TOP 4 16019-031 4
NUT,5MM 5 16003-013 4
WASHER SPRING 5MM 6 461F0500 8
WASHER,PLAIN 7 16039-016 4
SCREW,SLOTTED 8 16046-012 4
SEAT,SPRING 9 16057-002 4
SPRING 10 16040-026 4
BOLT,HEX HEAD,5X14 11 16067-006 4
LEVER,THROTTLE 12 39075-1001 4
SCREW,PAN HEAD,3X14 13 16033-031 8
BRACKET,THROTTLE VALV 14 39184-1001 4
CIRCLIP 15 16008-010 4
JET NEEDLE,5CL30 16 16009-1048 4
VALVE,THROTTLE,CA1.75 17 16025-1025 4
CIRCLIP 18 16076-003 4
COLLAR 19 16073-014 4
CAP,STARTER PLUNGER 20 16039-015 4
CAP,STARTER PLUNGER 21 16012-015 4
"O" RING,9MM 22 670B1509 4
SPRING,STARTER PLUG 23 16013-008 4
PLUNGER,STARTER 24 16016-021 4
NEEDLE JET,AO-5 25 16017-1034 4
PIPE,BLEED 26 49122-1006 4
PIPE,BLEED 26 16047-005 4
"0" RING,MAIN JET COV 27 16038-016 8
MAIN JET,#A97.5R 28 92063-1035 4
MAIN JET,#A100 28 92063-1033 (4 RACING USE ONLY
MAIN JET,#A105R 28 92063-1042 (4 RACING USE ONLY
MAIN JET NO 92.5R 28 92063-068 (4 RACING USE ONLY
MAIN JET,#A95 28 92063-1031 (4 RACING USE ONLY
WASHER FLOAT VLV SEAT 29 16029-004 4
FLOAT VALVE ASSY 30 16030-1001 4
PILOT JET,#A15 31 92064-1018 4
FLOAT 32 16031-031 4
FLOAT PIN 33 16032-003 4
SCREW PAN HEAD 4X16 34 220B0416 16
SCREW,GUIDE 35 16049-007 4
SCREW,PILOT ADJUSTING 36 16014-1020 4
SPRING-THR STOP SCREW 37 16022-007 4
PLATE,JET NEEDLE 38 13169-1107 4
RING,JET NEEDLE 39 92027-1103 4
WASHER,THROTTLE VALVE 40 92022-1024 4
SPRING,JET NEEDLE 41 92081-1072 4
PLUG,PILOT SCREW 42 92066-1051 4
