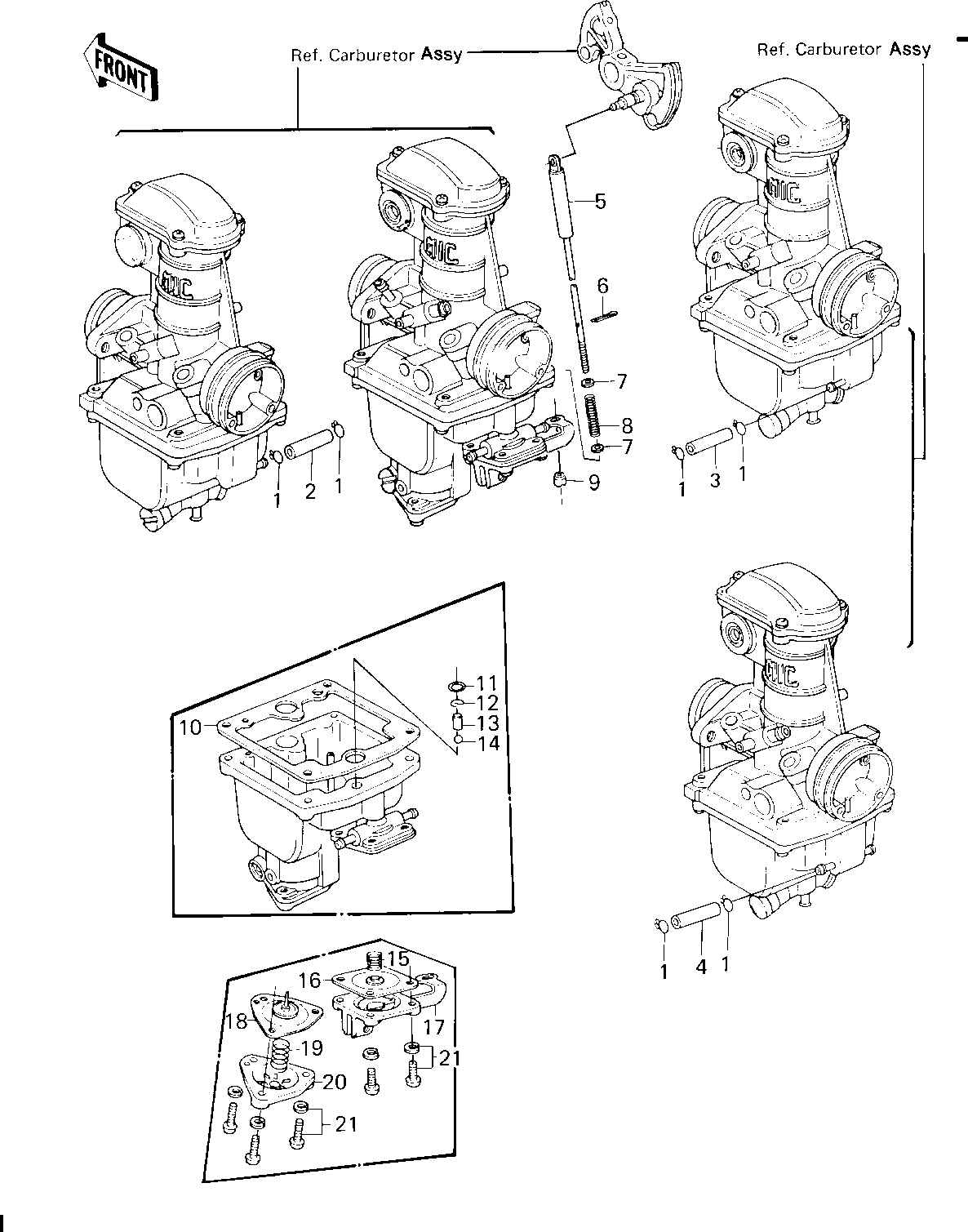

1980 KZ650-F1 - ACCELERATOR PUMP (USA)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CLAMP,TUBE | 1 | 92037-1124 | 6 | ||
TUBE,3.5X7.5X47.5 | 2 | 92059-1072 | 1 | ||
TUBE,3.5X7.5X64.5 | 3 | 92059-1071 | 1 | ||
TUBE,3.5X7.5X47.5 | 4 | 92059-1072 | 1 | ||
ROD ASSY,PUMP | 5 | 46102-1007 | 1 | ||
COTTER PIN,1.0X6 | 6 | 550D1006 | 1 | ||
WASHER,PUMP ROD | 7 | 92022-1138 | 2 | ||
SPRING,PUMP ROD | 8 | 92081-1138 | 1 | ||
NUT,PUMP ROD | 9 | 92015-1075 | 1 | ||
GASKET,FLOAT CHAMBER | 10 | 11009-1562 | 4 | ||
"O" RING,CHECK VALVE | 11 | 92055-1059 | 4 | ||
CLAMP,SPRING,CHECK VL | 12 | 92037-1123 | 4 | ||
WEIGHT,PUMP,CHECK VLV | 13 | 13042-1004 | 4 | ||
BALL,STEEL,CHECK VALV | 14 | 92140-1003 | 4 | ||
SPRING,PUMP DIAPHRAGM | 15 | 92081-1139 | 1 | ||
DIAPHRAGM,PUMP | 16 | 43028-1012 | 1 | ||
COVER ASSY,PUMP | 17 | 14025-1139 | 1 | ||
DIAPHRAGM,SENSOR | 18 | 43028-1010 | 1 | ||
SPRING,SENSOR DIAPHRA | 19 | 92081-1137 | 1 | ||
COVER,SENSOR | 20 | 14025-1121 | 1 | ||
SCREW-PAN-WS-CROS | 21 | 223B0414 | 7 |
