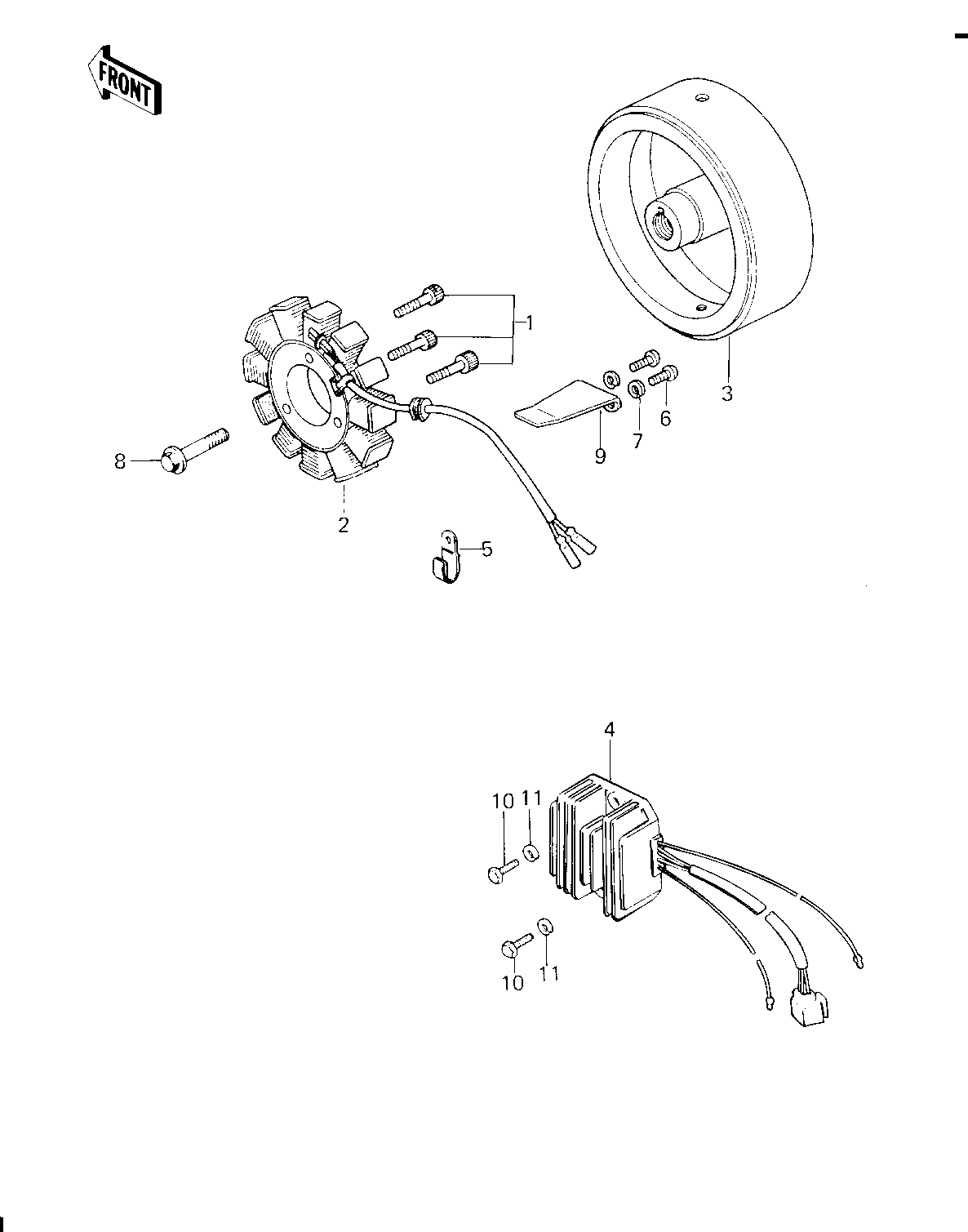

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X30 1 120P0530 3
STATOR 2 21003-1005 1
FLYWHEEL 3 21050-1003 1
REGULATOR,VOLTAGE 4 21066-1014 1
CLAMP,WIRING HARNESS 5 21126-008 1
SCREW PAN HEAD 5X12 6 220B0512 2
WASHER SPRING 5MM 7 461F0500 2
BOLT,10X40 8 92001-1201 1
CLAMP,GENERATOR WIRE 9 92037-1122 1
BOLT-UPSET,6X16 10 112G0616 2
WASHER SPRING 6MM 11 461F0600 2
