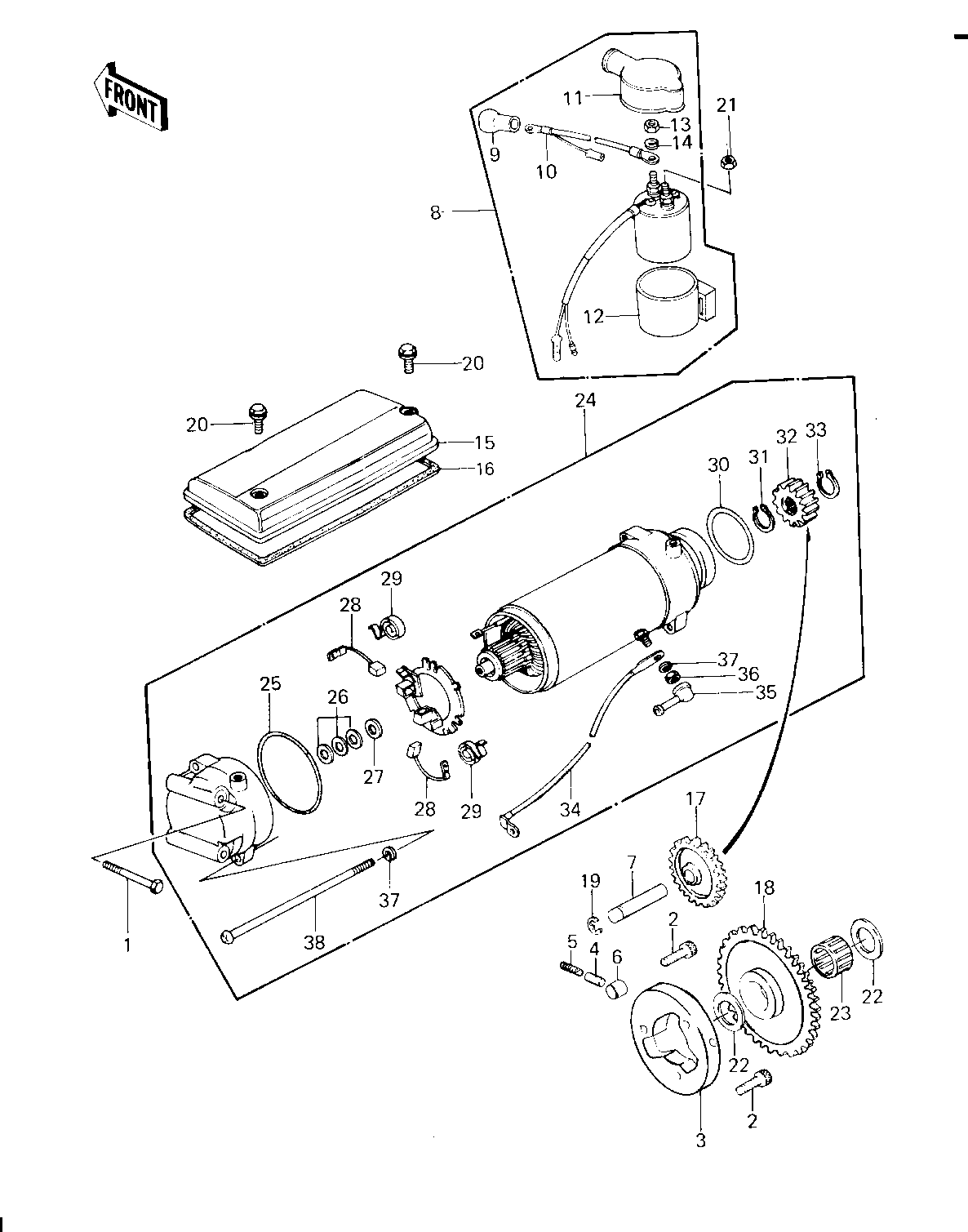

1980 KZ650-F1 - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 1 112G0660 2
BOLT,SOCKET,8X12 2 120P0812 3
CLUTCH-ASSY-ONEWAY 3 13193-1012 1
PIN 4 92043-087 3
SPRING 5 92081-110 3
ROLLER 6 92122-004 3
SHAFT,IDLE GEAR 7 21143-003 1
SWITCH,MAGNETIC 8 27010-1050 1
CAP,MAGNETIC SWITCH 9 21017-023 1
WIRE-LEAD,MAGNETIC SW 10 26011-1128 1
COVER MAGNETIC SWITCH 11 21141-004 1
DAMPER MAG SWITCH SHK 12 21064-002 1
NUT 6MM 13 312B0600 1
WASHER SPRING 6MM 14 461F0600 1
COVER,STARTER 15 21165-003 1
GASKET,STARTER COVER 16 21166-003 1
GEAR,IDLE,29T 17 21167-004 1
SPROCKET,STARTER,58T 18 12046-1032 1
CIRCLIP 12MM 19 482K0200 1
BOLT,6X10 20 92001-1151 2
NUT,LOCK 6MM 21 92017-014 1
SPACER,25X36X3.2 22 92026-1025 2
BRG,NEEDLE,K253017 23 92046-056 1
STARTER-ELECTRIC 24 21163-1022 1
"0" RING,62MM 25 21027-006 1
WASHER,THRUST,0.2T 26 21025-011 AR
WASHER,THRUST,1.6T 27 21025-010 1
CARBON BRUSH 28 21039-003 2
SPRING,CARBON BRUSH 29 21040-003 2
"0" RING,40M/M 30 21027-008 1
CIRCLIP 31 92033-034 1
PINION,STARTER 32 21053-004 1
CIRCLIP,13M/M 33 92033-037 1
WIRE-LEAD,STARTER 34 26011-1099 1
CAP, STARTER MOTOR TERMINAL 35 21017 020 1
NUT 6MM 36 312B0600 2
WASHER SPRING 6MM 37 461F0600 4
SCREW, PAN HEAD, 6 X 130 38 21099 006 2
