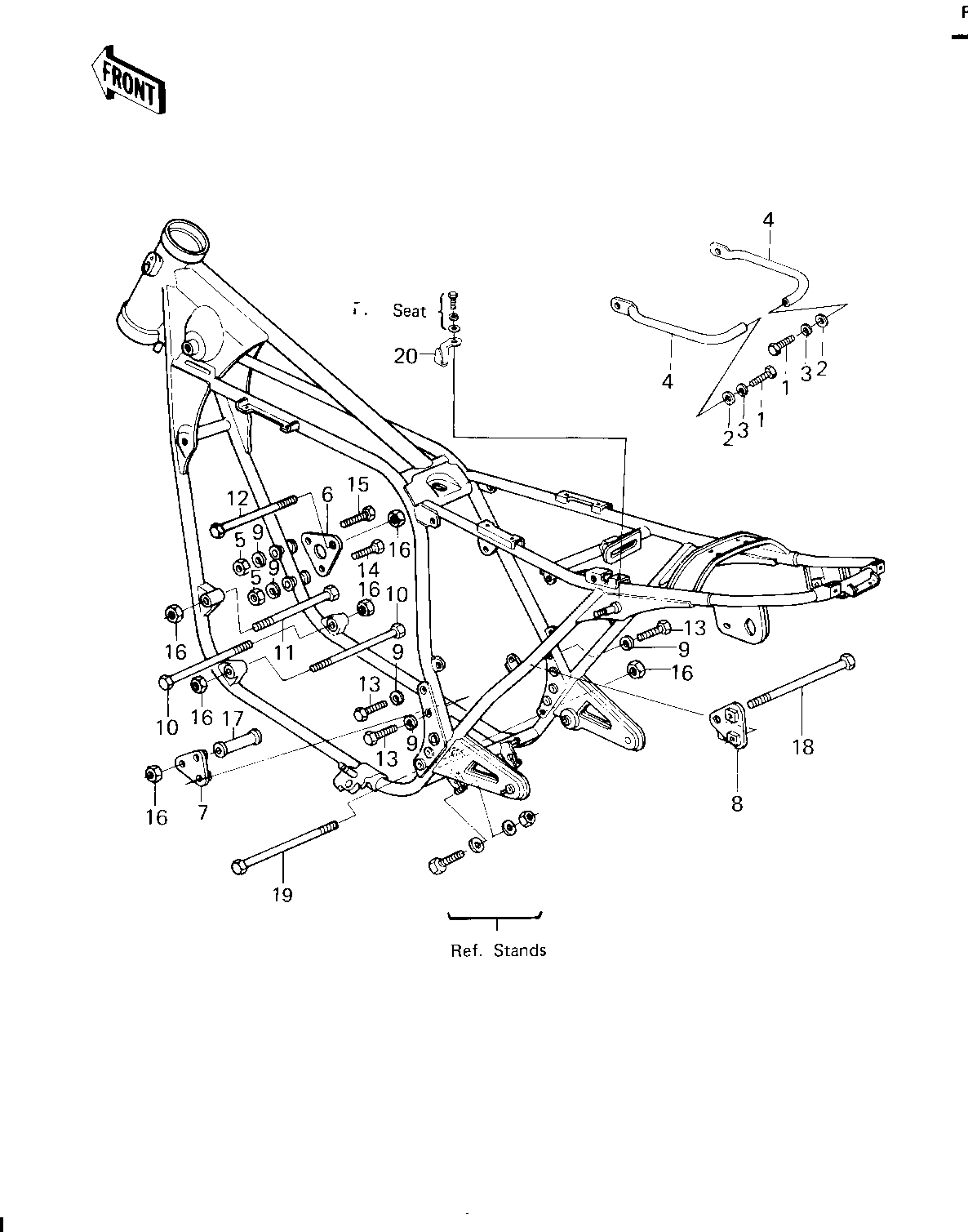

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SMALL-UPSET,8X16 | 1 | 115G0816 | 2 | ||
WASHER PLAIN 8MM | 2 | 410B0800 | 2 | ||
WASHER SPRING 8MM | 3 | 461F0800 | 2 | ||
GRIP,FRAME | 4 | 32109-016 | 2 | ||
NUT,8MM | 5 | 311B0800 | 2 | ||
PLATE,FRONT ENG.MOUNT | 6 | 32030-063 | 1 | ||
PLATE,RR ENG MONT,L.H | 7 | 32030-064 | 1 | ||
PLATE,RR ENG MONT,R.H | 8 | 32030-065 | 1 | ||
WASHER SPRING 8MM | 9 | 461F0800 | 6 | ||
BOLT,HEX HEAD,10X84 | 10 | 92001-1048 | 2 | ||
BOLT,HEX HEAD,10X72 | 11 | 92001-1049 | 1 | ||
BOLT,HEX HEAD,10X46 | 12 | 92001-1050 | 1 | ||
BOLT,HEX HEAD,8X40 | 13 | 92001-1230 | 4 | ||
BOLT,FLANGED,8X60 | 14 | 92001-1581 | 1 | ||
BOLT-8X63 | 15 | 92001-1397 | 1 | ||
NUT,LOCK,10MM | 16 | 92019-021 | 6 | ||
COLLAR,L=54MM. | 17 | 92027-275 | 1 | ||
BOLT,ENGINE MOUNTING | 18 | 92091-023 | 1 | ||
BOLT,HEX HEAD,10X219 | 19 | 92091-032 | 1 | ||
BRACKET,HELMET HOLDER | 20 | 32122-057 | 1 |
BOLT-SMALL-UPSET,8X16 | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 8MM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GRIP,FRAME | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE,FRONT ENG.MOUNT | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,RR ENG MONT,L.H | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,RR ENG MONT,R.H | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X84 | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X72 | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X46 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,8X40 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X60 | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-8X63 | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COLLAR,L=54MM. | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,ENGINE MOUNTING | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X219 | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HELMET HOLDER | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
