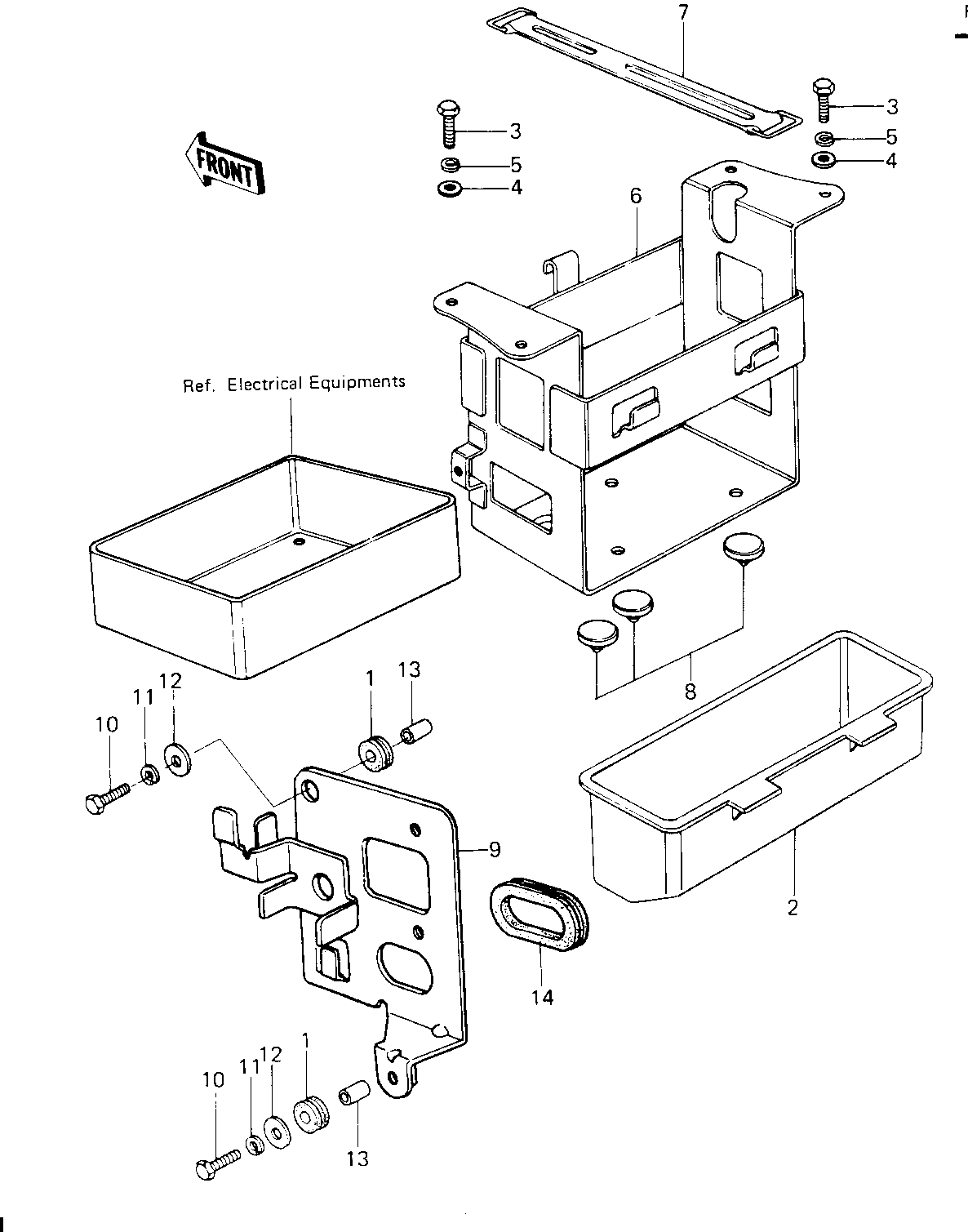

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DAMPER 1 92075-317 2
CASE,TOOL 2 32098-028 1
BOLT-UPSET,6X12 3 112G0612 4
WASHER PLAIN 6MM 4 410B0600 4
WASHER SPRING 6MM 5 461F0600 4
CASE,BATTERY 6 32097-1005 1
BAND,OIL TANK 7 92072-054 1
DAMPER RUBBER 8 92075-078 3
BRACKET,ELECTRO BASE 9 11036-1089 1
BOLT, HEX HEAD, 6X25 10 110B0625 2
WASHER SPRING 6MM 11 461F0600 2
WASHER,PLAIN,7MM 12 92022-228 2
COLLAR-CLAMP 13 92027-291 2
GROMMET,ELECTO BASE 14 92071-1007 1
