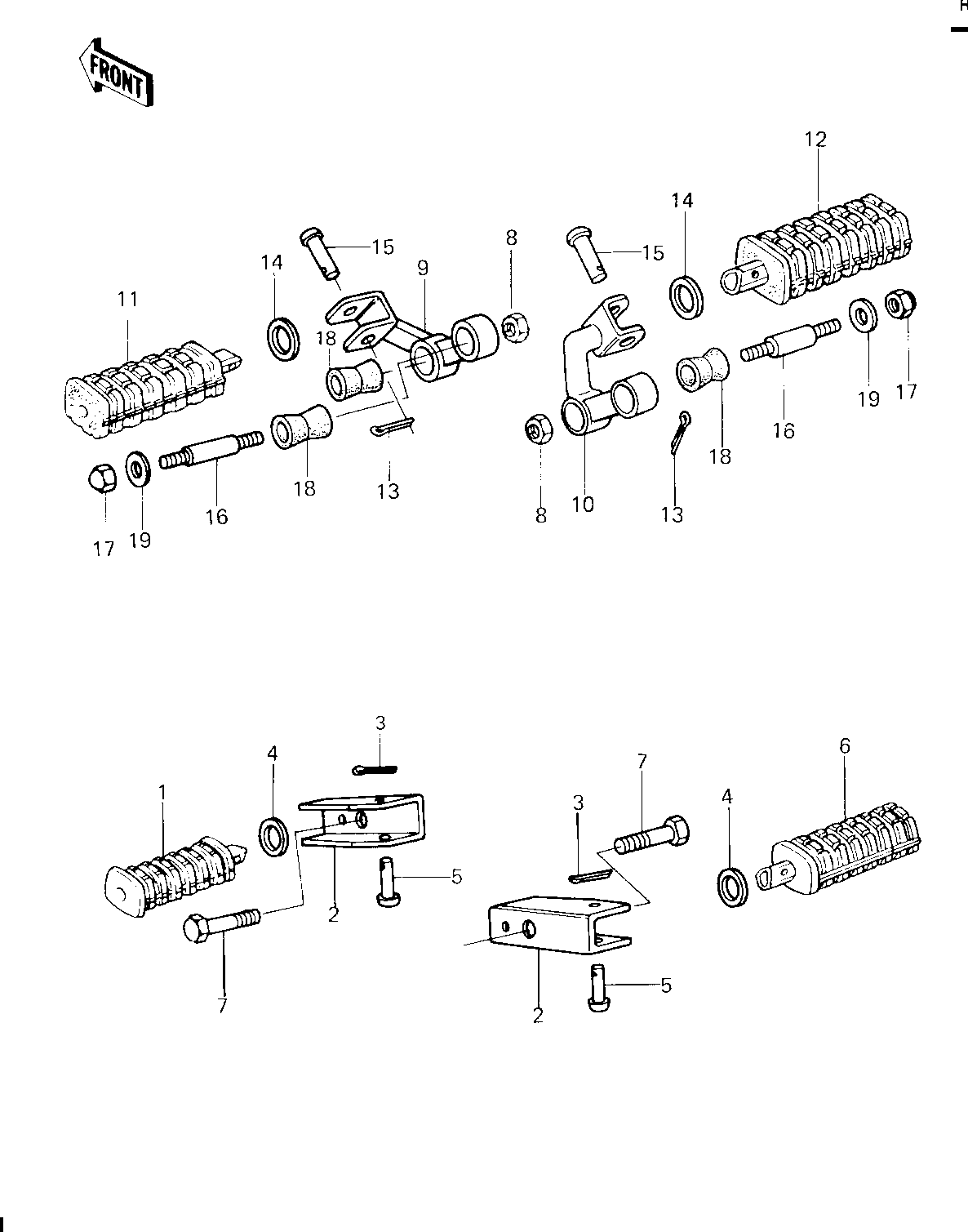

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,FOOTREST,REAR,LH 1 34028-1009 1
BRACKET,REAR FOOTREST 2 34036-002 2
PIN,COTTER,2.0X12 3 550D2012 2
WASHER-PLAIN 4 92022-181 2
PIN 5 92043-1464 2
STEP,FOOTREST,REAR,RH 6 34028-1010 1
BOLT,HEX HEAD,10X40 7 92003-213 2
NUT 10MM 8 315B1000 4
HOLDER,STEP,L.H. 9 34003-1012 1
HOLDER,STEP,R.H. 10 34003-1015 1
STEP,FOOTREST,FRONT,L 11 34028-1007 1
STEP,FOOTREST,FRONT,R 12 34028-1008 1
PIN COTTER 2.5X16 13 550D2516 2
WASHER,PLAIN 14 92022-250 2
PIN-FOOTREST BAR FIT 15 92043-080 2
STUD,FOOTREST BAR FIT 16 92004-048 4
NUT,CAP AND LOCK,8MM 17 92019-013 4
DAMPER RUBBER,FOOTRES 18 92075-293 4
CAP,FOOTRESTBAR 19 92102-010 4
