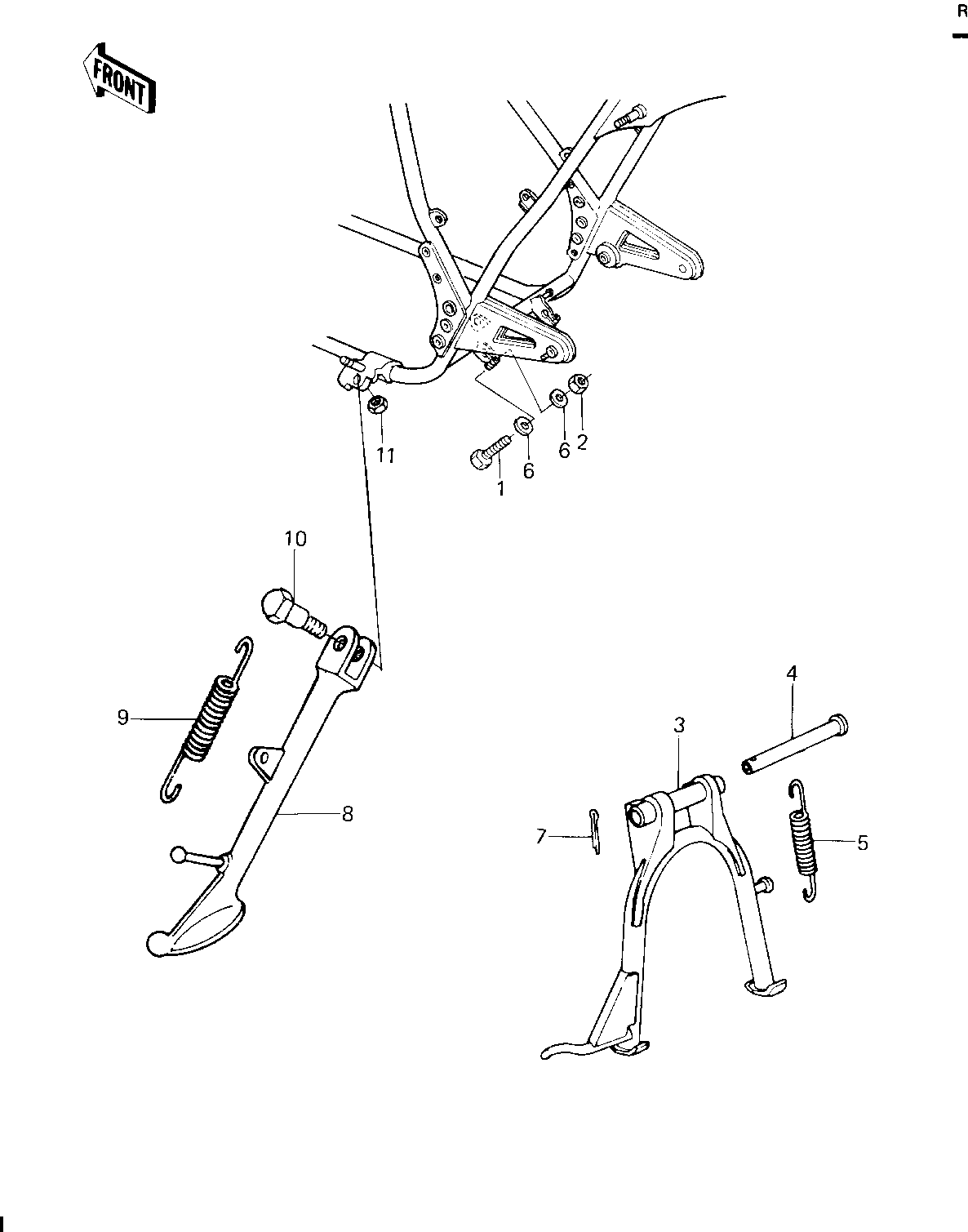

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 1 92001-1578 2
NUT,8MM 2 311B0800 2
STAND-MAIN 3 34011-1041 1
SHAFT,MAIN STAND 4 34019-015 1
SPRING,MAIN STAND 5 34023-016 1
WASHER PLAIN 8MM 6 410B0800 4
PIN COTTER 3.0X30 7 550D3030 1
STAND-SIDE 8 34024-1103 1
SPRING,SIDE STAND 9 34025-005 1
BOLT-SIDE STAND 10 92003-079 1
NUT,LOCK,10MM 11 92019-021 1
