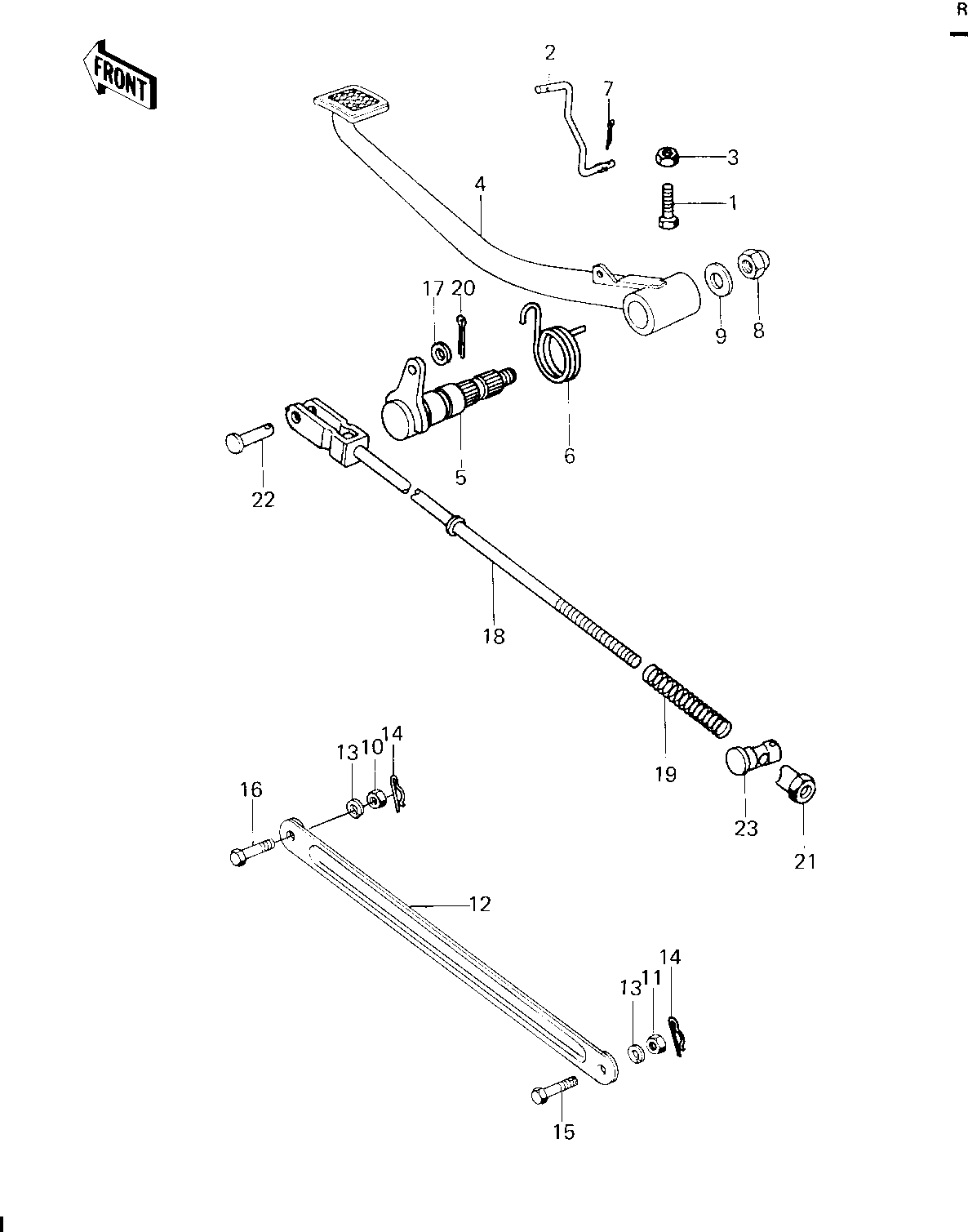

1980 KZ650-F1 - BRAKE PEDAL/TORQUE LINK
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| HOOK, BRAKE SWITCH | 2 | 27012-1003 | 1 | ||
| NUT 6MM | 3 | 311B0600 | 1 | ||
| PEDAL BRAKE | 4 | 43001-1009 | 1 | ||
| SHAFT,BRAKE PEDAL | 5 | 43004-012 | 1 | ||
| SPRING,BRAKE PEDAL | 6 | 43005-022 | 1 | ||
| PIN COTTER 1.6X10 | 7 | 550D1610 | 1 | ||
| NUT,CAP AND LOCK,8MM | 8 | 92019-013 | 1 | ||
| WASHER,8.5X20X1.6 | 9 | 92022-1561 | 1 | ||
| NUT,10MM | 10 | 314B1000 | 1 | ||
| NUT 10MM | 11 | 315B1000 | 1 | ||
| TORQUE LINK-REAR BRK | 12 | 43007-027 | 1 | ||
| WASHER SPRING 10MM | 13 | 461F1000 | 2 | ||
| PIN,SNAP | 14 | 554A0800 | 2 | ||
| BOLT HEX HEAD 10MM | 15 | 92003-034 | 1 | ||
| BOLT | 16 | 92003-096 | 1 | ||
| WASHER PLAIN 6MM | 17 | 410B0600 | 1 | ||
| ROD-BRAKE | 18 | 43011-009 | 1 | ||
| SPRING,BRAKE ROD | 19 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 20 | 550D2015 | 1 | ||
| NUT-BRAKE ROD ADJUST | 21 | 92015-042 | 1 | ||
| PIN-BRAKE ROD FITTING | 22 | 92043-064 | 1 | ||
| PIN-BRAKE ROD | 23 | 92043-065 | 1 |
| BOLT-UPSET,6X20 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK, BRAKE SWITCH | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL BRAKE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,BRAKE PEDAL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 1.6X10 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP AND LOCK,8MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TORQUE LINK-REAR BRK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,SNAP | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-BRAKE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE ROD | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-BRAKE ROD ADJUST | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-BRAKE ROD FITTING | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-BRAKE ROD | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
