Parts Diagrams |

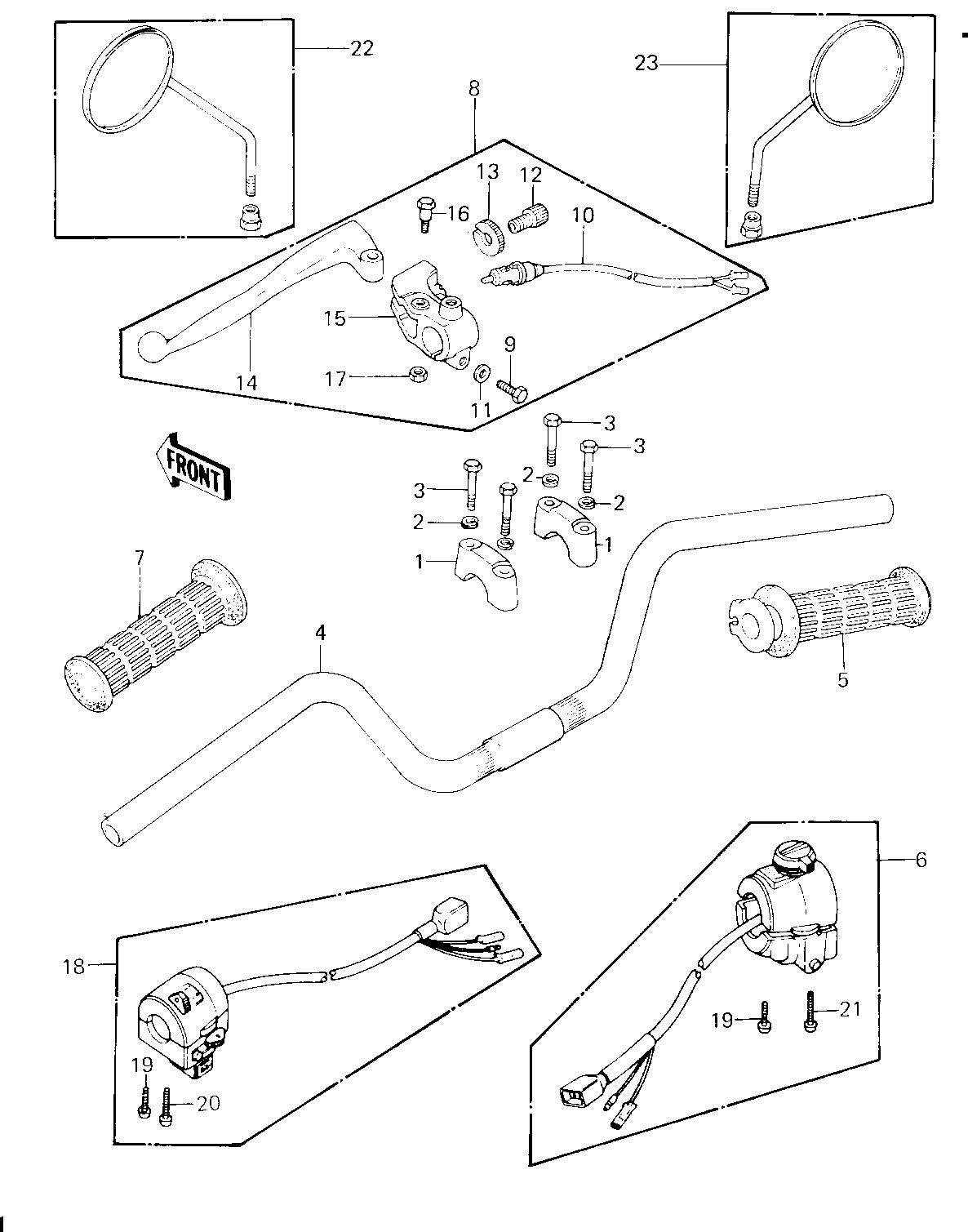

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER-HANDLEBAR | 1 | 46012-008 | 2 | ||
| WASHER SPRING 8MM | 2 | 461F0800 | 4 | ||
| BOLT 8X38 | 3 | 92001-1405 | 4 | ||
| HANDLEBAR | 4 | 46003-1026 | 1 | ||
| GRIP ASSY,THROTTLE | 5 | 46019-038 | 1 | ||
| HOUSING ASSY,CONT,R.H | 6 | 46091-1047 | 1 | ||
| RUBBER,L.H GRIP | 7 | 46075-028 | 1 | ||
| LEVER ASSY,CLUTCH | 8 | 46076-054 | 1 | ||
| BOLT HEX HEAD 6X25 | 9 | 110N0625 | 1 | ||
| SWITCH,CLUTCH | 10 | 27043-002 | 1 | ||
| WASHER PLAIN 6MM | 11 | 410B0600 | 1 | ||
| SCREW CABLE ADJUST | 12 | 46055-003 | 1 | ||
| NUT,CABLE ADUST NUT | 13 | 46056-007 | 1 | ||
| LEVER,CLUTCH | 14 | 46092-023 | 1 | ||
| HOLDER,CLUTCH LEVER | 15 | 46094-019 | 1 | ||
| BOLT,HEX HEAD | 16 | 92007-047 | 1 | ||
| NUT,LOCK 6MM | 17 | 92017-014 | 1 | ||
| HOUSING ASSY,CONT,L.H | 18 | 46091-1048 | 1 | ||
| SCREW PAN HEAD 5X30 | 19 | 220B0530 | 2 | ||
| SCREW-PAN-CROS | 20 | 220B0535 | 1 | ||
| SCREW-PAN-CROS | 21 | 220B0540 | 1 | ||
| REAR VIEW MIRROR,L.H | 22 | 56003-019 | 1 | ||
| REAR VIEW MIRROR,R.H | 23 | 56002-029 | 1 |
| HOLDER-HANDLEBAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT 8X38 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HANDLEBAR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP ASSY,THROTTLE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING ASSY,CONT,R.H | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER,L.H GRIP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,CLUTCH | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 6X25 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW CABLE ADJUST | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CABLE ADUST NUT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH LEVER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING ASSY,CONT,L.H | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X30 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REAR VIEW MIRROR,L.H | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REAR VIEW MIRROR,R.H | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
