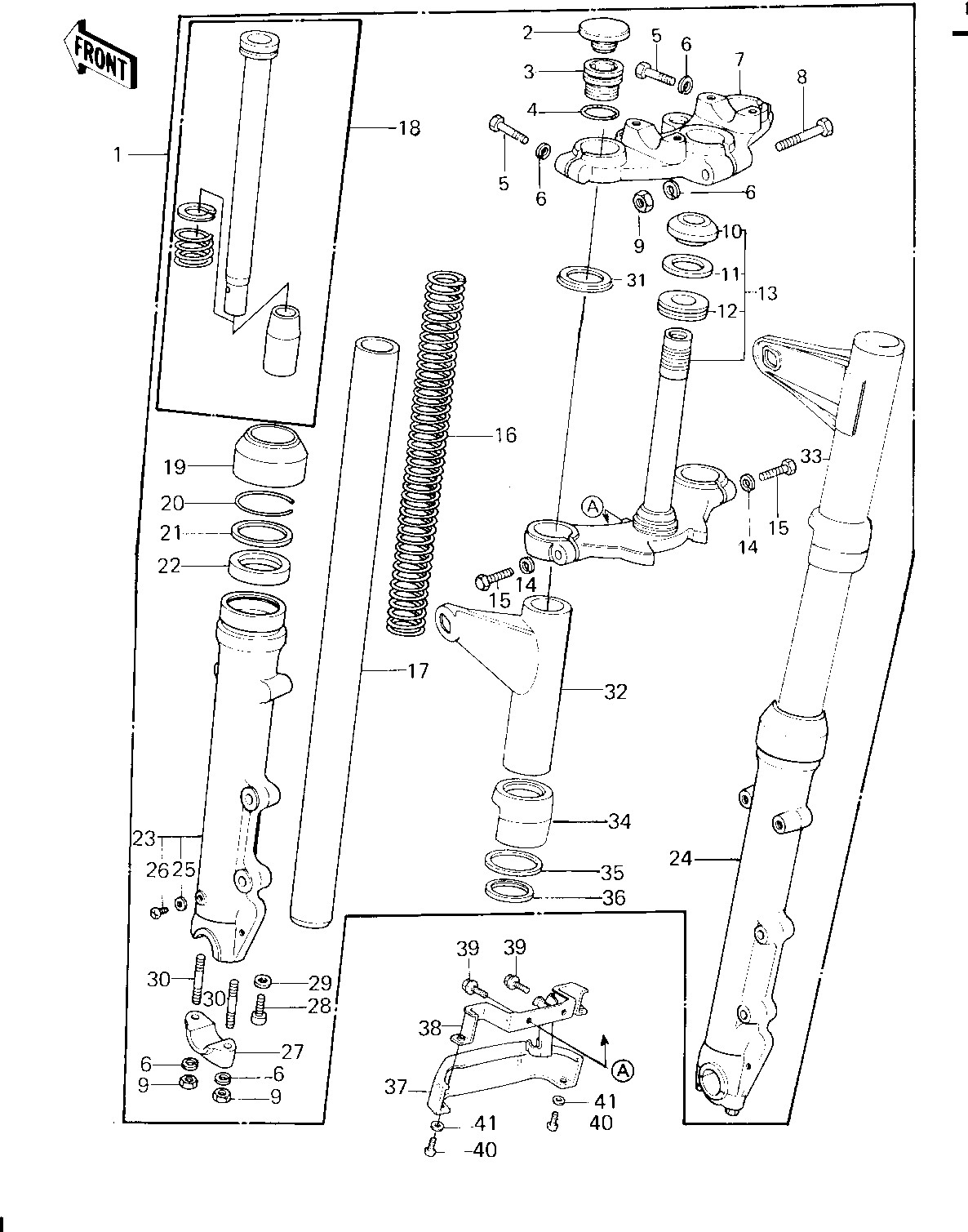

1980 KZ650-F1 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1092 1
CAP,RUBBER 2 11012-1017 2
CAP,FORK SPRING 3 44029-1003 2
"O" RING,FORK TOP 4 92055-1009 2
BOLT-HEX HEAD.8M/M 5 44041-045 2
WASHER SPRING 8MM 6 461F0800 7
HEAD,STEERING STEM 7 44039-076 1
BOLT-STEERING STEM HD 8 44041-042 1
NUT,LOCK,8MM 9 92015-1124 5
CONE,STEERING STEM 10 92047-012 1
WASHER,PLAIN 11 92022-231 1
OIL SEAL,STEERING STM 12 92056-003 1
STEM,STEERING 13 44037-107 1
WASHER SPRING 12MM 14 461F1200 2
BOLT-HEX HEAD,12X36 15 92003-064 2
SPRING,FORK 16 44026-1040 2
TUBE,FORK INNER 17 44013-1027 2
CYLINDER-FORK 18 44022-1011 2
DUST SHEILD,FORK 19 44010-032 2
CIRCLIP-OIL SEAL FIT 20 44044-012 2
WASHER-OIL SEAL FIT 21 44043-044 2
SEAL-OIL,FORK OUTER P 22 92049-1216 2
TUBE,LH,FORK OUTER 23 44005-1031 1
TUBE,RH,FORK OUTER 24 44006-1031 1
GASKET FORK DRAIN PLG 25 44045-002 2
SCREW PAN HEAD 4X8 26 220B0408 2
HOLDER,FRONT AXLE 27 44063-014 2
BOLT-FORK CYLINDER 28 44041-040 2
GASKET,FORK CYLINDER 29 44045-057 2
STUD,8X35 30 92004-1009 4
WASHER,FORK COVER 31 44064-005 2
COVER,L.H.-FORK 32 44033-1017 1
COVER,R.H,FORK 33 44033-1018 1
GUIDE,FORK COVER 34 44064-025 2
WASHER,FORK COU GUID 35 44064-008 2
GASKET,FORK COVER 36 44045-038 2
COVER,FORK 37 44033-1042 1
BRACKET,FORK COVER 38 11034-1602 1
BELT,FLANGED,6X12 39 131B0612 2
SCREW PAN HEAD 4X10 40 220B0410 2
WASHER PLAIN 4MM 41 410B0400 2
