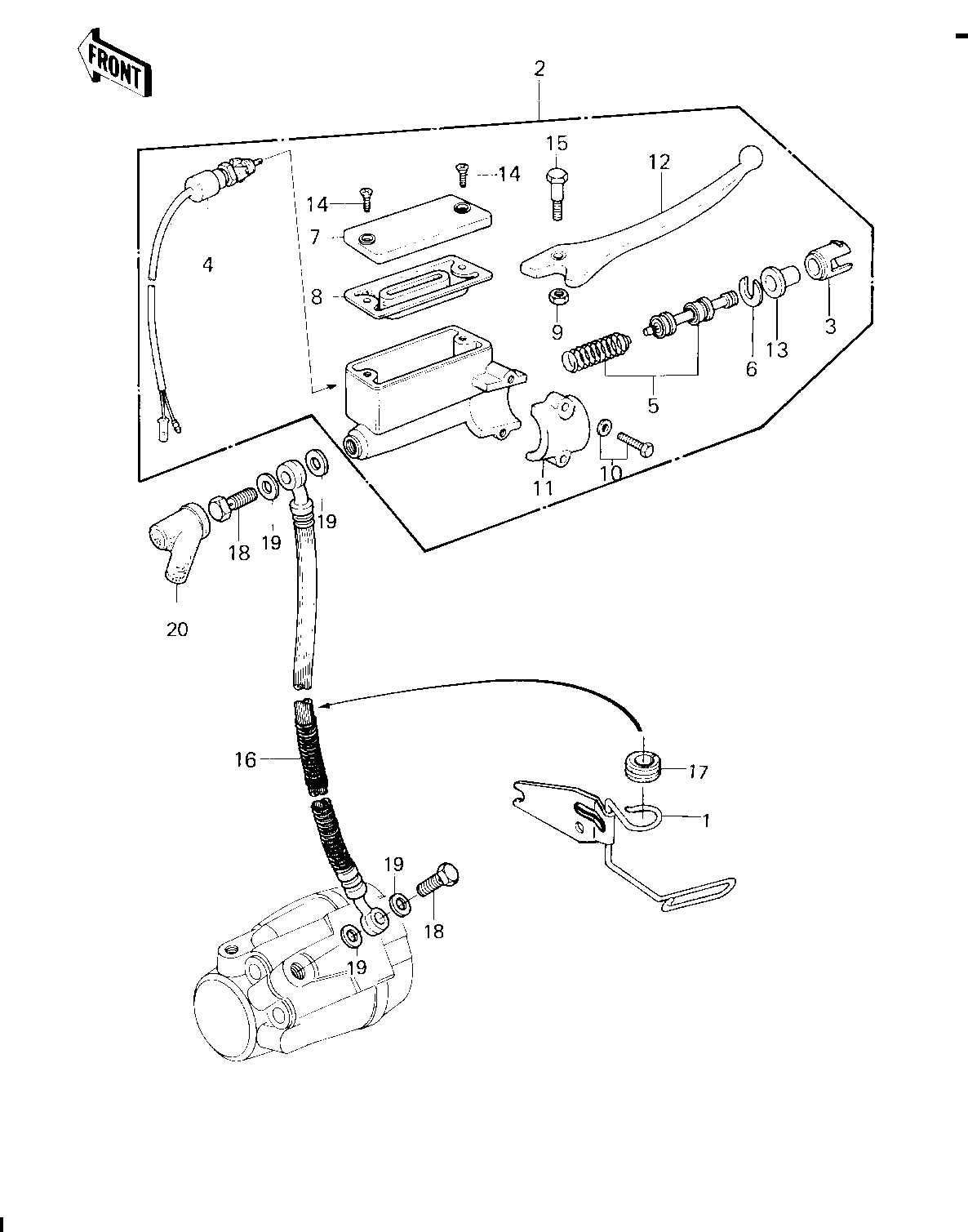

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FRONT BRAKE 1 11034-1468 1
CYLINDER ASSY,MASTER 2 43015-1051 1
LINER,PISTON 3 14008-1007 1
SWITCH,BRAKE 4 27010-1028 1
PISTON-COMP-BRAKE 5 43020-1027 1
STOPER,PISTON 6 43022-1001 1
CAP,OIL CUP 7 43026-1006 1
DIAPHRAGM 8 43028-1008 1
NUT 6MM 9 312B0600 1
BOLT,HEX HEAD,6X25 10 43033-003 2
HOLDER,MASTER CYLINDR 11 43034-1001 1
LEVER,FRONT BRAKE 12 46092-1010 1
DUST COVER 13 49016-1010 1
SCREW,COUNTERSUNK HED 14 92001-1055 2
BOLT,CLUTCH LEV FITT 15 92001-1056 1
HOSE,BRAKE,L=830 16 43059-1048 1
DAMPER RUBBER,CYL HSE 17 43064-006 1
BOLT,OIL,L=23 18 92002-1888 2
WASHER-OIL BOLT 19 43067-001 4
BOOT,DUST 20 49006-1041 1
