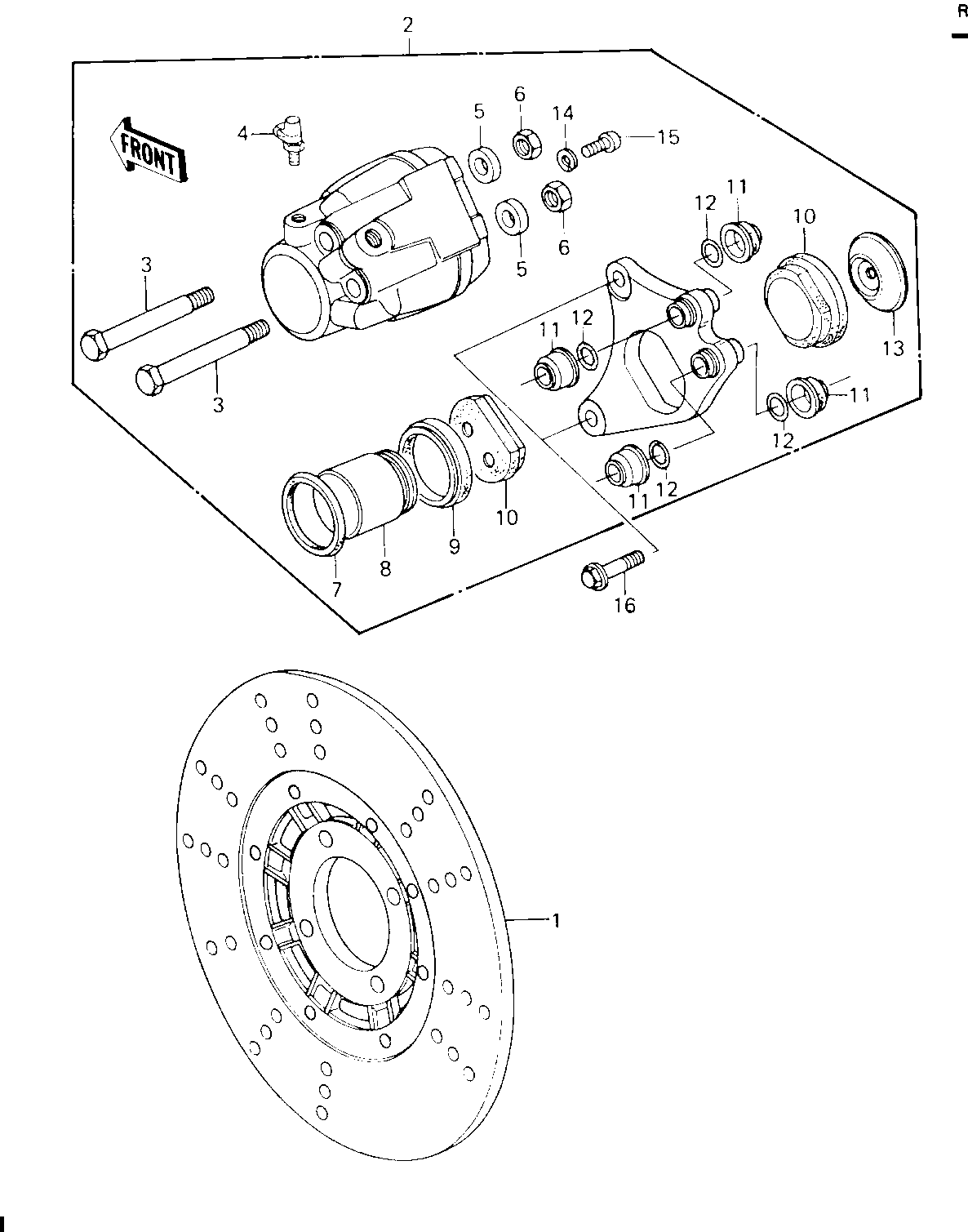

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC PLATE,FRONT BRAK 1 41080-1022 1
CALIPER ASSY,L.H, 2 43041-1024 1
BOLT 3 43045-006 2
BLEEDER SET 4 43085-001 1
PLUG 5 43088-002 2
NUT 10MM 6 315B1000 2
RING,PISTON SEAL 7 43049-002 1
PISTON,BRAKE,42M/M 8 43020-1012 1
DUST SEALD,RUBBER 9 43054-003 1
PAD SET 10 43082-1001 1
DUST SHILD,SHAFT 11 43052-005 4
"0" RING 12 43053-006 4
SPACER 13 43040-004 1
WASHER SPRING 6MM 14 461F0600 1
SCREW PAN HEAD 6X12 15 220B0612 1
BOLT,HEX HEAD,10X38 16 92001-1293 2
