Part Item Information

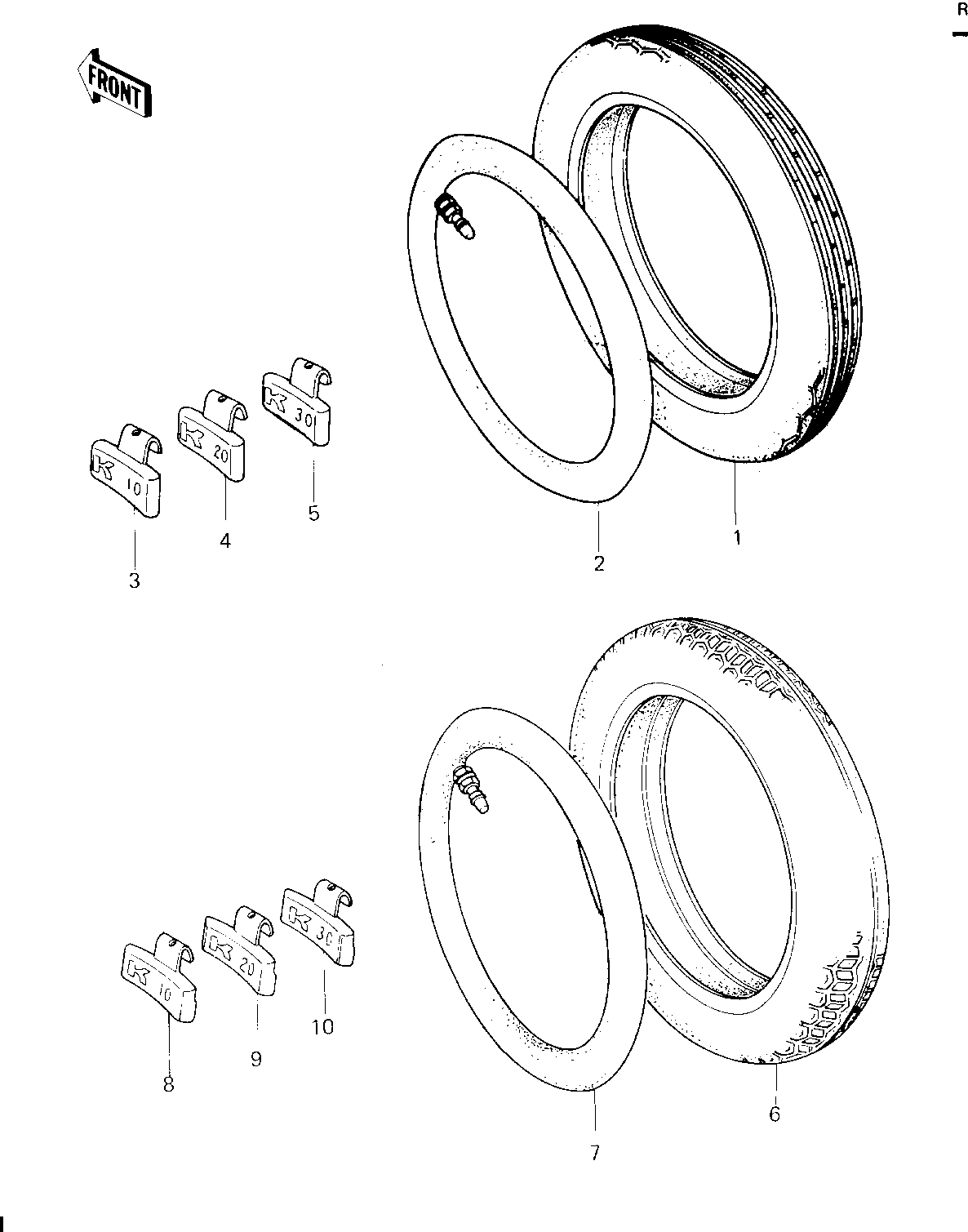

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 325H-19 F6B F 1 41021-038 1
*** N.L.A.*** (Canada) 2 41022-030 1
BALANCER-WHEEL,10G 3 41075-1011 AR
BALANCER-WHEEL,20G 4 41075-1012 AR
BALANCER-WHEEL,30G 5 41075-1013 AR
TIRE 400H-18 K87 R 6 41021-039 1
TUBE 350/375/410-18 7 41022-031 1
BALANCER-WHEEL,10G 8 41075-1011 AR
BALANCER-WHEEL,20G 9 41075-1012 AR
BALANCER-WHEEL,30G 10 41075-1013 AR
