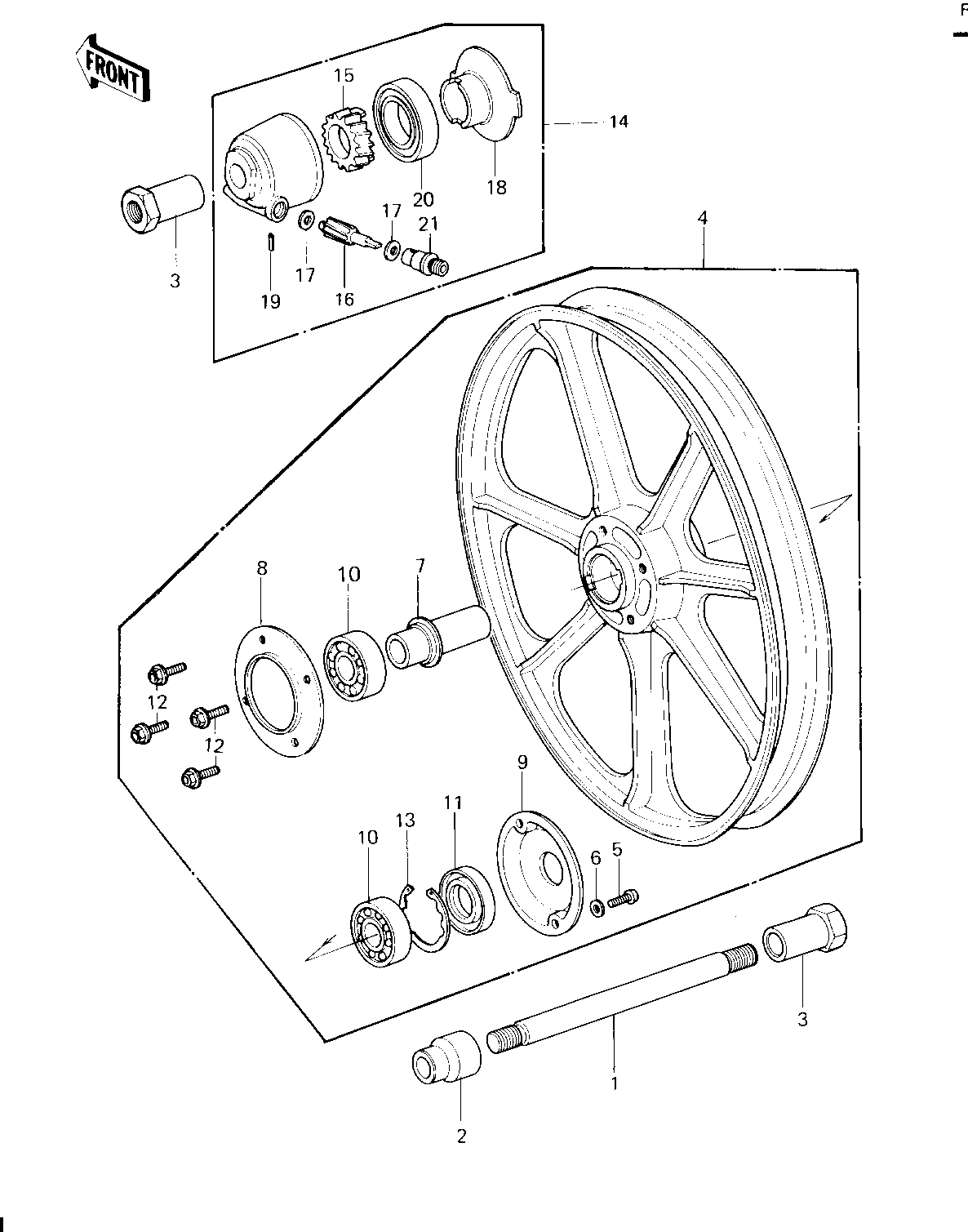

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FRONT 1 41068-049 1
COLLAR,FRONT AXLE 2 41069-032 1
COLLAR,FRONT AXLE 3 41069-033 2
SOLID WHEEL ASSY,FR 4 41073-1058 1
SCREW PAN HEAD 5X12 5 220B0512 2
WASHER PLAIN 5MM 6 410B0500 2
COLLAR,BRG 7 41039-028 1
DUST COVER 8 41042-014 1
DUST COVER 9 41042-016 1
BALL BEARING,#6203ZC3 10 601B6203Z 2
OIL SEAL 11 654A254008 1
BOLT,HEX HEAD,10X30 12 92001-1173 4
RING, SNAP,43.5M/M 13 92033-1040 1
GEAR BOX ASSY,SPEEDO 14 41078-1012 1
GEAR,SPEEDOMETER 15 41059-026 1
PINION,SPEEDOMETER 16 41060-017 1
WASHER THRST SPD PINI 17 41063-001 2
RECEIVER,GEAR 18 41064-013 1
PIN,SPRING 19 41082-001 1
OIL SEAL,BJN30427-C3 20 92049-1057 1
BUSHING,SPEEDOMET CBL 21 92028-1066 1
