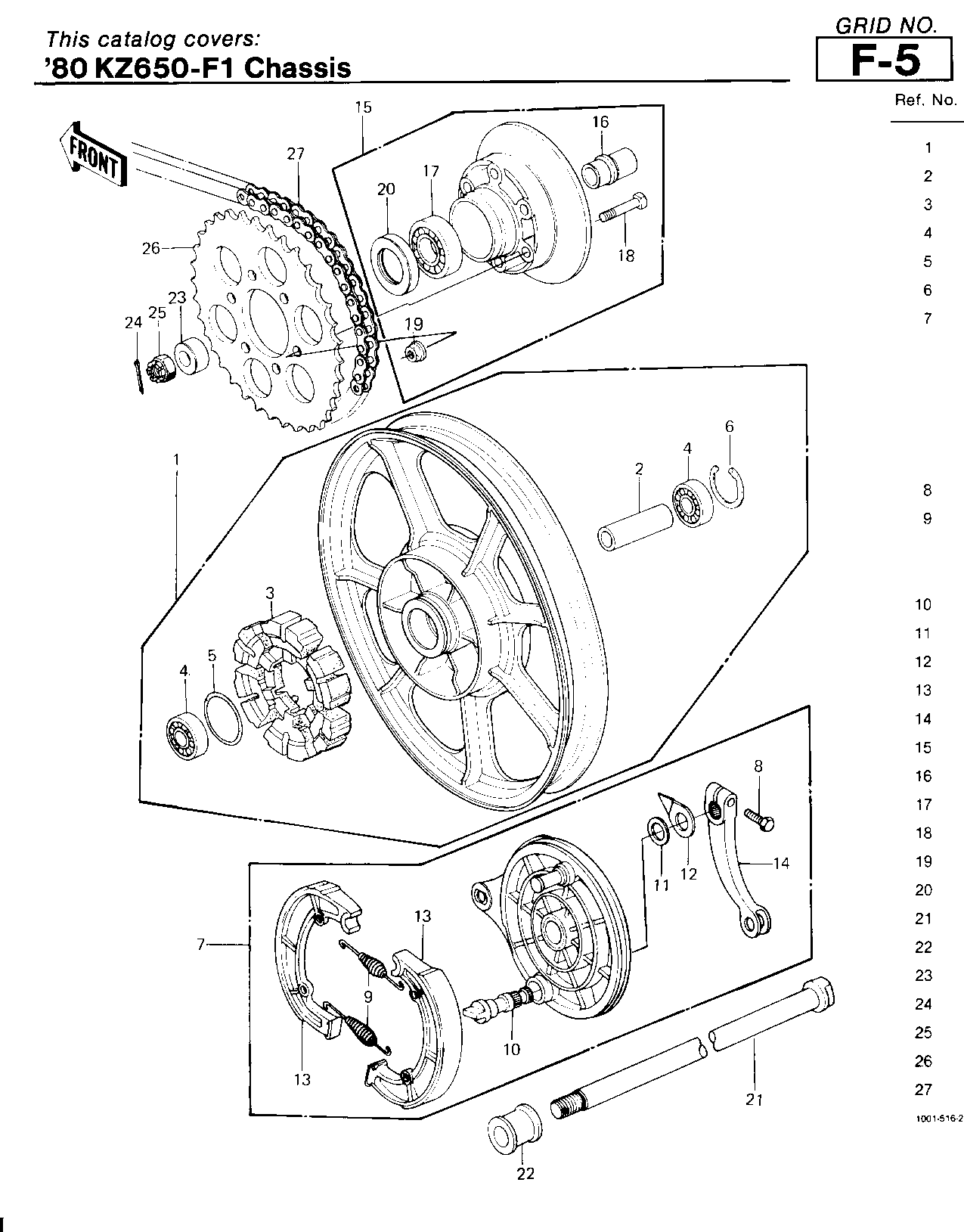

1980 KZ650-F1 - REAR WHEEL/HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SOLID WHEEL ASSY, RR 1 41073-1103 1
SPACER, REAR HUB BEARING 2 42010-033 1
DAMPER,REAR HUB SHOCK 3 42014-026 1
BRG,BALL,#6303ZZC3 4 601B6303ZZ 2
"0" RING,55MM 5 671B2555 1
CIRCLIP,47M/M 6 92033-1042 1
PANEL-ASY,RR BRK 7 41035-1056 1 F/NO. 000001~002240
PANEL-ASY,RR BRK 7 41035-1056 AL F/NO. 000001~002240
PANEL-ASY,BRK BLACK 7 41035-1055 1 F/NO. 002241~007063
PANEL-ASY,BRK BLACK 7 41035-1055 AL F/NO. 002241~007063
BOLT HEX HEAD 8X28 8 114G0828 1
SPRING,BRAKE SHOE 9 41049-012 2
SPRING,BRAKE SHOE 9 41049-012 2
CAM SHAFT,BRAKE 10 41050-017 1
DUST SHIELD-BRAKE CAM 11 41051-003 1
INDICATOR,BRAKE SHOE 12 41085-004 1
SHOE,BRAKE 13 42019-012 2
LEVER REAR BRAKE CAM 14 42029-039 1
COUPLING ASSY,REAR HB 15 42008-032 1
SLEEVE,REAR HUB COUPL 16 42036-026 1
BEARING BALL #6305 17 601B6305 1
BOLT-REAR SPROCKET 18 92003-087 6
NUT,10MM 19 92015-1415 6
OIL,SEAL,#38629 20 92050-076 1
AXLE,RR 21 41068-1086 1
COLLAR REAR AXLE 22 42032-017 1
COLLAR,REAR AXLE,L.H. 23 42032-067 1
PIN-COTTER,4.0X35 24 550D4035 1
NUT CASTLE,16MM 25 92015-055 1
REAR SPROCKET 50T 26 42041-065 1
CHAIN-EX50MV-0X102L 27 92057-1232 1
