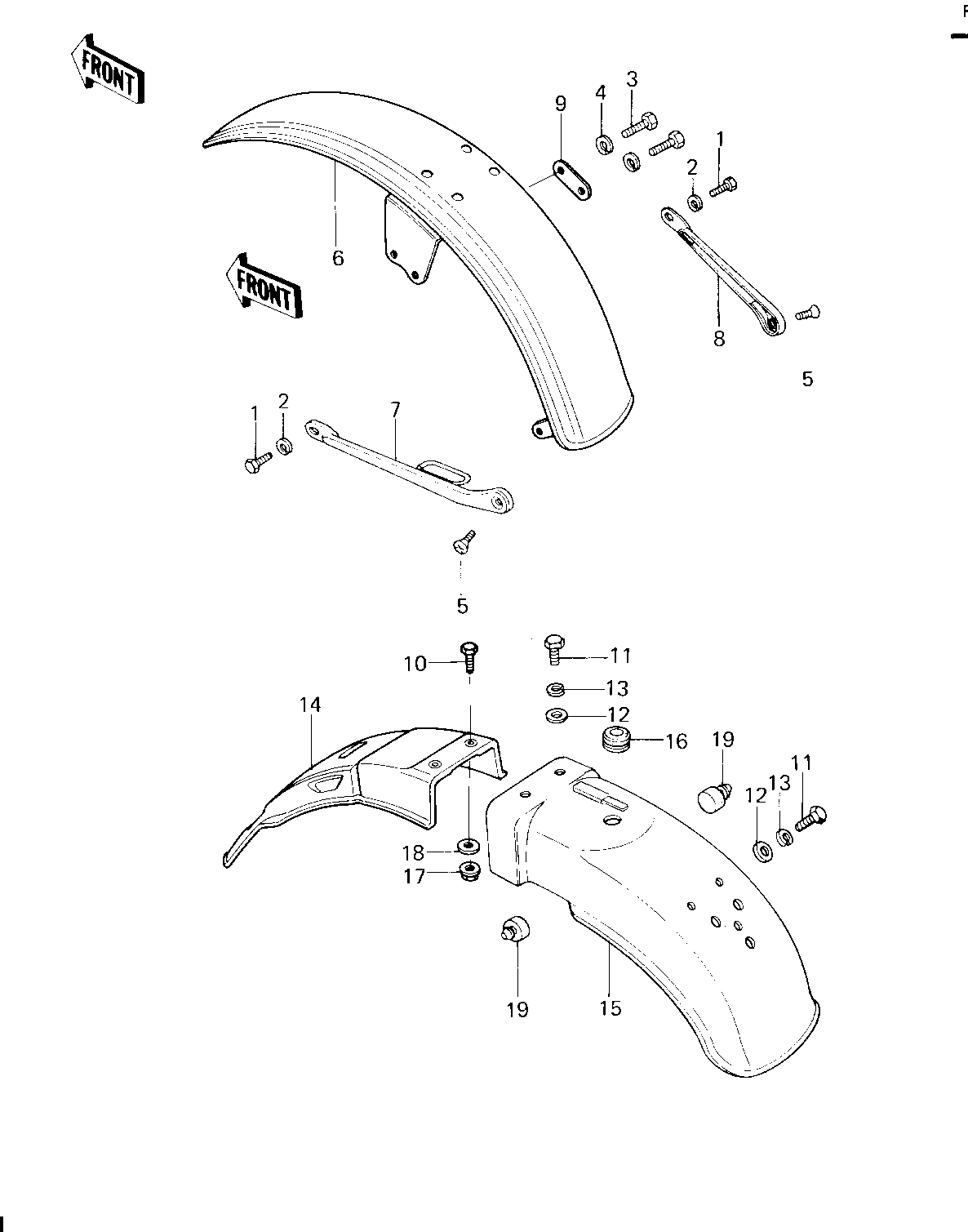

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X12 1 112G0612 2
WASHER SPRING 6MM 2 461F0600 2
BOLT-SMALL-UPSET,8X16 3 115G0816 4
WASHER SPRING 8MM 4 461F0800 4
SCREW,OVL CNTSNK,6X16 5 222E0616 2
FENDER-FR 6 35001-1017 1
STAY,FRONT FENDER,L.H 7 35011-1001 1
STAY,FRONT FENDER,R.H 8 35011-1002 1
SPACER,FRONT FENDER 9 92026-1008 1
BOLT-UPSET,6X16 10 112G0616 2
BOLT-UPSET 6X14 11 112B0614 4
WASHER PLAIN 6MM 12 410B0600 4
WASHER SPRING 6MM 13 461F0600 4
FENDER-RR 14 35022-1046 1
FENDER-RR 15 35022-153 1
GROMMET HARNESS 10MM 16 92071-019 1
NUT-6MM 17 92015-1078 2
WASHER 6.5X20X1.6T 18 92022-125 2
DAMPER RUBBER,RR FEND 19 92075-135 2
