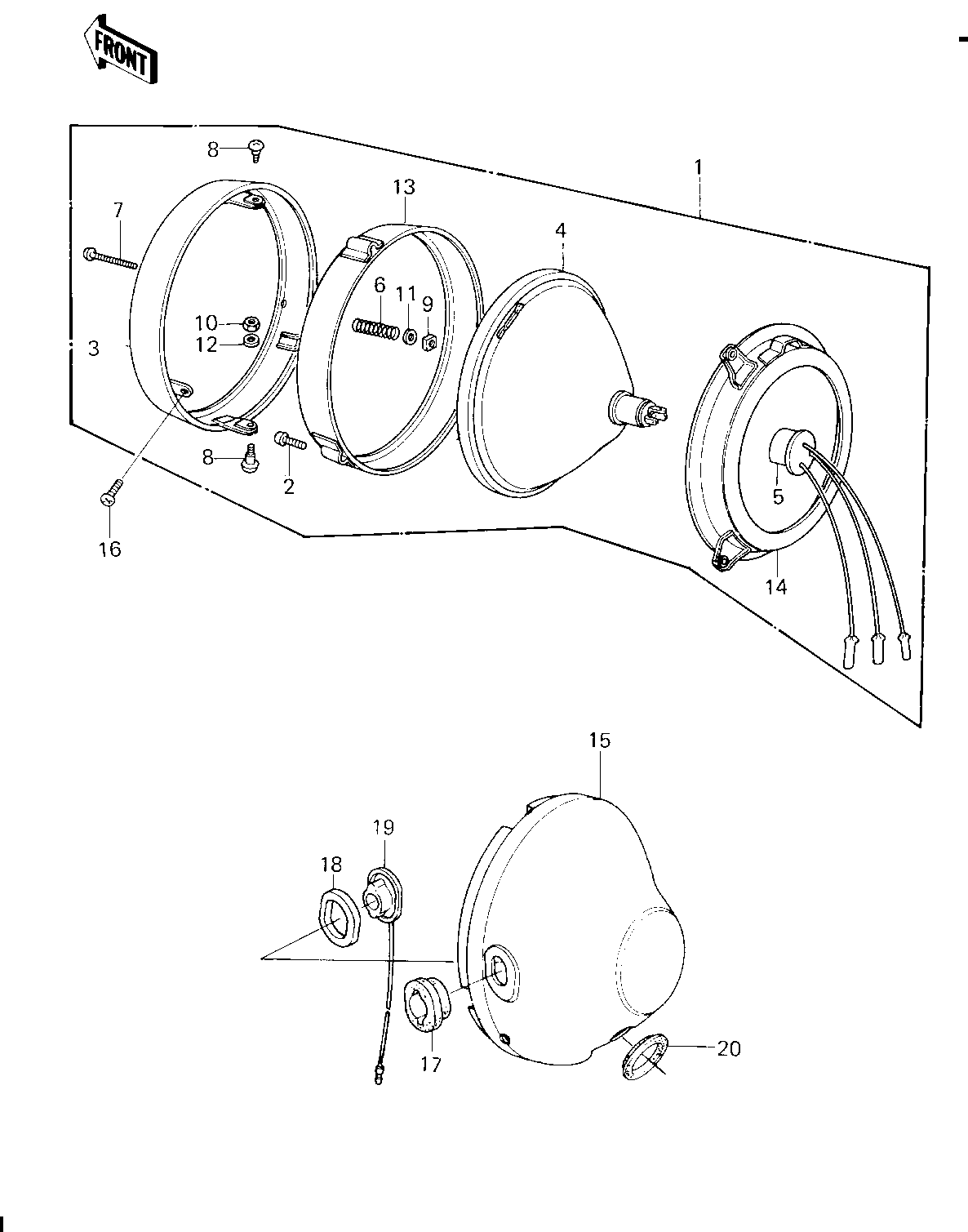

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT,HEAD 1 23003-017 1
SCREW PAN HEAD 3X12 2 220B0312 2
RIM,HEAD LAMP 3 23006-038 1
SEALD BEAM UNIT 4 23007-041 1
SOCKET ASSY,HEAD LAMP 5 23008-037 1
SPRING FOCUS ADJUST 6 23014-005 1
SCREW FORCUS ADJUST 7 23019-021 1
SCREW-PAN HEAD,5X12 8 23019-023 2
NUT,4MM 9 23020-018 1
NUT,HEAD LAMP RIM FIT 10 23020-023 2
WASHER 11 23021-004 1
WASHER-PLAIN,5MM 12 23021-012 2
RING,HEAD LAMP MOUNT 13 23072-001 1
RING,HEAD LAMP MOUNT 14 23074-001 1
BODY-COMP-HEAD LAMP 15 23005-1015-21 1
SCREW,PAN HEAD,5X14 16 23019-022 2
DAMPER RUBBER 17 23066-015 2
DAMPER RUBBER 18 23066-016 2
COLLAR 19 23076-005 2
GROMMET 20 92071-1008 1
