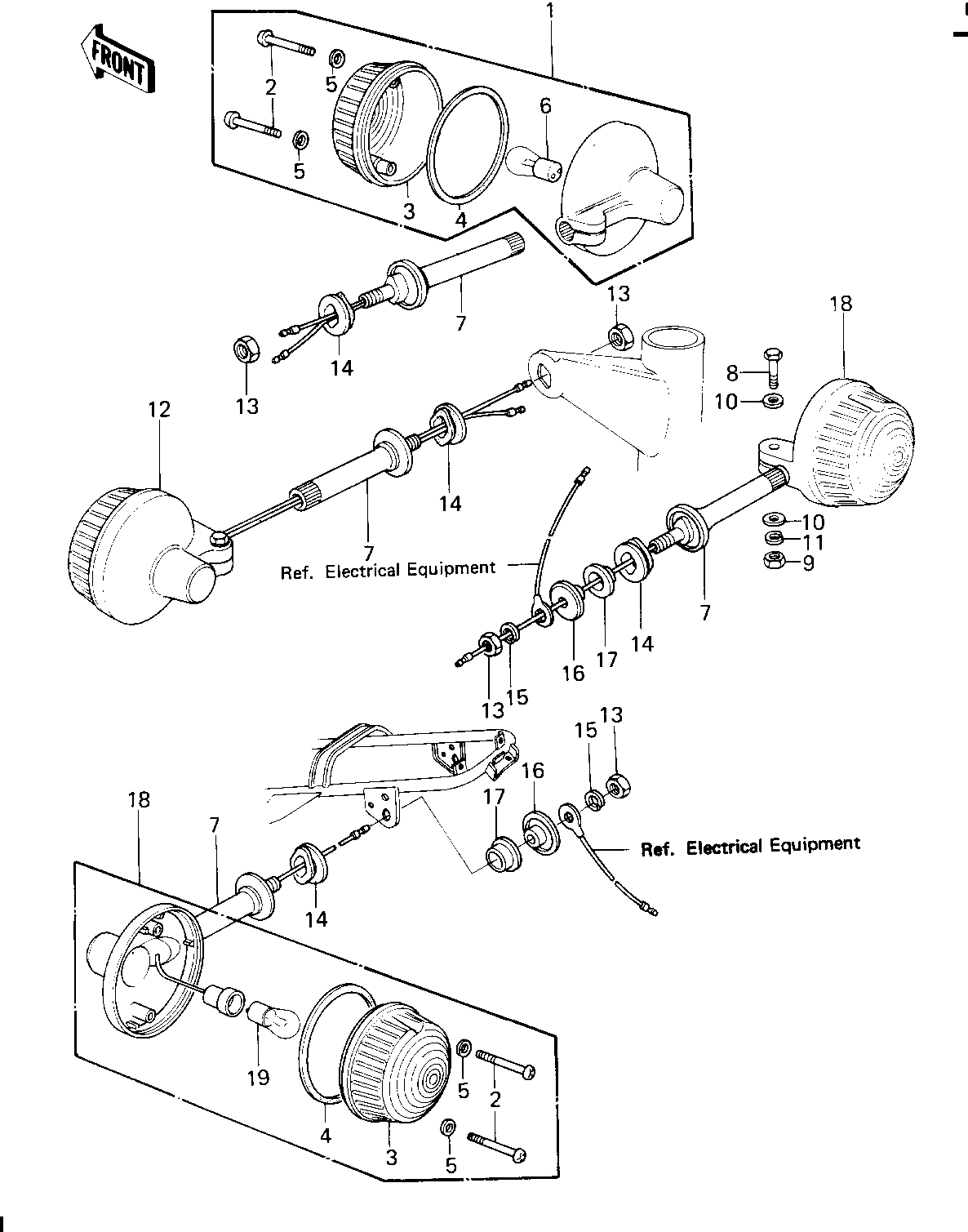

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LIGHT ASSY,TRN SG,R.H 1 23040-1005 1
SCREW-PAN HEAD,4X35 2 220E0435A 8
LENS-SIGNAL LAMP 3 23048-1024 4
GASKET,TURN SIG LAMP 4 23050-002 4
WASHER-PLAIN,4MM 5 23058-002 8
BULB,12V 23/8W 6 92069-060 2
BRACKET,TURN SIGNAL.L 7 23051-053 4
BOLT-UPSET 8 112G0630 4
NUT 6MM 9 311B0600 4
WASHER PLAIN 6MM 10 411B0600 8
WASHER SPRING 6MM 11 461F0600 4
LIGHT ASSY,TRN,SG,L.H 12 23040-1006 1
NUT 10MM 13 315B1000 4
DAMPER RUBBER 14 92075-128 4
WASHER SPRING 10MM 15 461F1000 2
COLLAR 16 92027-147 2
DAMPER RUBBER,SIG LM 17 92075-158 2
LAMP-TURN SIGNAL 18 23040-029 2
BULB 12V 32CP 19 92069-055 2
