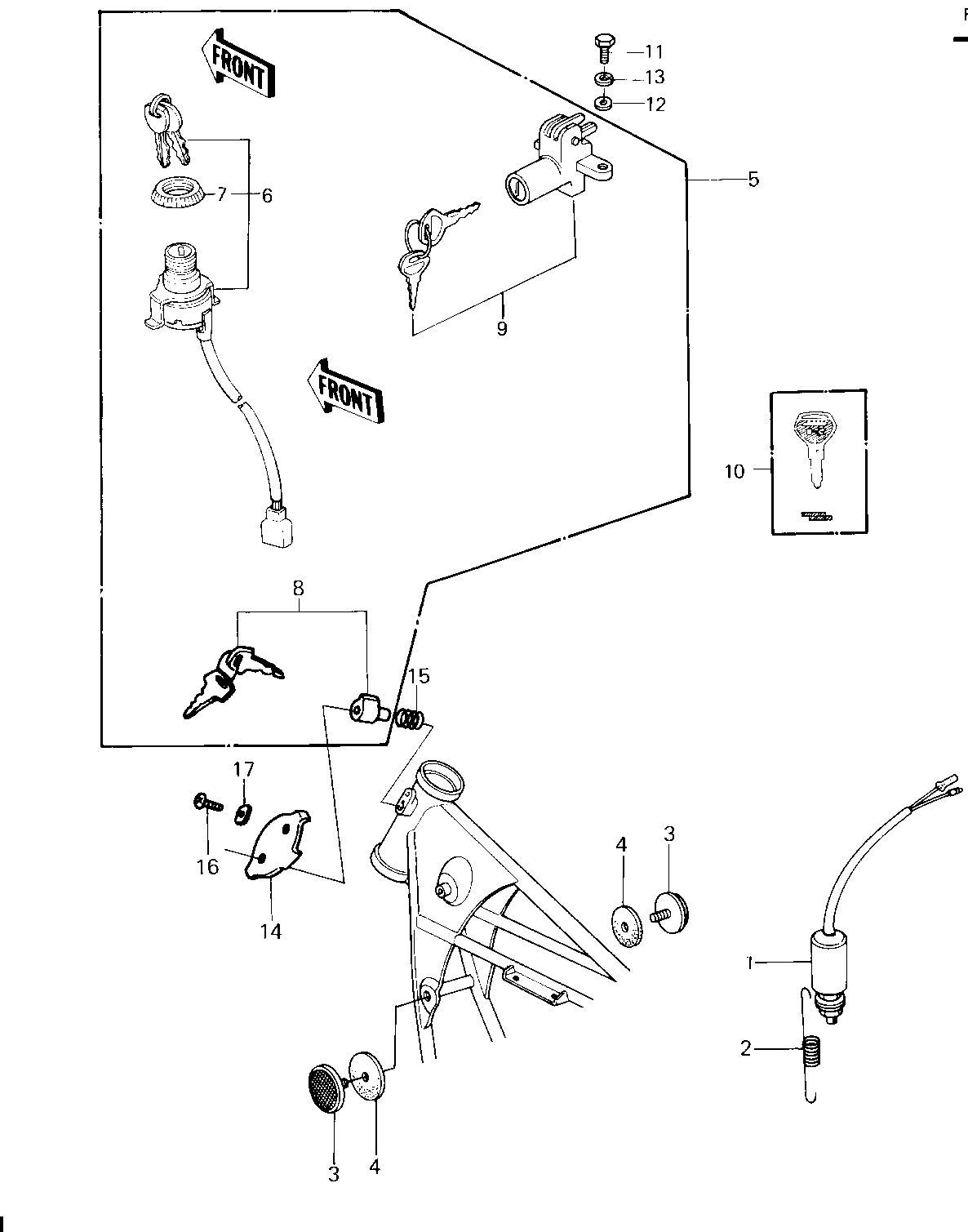

1980 KZ650-F1 - IGNITION SWITCH/LOCKS/REFLECTORS

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-BRAKE LAMP 1 27010-017 1
SPRING BRAKE LAMP SW 2 27011-009 1
REFLECTOR,REFLEX 3 28012-016 2
DAMPER RUBBER,REFLECT 4 92094-011 2
LOCK SET,KZ650B3 5 27004-5020 1
SWITCH ASSY,IGNITION 6 27005-5007 1
NUT,IGNITION SW LOCK 7 27007-004 1
LOCK-ASSY,STEERING 8 27016-5009 1
LOCK-ASSY,SEAT 9 27016-5010 1
KEY-LOCK,BLANK 10 27008-1103 (1
BOLT-UPSET 6X14 11 112B0614 1
WASHER PLAIN 6MM 12 411B0600 1
WASHER SPRING 6MM 13 461F0600 1
CAP,STEERING LOCK 14 11012-1134 1
SPRING-STEERING LOCK 15 27032-001 1
SCREW-TAPPING 16 92008-007 1
WASHER 17 92097-003 1
