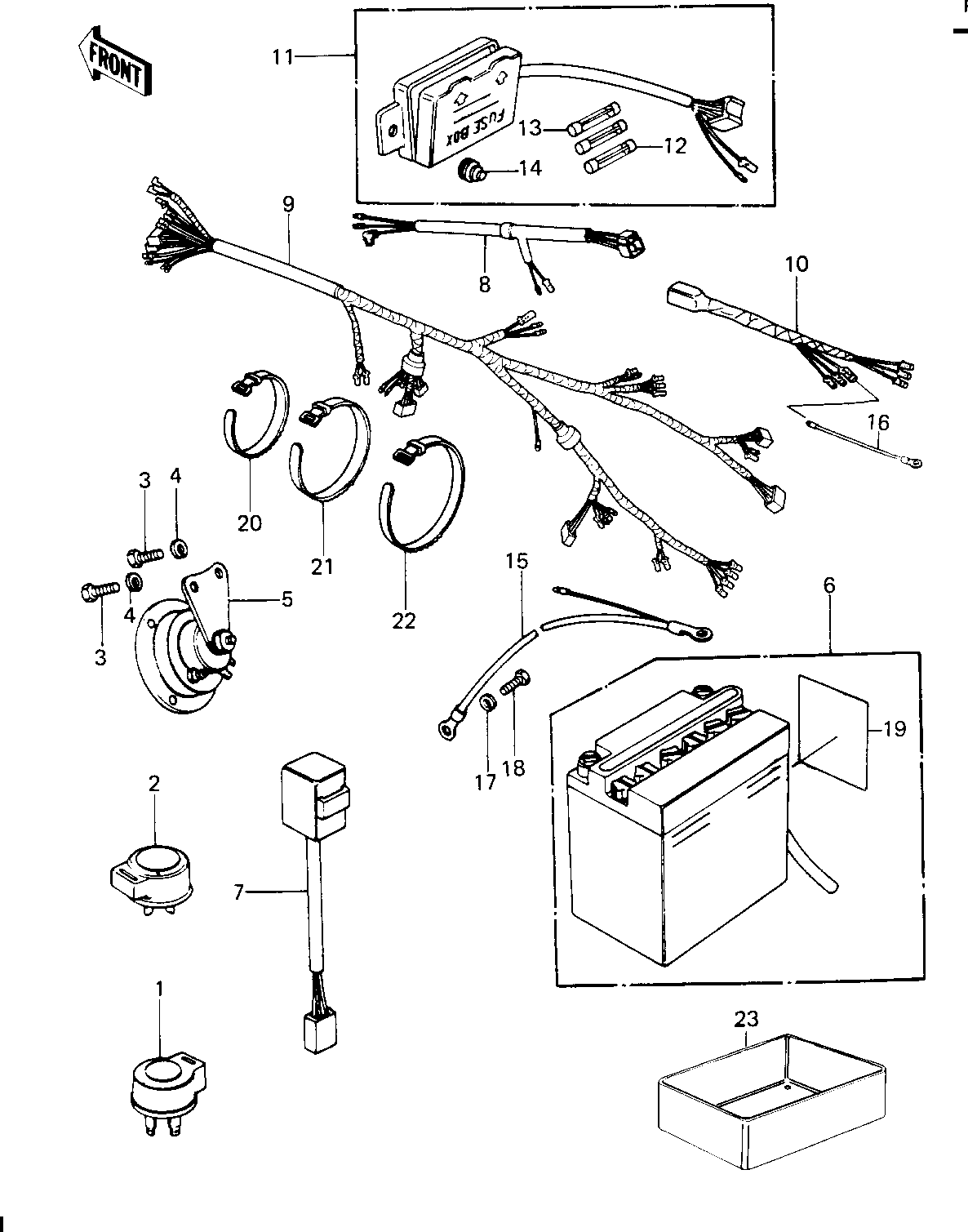

1980 KZ650-F1 - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RELAY-TURN SIGNAL | 1 | 27002-011 | 1 | ||
| RELAY,TURN SIGNAL | 2 | 27002-016 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 3 | 115G0816 | 2 | ||
| WASHER SPRING 8MM | 4 | 461F0800 | 2 | ||
| HORN | 5 | 27003-076 | 1 | ||
| BATTERY 12V11AH W/LA | 6 | 26012-1010 | 1 | ||
| SWITCH,OUTAGE,INDICTR | 7 | 28019-001 | 1 | ||
| HARNESS,CENTER | 8 | 26001-1022 | 1 | ||
| HARNESS,MAIN | 9 | 26001-1131 | 1 | ||
| WIRING HARNESS,REAR | 10 | 26002-063 | 1 | ||
| FUSE ASSY | 11 | 26004-1002 | 1 | ||
| FUSE 10A | 12 | 26006-003 | 3 | ||
| FUSE-20A | 13 | 26006-005 | 2 | ||
| DAMPER RUBBER,FUSE | 14 | 92075-279 | 1 | ||
| WIRE,BATTERY GROUND | 15 | 26010-049 | 1 | ||
| LEAD WIRE,SIGNAL LAMP | 16 | 26011-063 | 2 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 1 | ||
| BOLT,HEX HEAD,6MM | 18 | 92001-137 | 1 | ||
| LABEL-WARNING,BATTERY | 19 | 56040-1036 | 1 | ||
| BAND,SHORT | 20 | 92072-030 | 4 | ||
| BAND,MIDDLE | 21 | 92072-031 | 1 | ||
| BAND,WIRING HARNESS | 22 | 92072-056 | 4 | ||
| CASE,BATTERY | 23 | 32099-015 | 1 |
