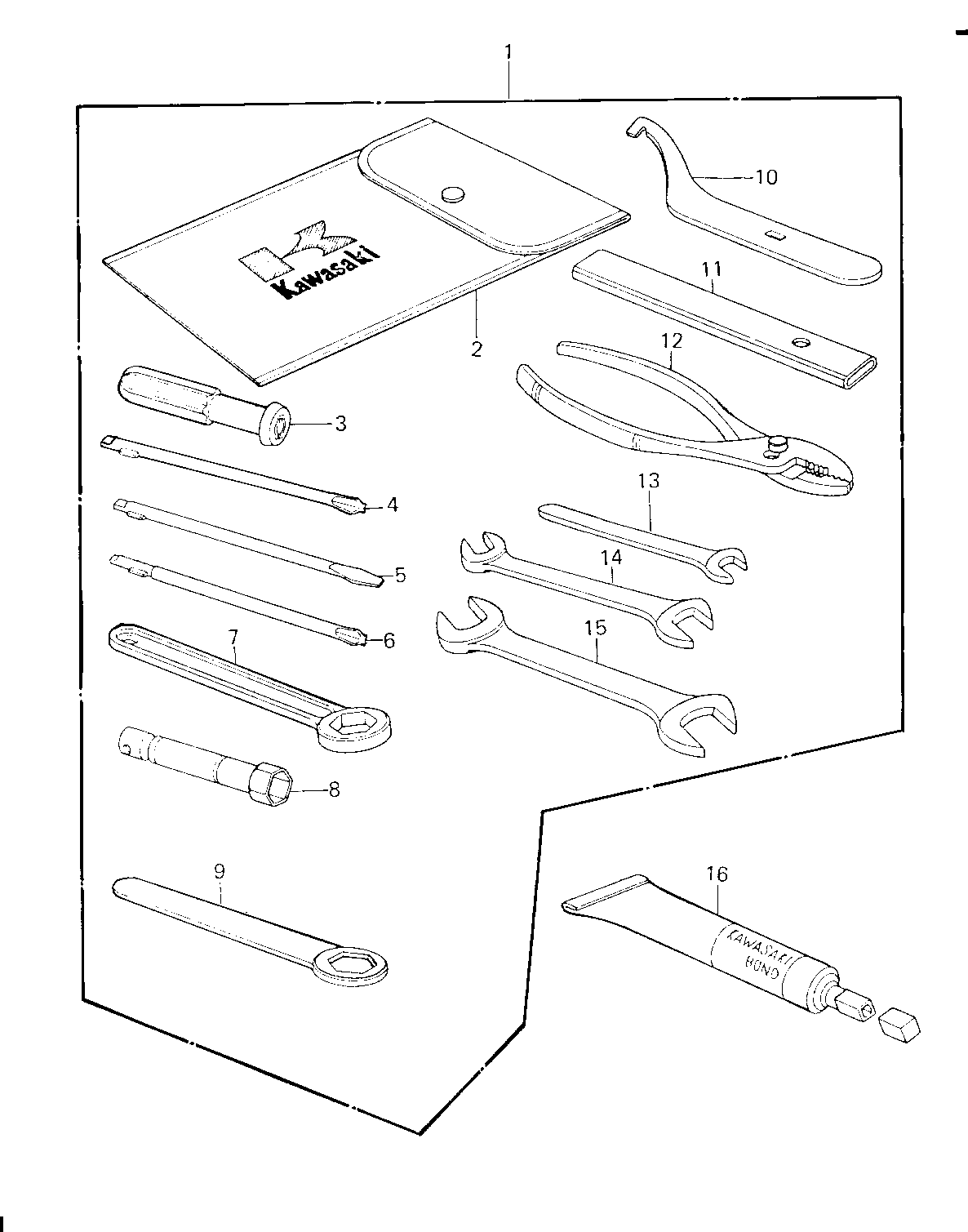

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL KIT 1 56007-1044 1
BAG,TOOL 2 56008-009 1
GRIP,SCREW DRIVER 3 92106-1001 1
TOOL-DRIVER 4 92107-1052 1
92107-1052 (Canada) 5 92107-007 1
92107-1002 (Canada) 6 92107-008 1
TOOL-WRENCH,BOX END,2 7 92110-1147 1
WRENCH,SPARK PLUG 8 92108-008 1
TOOL-WRENCH,BOX END,1 9 92110-1151 1
WRENCH,HOOK,41M/M 10 92110-1034 1
WRENCH,HOOK,41M/M 11 92111-004 1
92112-003 (Canada) 12 92112-005 1
WRENCH,OPEN END,10M/M 13 92110-1031 1
WRENCH,OPEN END,12X13 14 92126-002 1
TOOL-WRENCH,OPEN END, 15 92110-1153 1
LIQUID GASKET 16 92104-002 (1
