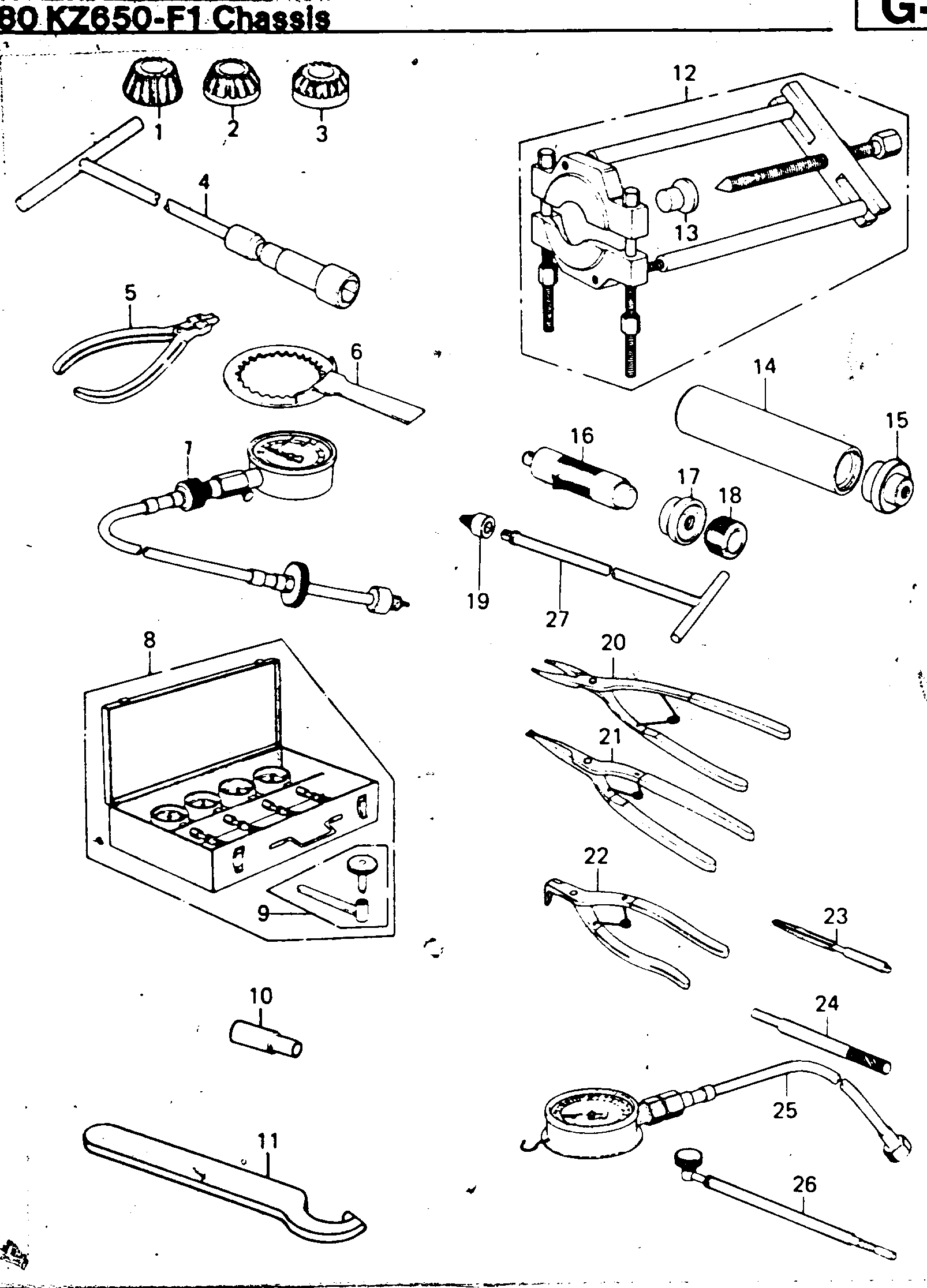

1980 KZ650-F1 - SPECIAL SERVICE TOOLS "A"
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| *** N.L.A.*** (Canada) | 1 | 57001-101 | 1 | ||
| *** N.L.A.*** (Canada) | 2 | 57001-102 | 1 | ||
| *** N.L.A.*** (Canada) | 3 | 57001-104 | 1 | ||
| WRENCH,SPARK PLUG (Canada) | 4 | 57001-110 | 1 | ||
| PLIERS-PISTON RING | 5 | 57001-115 | 1 | ||
| 57001-1243 (Canada) | 6 | 57001-119 | 1 | ||
| *** N.L.A.*** (Canada) | 7 | 57001-123 | 1 | ||
| *** N.L.A.*** (Canada) | 8 | 57001-127 | 1 | ||
| ADJUSTER,THROTLE VALV | 9 | 57001-120 | 1 | ||
| *** N.L.A.*** (Canada) | 10 | 57001-132 | 1 | ||
| 57001-1100 (Canada) | 11 | 57001-134 | 1 | ||
| PULLER,STEM BEARING | 12 | 57001-135 | 1 | ||
| ADAPTER,STEM BEARING | 13 | 57001-136 | 1 | ||
| DRIVER,STEM BEARING | 14 | 57001-137 | 1 | ||
| 57001-1129 (Canada) | 15 | 57001-138 | 1 | ||
| *** N.L.A.*** (Canada) | 16 | 57001-139 | 1 | ||
| 57001-1129 (Canada) | 17 | 57001-140 | 1 | ||
| *** N.L.A.*** (Canada) | 18 | 57001-141 | 1 | ||
| 57001-1011 (Canada) | 19 | 57001-181 | 1 | ||
| PLIERS,CIRCLIP,INSIDE | 20 | 57001-143 | 1 | ||
| PLIERS,CIRCLIP,OUTSID | 21 | 57001-144 | 1 | ||
| PLIERS,CIRCLIP | 22 | 57001-154 | 1 | ||
| REAMER,VALVE GUIDE | 23 | 57001-162 | 1 | ||
| ARBOR,VALVE GUIDE | 24 | 57001-163 | 1 | ||
| GAUGE,OIL PRESSURE | 25 | 57001-164 | 1 | ||
| GAUGE,FUEL LEVEL | 26 | 57001-208 | 1 | ||
| HANDLE,FORK CLY HOLDR | 27 | 57001-183 | 1 |
