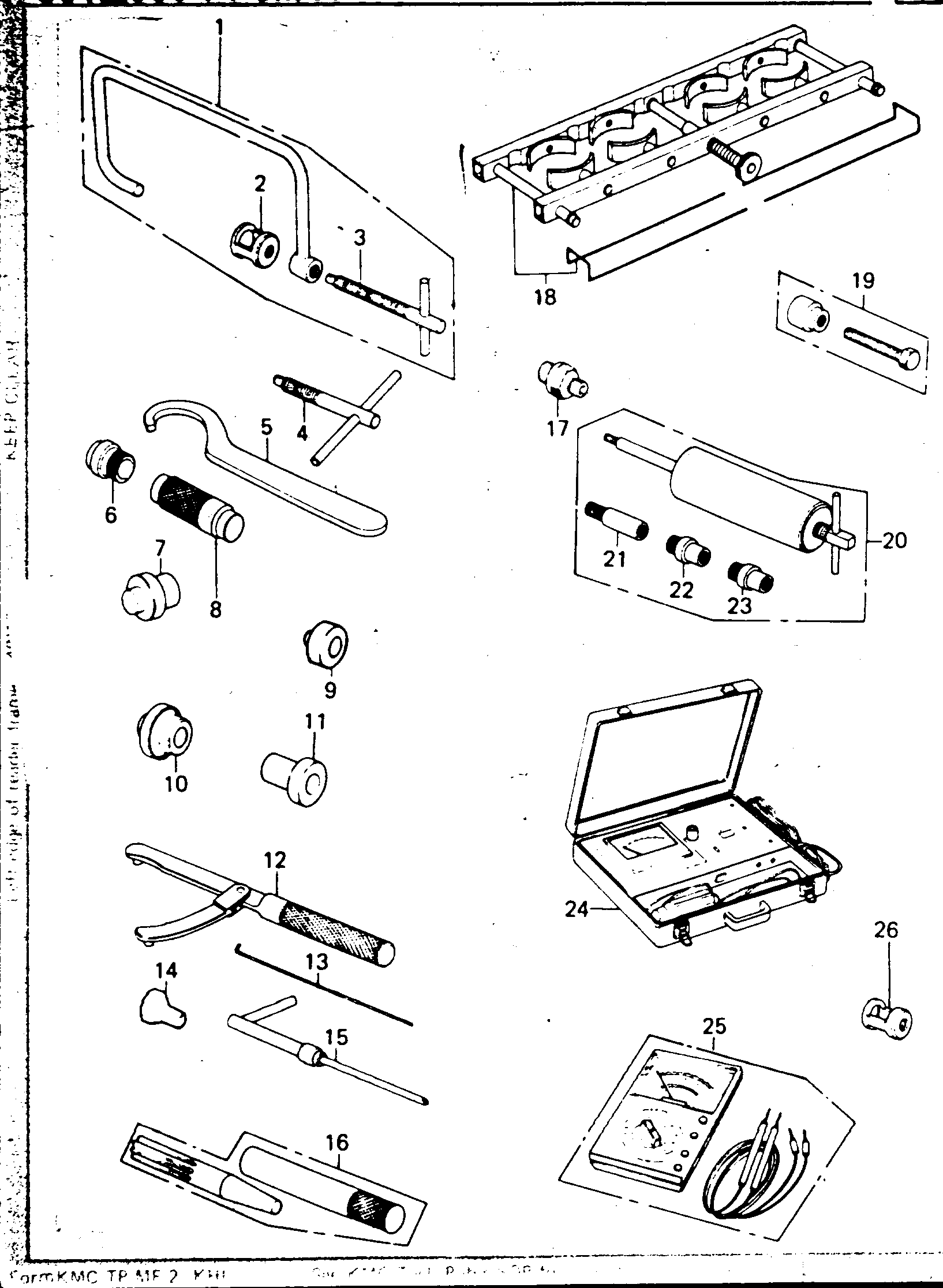

1980 KZ650-F1 - SPECIAL SERVICE TOOLS "B"
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COMPRESSOR,VLV SPRING | 1 | 57001-241 | 1 | ||
| 57001-246 (Canada) | 2 | 57001-242 | 1 | ||
| BOLT,VALVE COMPRESER | 3 | 57001-244 | 1 | ||
| 57001-1216 (Canada) | 4 | 57001-254 | 1 | ||
| HOLDER,DYNAMO ROTOR | 5 | 57001-255 | 1 | ||
| *** N.L.A.*** (Canada) | 6 | 57001-265 | 1 | ||
| GUIDE,SHFT SFT OIL SE | 7 | 57001-266 | 1 | ||
| 57001-1129 (Canada) | 8 | 57001-286 | 1 | ||
| 57001-1129 (Canada) | 9 | 57001-290 | 1 | ||
| *** N.L.A.*** (Canada) | 10 | 57001-296 | 1 | ||
| *** N.L.A.*** (Canada) | 11 | 57001-297 | 1 | ||
| 57001-1343 (Canada) | 12 | 57001-306 | 1 | ||
| *** N.L.A.*** (Canada) | 13 | 57001-309 | 1 | ||
| ADAPTER,2ND GEAR PULR | 14 | 57001-317 | 1 | ||
| ADJUSTER BALANCE | 15 | 57001-351 | 1 | ||
| *** N.L.A.*** (Canada) | 16 | 57001-380 | 1 | ||
| 57001-1278 (Canada) | 17 | 57001-403 | 1 | ||
| COMPRESSOR-PSTN RING | 18 | 57001-531 | 1 | ||
| PUSHER, SECONDARY GEAR | 19 | 57001-535 | 1 | ||
| PULLER-PISTON PIN | 20 | 57001-910 | 1 | ||
| ADAPTER A,PIN PULLER (Canada) | 21 | 57001-912 | (1 | USE FOR KS125 | |
| ADAPTER B, PIN PULLER | 22 | 57001-913 | (1 | USE FOR KS400 | |
| ADAPTER C,PIN PULLER | 23 | 57001-914 | 1 | ||
| *** N.L.A.*** (Canada) | 24 | 57001-980 | 1 | ||
| MULTIMETER | 25 | 57001-983 | 1 | ||
| ADAPTER,VLV COMPRESR | 26 | 57001-243 | 1 |
