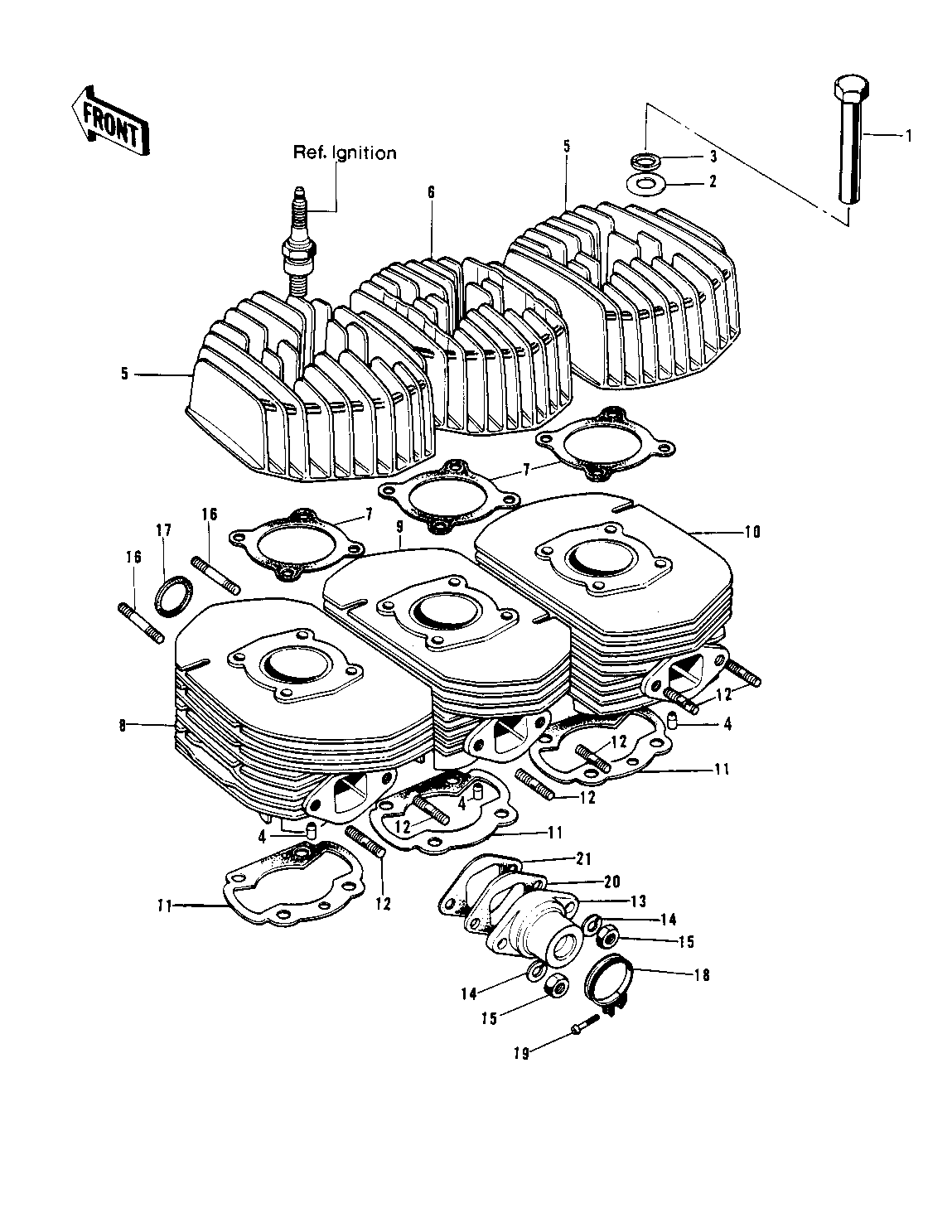

1973 Mach IV - CYLINDER HEADS/CYLINDERS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-CYLINDER HEAD | 1 | 92015-049 | |||
WASHER PLAIN 14MM | 2 | 410B1400 | |||
WASHER SPRING 14MM | 3 | 461F1400 | |||
NOZZLE,OIL METERING | 4 | 92062-008 | |||
CYLINDER HEAD,L.H&R.H | 5 | 11001-066 | H2/A | ||
CYLINDER HEAD,R.H&L.H | 5 | 11001-096-2H | H2-B/C | ||
CYLINDER HEAD,CENTER | 6 | 11001-067 | H2/A | ||
CYLINDER HEAD,CENTER | 6 | 11001-097-2H | H2-B/C | ||
GASKET-CYLINDER HEAD | 7 | 11004-049 | |||
CYLINDER,L.H | 8 | 11005-109 | H2/A | ||
CYLINDER,L.H BARREL | 8 | 11005-128-2H | H2-B/C | ||
CYLINDER,CENTER | 9 | 11005-110 | H2/A | ||
CYLINDER,CENTER BAREL | 9 | 11005-129-2H | H2-B/C | ||
CYLINDER,R.H | 10 | 11005-111 | H2/A | ||
CYLINDER,R.H BARREL | 10 | 11005-130-2H | H2-B/C | ||
GASKET-CYLINDER BASE | 11 | 11009-028 | |||
STUD,8X16 | 12 | 172G0816 | |||
INLET-AIR | 13 | 16060-013 | |||
WASHER SPRING 8MM | 14 | 461F0800 | |||
NUT,8MM | 15 | 311B0800 | |||
STUD,8X25 | 16 | 92004-1008 | |||
GASKET EXHAUST PIPE | 17 | 18067-008 | |||
CLAMP-INLET PIPE | 18 | 92037-061 | |||
SCREW-PAN-CROS | 19 | 220B0535 | |||
INSULATOR-HEAT | 20 | 16061-014 | |||
GASKET-AIR INLET | 21 | 16062-016 |
