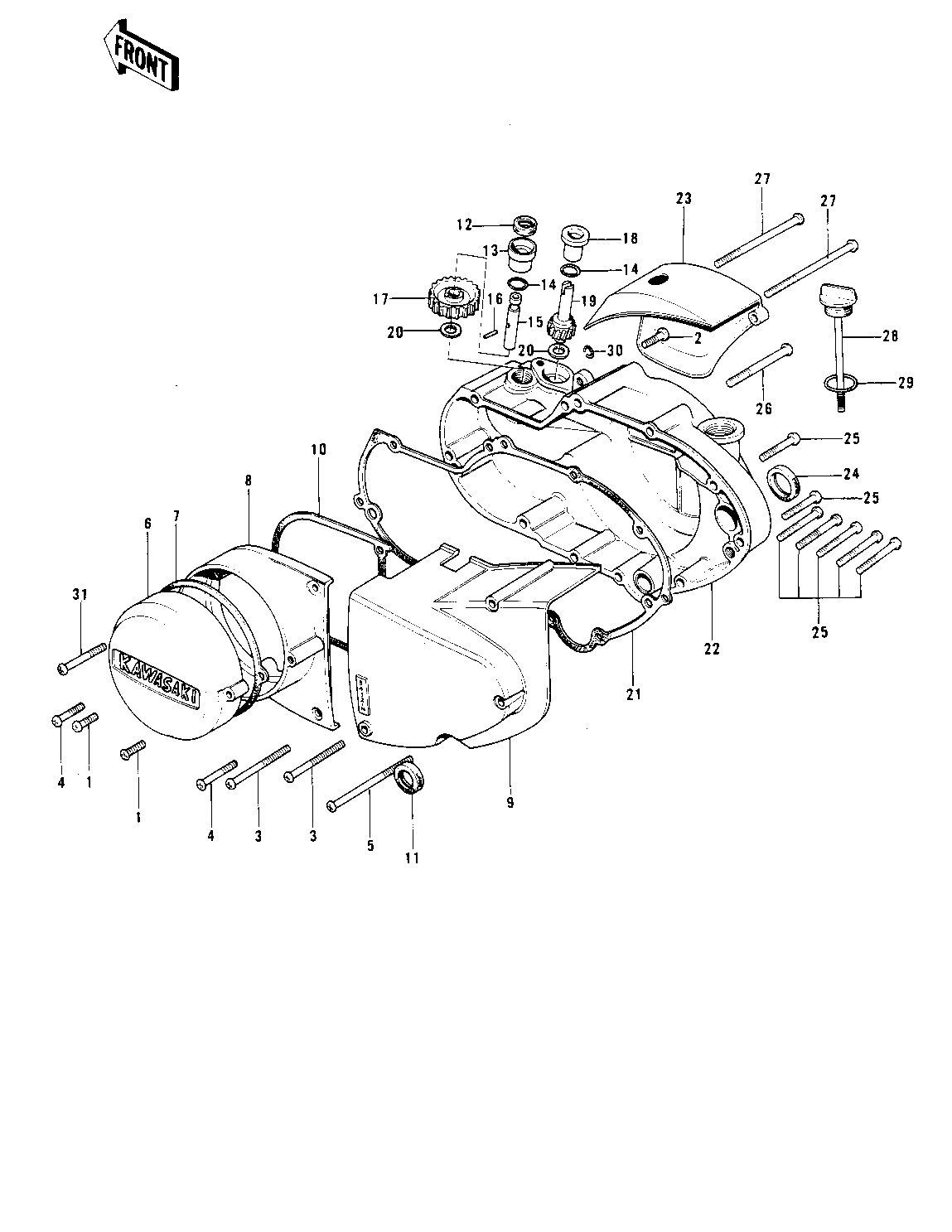

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW PAN HEAD 6X20 | 1 | 220B0620 | |||
SCREW PAN HEAD 6X25 | 2 | 220B0625 | |||
SCREW PAN HEAD 6X55 | 3 | 220B0655 | |||
SCREW PAN HEAD 6X35 | 4 | 220B0635 | |||
SCREW PAN HEAD 6X85 | 5 | 220B0685 | |||
CAP,BREAKER POINT,BUF | 6 | 14027-016-80 | |||
GASKET-POINT CAP | 7 | 14050-005 | H2/A | ||
GASKET,POINT CAP | 7 | 14050-008 | H2-B/C | ||
COVER,L.H ENGINE,BUFF | 8 | 14031-049-80 | |||
COVER,CHN CASE,BUFF | 9 | 14026-024-80 | H2/A | ||
COVER,CHN CASE,BUFF | 9 | 14026-024-80 | H2-B/C | ||
GASKET,L.H ENG COVER | 10 | 14045-022 | |||
OIL SEAL SB12205 | 11 | 92049-004 | |||
OIL SEAL | 12 | 92054-004 | |||
BUSH | 13 | 92028-075 | |||
"0" RING | 14 | 92055-025 | |||
SHAFT TACHOMETER GEAR | 15 | 13226-004 | |||
PIN,DOWEL | 16 | 92042-035 | |||
GEAR TACHOMETER | 17 | 13224-005 | |||
BUSH | 18 | 92028-074 | |||
GEAR OIL PUMP | 19 | 16085-011 | |||
WASHER THRUST | 20 | 92026-026 | |||
GASKET-R.H ENGINE COV | 21 | 14046-021 | |||
COVER,R.H ENGINE,BUFF | 22 | 14032-098-80 | H2/A | ||
COVER,R.H ENGINE,BUFF | 22 | 14032-098-80 | H2-B/C | ||
COVER OIL PUMP | 23 | 14030-033-80 | |||
OIL SEAL SB20285 | 24 | 92049-012 | |||
SCREW PAN HEAD 6X30 | 25 | 220B0630 | |||
SCREW PAN HEAD 6X60 | 26 | 220B0660 | |||
SCREW PAN HEAD 6X100 | 27 | 220B06100 | |||
PLUG OIL FILLER | 28 | 16115-002 | |||
"0" RING,20MM | 29 | 670B2020 | |||
CIRCLIP SELD BEM FIT | 30 | 482K4000 | |||
SCREW PAN HEAD 6X45 | 31 | 220B0645 |
