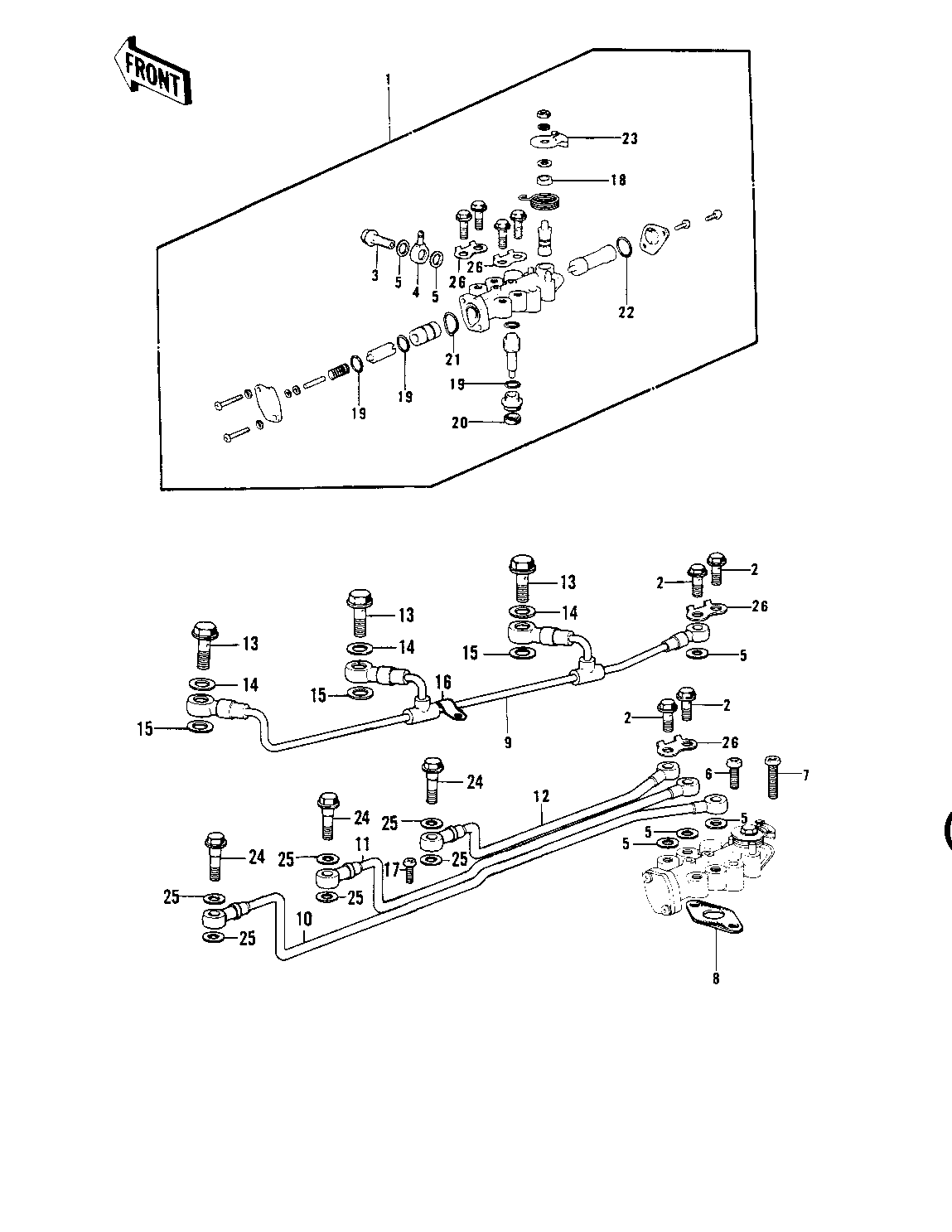

1973 Mach IV - OIL PUMP (H2-B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL PUMP ASSY 1 16082-053 H2-B
OIL PUMP ASSY 1 16082-060 H2-C
BOLT BANJO 2 92060-008
BOLT BANJO 3 92060-009
CONNECTOR BANJO 4 92061-015
WASHER OIL PUMP BANJO 5 92022-077
SCREW-PAN-CROS 6 220B0514
SCREW PAN CROSS,5X28 7 220B0528
GASKET,OIL PUMP 8 11060-1160
PIPE,OIL 9 16134-023
PIPE,L.H OIL 10 16134-024
PIPE,CENTER OIL 11 16134-025
PIPE,R.H OIL 12 16134-026
BOLT-BANJO,CR 13 92060-010-79
GASKET CHECK VALVE 14 92065-058
GASKET CHECK VALVE 15 92065-023
HOLDER OIL PIPE 16 16068-004
SCREW PAN HEAD 6X10 17 220B0610
SEAL-OIL,CAMSHAFT,"X" 18 92049-1294
"0" RING,OIL PUMP SHT 19 16090-002
OIL SEAL OIL PUMP SHT 20 16091-001
"0" RING,UPPER CAP 21 16088-002
"0" RING,LOWER CAP 22 16090-003
LEVER-OIL PUMP CABLE 23 16096-006
BOLT BANJO 24 92060-008
WASHER OIL PUMP BANJO 25 92022-077
WASHER,LOCK,6MM 26 92024-066
