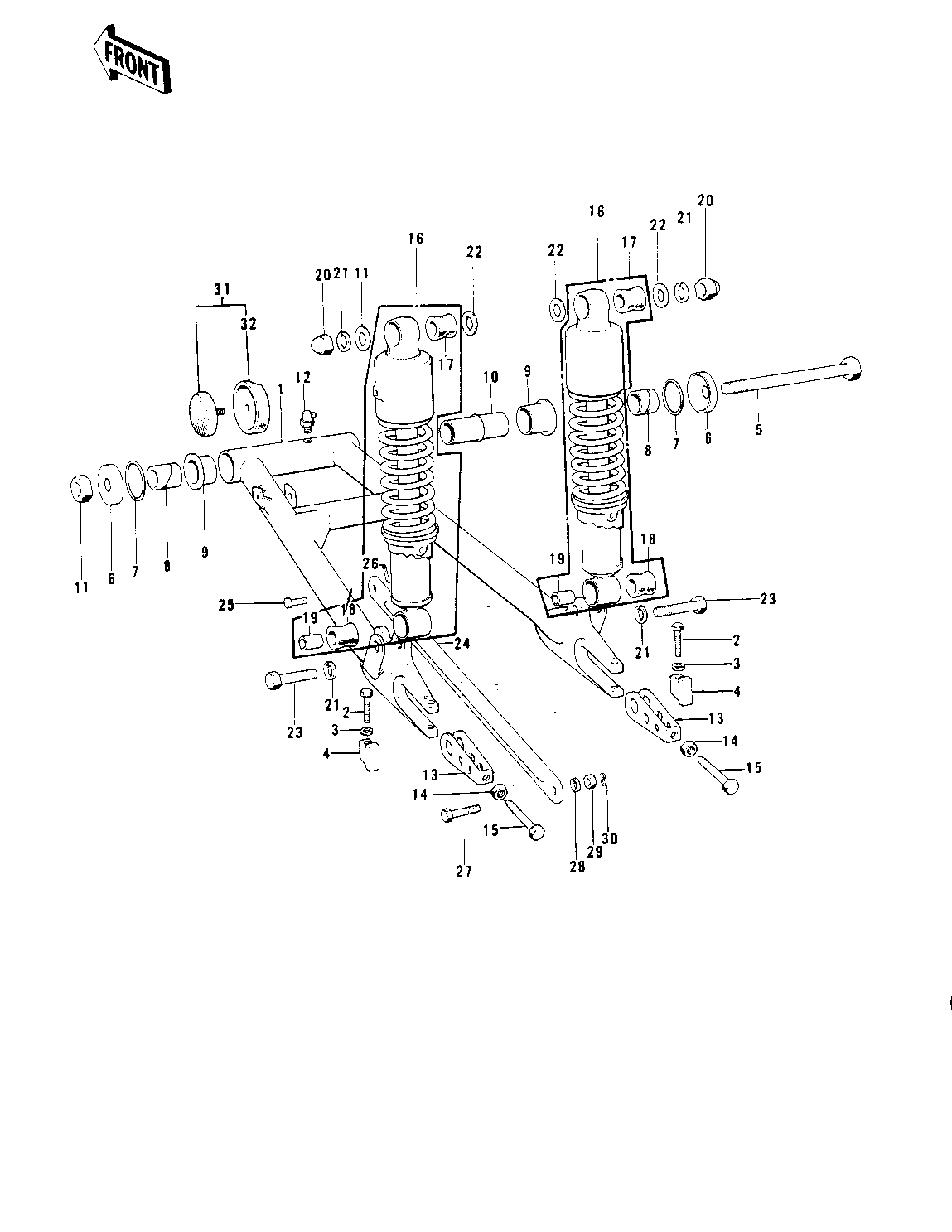

1973 Mach IV - SWING ARM/SHOCK ABSORBERS (H2-B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWINGING ARM 1 33001-059
BOLT 2 92001-1578
WASHER SPRING 8MM 3 461F0800
STOPPER,CHAIN ADJUST 4 33044-001
SHAFT-SWING ARM PIVOT 5 33032-038
CAP,SWING ARM 6 33035-007
"0" RING,30MM 7 671B2530
SLEEVE SWING ARM 8 33034-009
BUSHING-SWING ARM 9 33033-009
SLEEVE SWING ARM LONG 10 33034-008
NUT-SELF LOCKING 11 92019-012
GREASE NIPPLE 12 92005-002
ADJUSTER,CHAIN D=10MM 13 33040-063
NUT 10MM 14 315B1000
BOLT-CHN ADJUST 10MM 15 92001-143
SHOCK ABSBR RR 16 45014-096
BUSHING,SHCK ABS RUB 17 45017-015
BUSHING, SHCK ABS RUB 18 45017-012
BUSHING,SHOCK ABSORB 19 45016-008
NUT SHOCK ABSORBER 20 92020-003
WASHER SPRING 10MM 21 461F1000
WASHER,PLAIN,10MM 22 92022-246
BOLT HEX HEAD 10X35 23 113N1035
TORQUE LINK-REAR BRK 24 43007-033
PIN REAR TORQUE LINK 25 43009-001
PIN COTTER 3.0X25 26 550D3025
BOLT-HEX HEAD,10X40 27 92003-097
WASHER SPRING 10MM 28 461F1000
NUT 10MM 29 315B1000
PIN,SNAP 30 554A0800
REFLECTOR,REFLEX,REAR 31 28001-030
DAMPER RUBBER-REFLEX 32 28016-002
