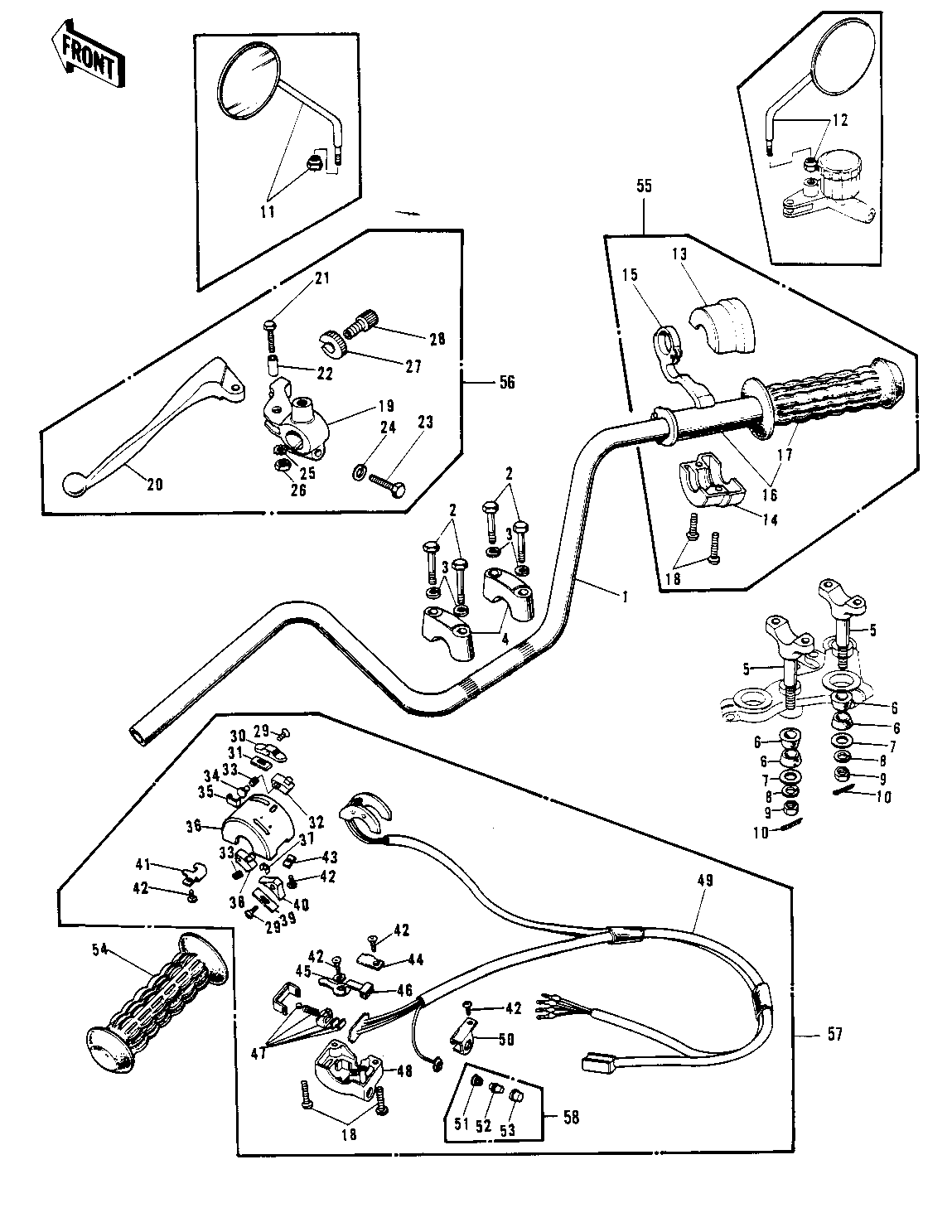

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HANDLEBAR | 1 | 46003-025 | |||
BOLT 8X38 | 2 | 92001-1405 | |||
BOLT 8X38 | 2 | 92001-1405 | |||
WASHER SPRING 8MM | 3 | 461F0800 | |||
HOLDER-HANDLEBAR | 4 | 46012-008 | |||
HOLDER-HANDLEBAR LOW | 5 | 46012-010 | |||
DAMPER RUBBER,HANDLE | 6 | 92075-275 | |||
WASHER-HANDLEBAR FIT | 7 | 92022-196 | |||
NUT,10MM | 8 | 314B1000 | |||
NUT,10MM | 9 | 314B1000 | |||
PIN COTTER 2.5X20 | 10 | 550D2520 | |||
REAR VIEW MIRROR,L.H | 11 | 56003-009 | |||
REAR VIEW MIRROR,R.H | 12 | 56002-020 | |||
CASE-R.H LOWER | 13 | 46023-006 | |||
CASE-R.H LOWER | 14 | 46023-006 | |||
LEVER-STARTER | 15 | 46096-007 | |||
GRIP ASSY-THROTTLE | 16 | 46019-021 | H2 | ||
GRIP ASSY-THROTTLE | 16 | 46019-023 | H2-A | ||
RUBBER-R.H GRIP | 17 | 46061-012 | |||
UNAVAILABLE IN PRICE BOOK | 18 | 20B0522A | |||
HOLDER-CLUTCH LEV,BLK | 19 | 46094-011-21 | H2 | ||
UNAVAILABLE IN PRICE BOOK | 19 | 46094-011-21- | H2-A | ||
LEVER-CLUTCH | 20 | 46092-015 | |||
BOLT HEX HEAD 5X20 | 21 | 92007-020 | |||
COLLAR LEVER | 22 | 46059-011 | |||
BOLT HEX HEAD 6X25 | 23 | 110N0625 | |||
WASHER PLAIN 6MM | 24 | 410B0600 | |||
WASHER LOCK 5MM | 25 | 464H0500 | |||
NUT 5MM | 26 | 312B0500 | |||
NUT-LOCK | 27 | 46056-005 | |||
SCREW ADJUST | 28 | 46055-006 | |||
SCREW CNTSNK HD 3X8 | 29 | 221B0308A | |||
KNOB-L.H SWITCH,B | 30 | 46044-008 | |||
SPRING-L.H SW KNOB,B | 31 | 46031-006 | |||
SWITCH-L.H,A | 32 | 46089-005 | |||
SPRING-L.H SWITCH | 33 | 46031-007 | |||
CONTACT-L.H SWITCH | 34 | 46079-004 | |||
PLATE-L.H SW CNTACT,B | 35 | 46080-004 | |||
CASE-L.H UPPER | 36 | 46086-014 | |||
PLATE-L.H SW CNTACT,A | 37 | 46080-003 | |||
SWITCH-L.H,B | 38 | 46089-006 | |||
SPRING L.H SW KNOB | 39 | 46031-003 | |||
KNOB-L.H SWITCH | 40 | 46044-011 | |||
HOLDER-L.H SW UPPER,A | 41 | 46085-018 | |||
SCREW PAN HEAD 3X5 | 42 | 220B0305A | |||
HOLDER-L.H SW UPPER,B | 43 | 46085-019 | |||
HOLDER-L.H SW LOWER,A | 44 | 46085-016 | |||
WASHER | 45 | 92095-010 | |||
KNOB-SWITCH | 46 | 46044-007 | |||
SLIDE BLOCK AY-L.H SW | 47 | 46089-007 | |||
CASE-L.H LOWER | 48 | 46077-016 | |||
WIRING HARNESS-L.H SW | 49 | 46082-018 | |||
HOLDER-L.H SW LOWER,B | 50 | 46085-017 | |||
SWITCH ASSY,HORN BUTN | 51 | 27010-1009 | |||
SWITCH ASSY,HORN BUTN | 52 | 27010-1009 | |||
SWITCH ASSY,HORN BUTN | 53 | 27010-1009 | |||
RUBBER-L.H GRIP | 54 | 46075-017 | |||
CASE ASSY-R.H | 55 | 46018-018 | H2 | ||
CASE ASSY-R.H | 55 | 46018-024 | H2-A | ||
LEVER ASSY-CLUTCH | 56 | 46076-026 | |||
CASE ASSY-L.H | 57 | 46091-005 | |||
SWITCH ASSY,HORN BUTN | 58 | 27010-1009 |
