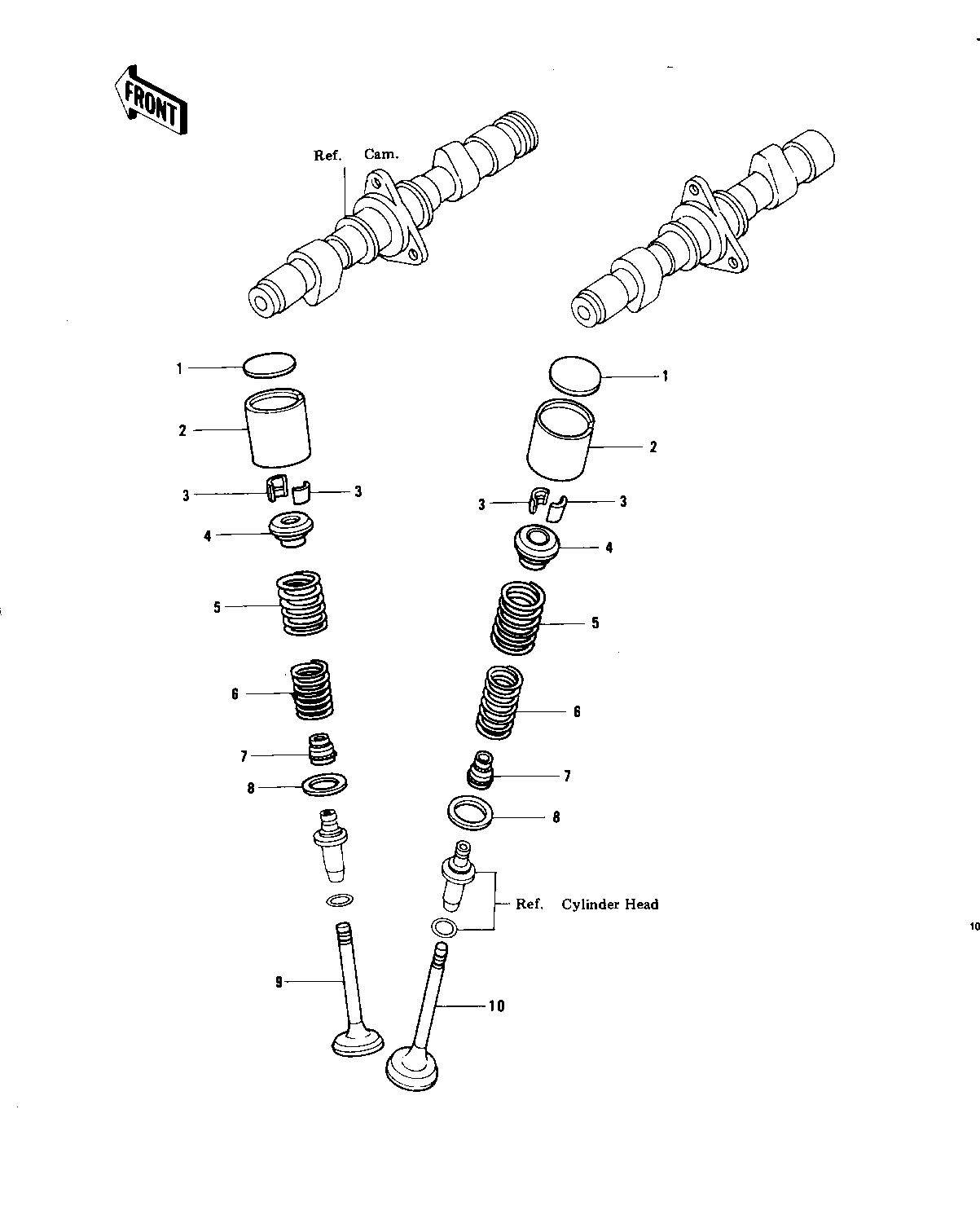

1979 KZ750-B4 - VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHIM,2.20T 1 12037-051
SHIM,2.25T 1 12037-052
SHIM,2.30T 1 12037-053
SHIM,2.35T 1 12037-054
SHIM,2.40T 1 12037-055
SHIM,2.45T 1 12037-056
SHIM,2.50T 1 12037-057
SHIM,2.55T 1 12037-058
SHIM,2.60T 1 12037-059
SHIM,2.65T 1 12037-060
SHIM,2.70T 1 12037-061
SHIM,2.75T 1 12037-062
SHIM,2.80T 1 12037-063
SHIM,2.85T 1 12037-064
SHIM,2.90T 1 12037-065
SHIM,2.95T 1 12037-066
SHIM,3.00T 1 12037-067
SHIM,3.05T 1 12037-068
SHIM,3.10T 1 12037-069
SHIM,3.15T 1 12037-070
SHIM,3.20T 1 12037-071
SHIM,3.25T 1 12037-072
SHIM,3.30T 1 12037-073
SHIM,3.35T 1 12037-074
SHIM,3.40T 1 12037-075
TAPPET 2 12032-006
COLLAR,VALVE SPRING 3 12011-003
RETAINER,VALVE SPRING 4 12009-007
SPRING,OUTER VALVE 5 12007-015
SPRING,INNER VALVE 6 12007-016
OIL SEAL,VALVE 7 92049-017
WASHER,PLAIN 8 92022-309
VALVE,EXHAUST 9 12005-007
VALVE,INLET 10 12004-014
