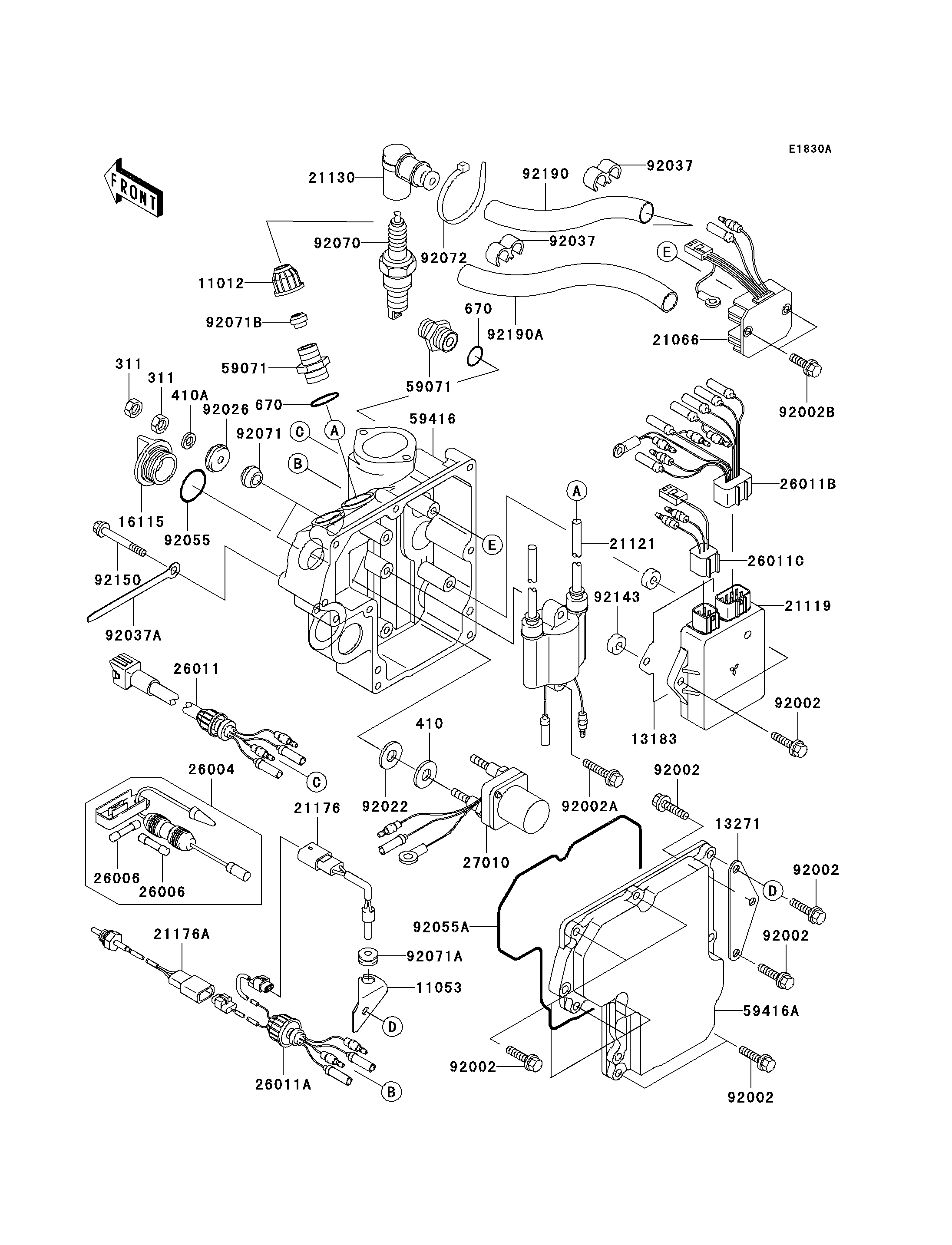

2005 800 SX-R - Ignition System(A2/A3)
311
311
311
311
11012
11012
11053
11053
13183
13183
13271
13271
16115
16115
21066
21066
21119
21119
21121
21121
21130
21130
21176
21176
21176A
21176A
26004
26004
26006
26006
26006
26006
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
27010
27010
59071
59071
59071
59071
59416
59416
59416A
59416A
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002A
92002A
92002B
92002B
92022
92022
92026
92026
92037
92037
92037
92037
92037A
92037A
92055
92055
92055A
92055A
92070
92070
92071
92071
92071A
92071A
92071B
92071B
92072
92072
92143
92143
92150
92150
92190
92190
92190A
92190A
410
410
410A
410A
670
670
670
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
| CAP | 11012 | 11012-3005 | 2 | ||
| BRACKET,AIR TEMP SENSOR | 11053 | 11053-3775 | 1 | ||
| PLATE | 13183 | 13183-3811 | 1 | ||
| PLATE | 13271 | 13271-3870 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-3709 | 1 | ||
| IGNITER | 21119 | 21119-3764 | 1 | ||
| COIL-IGNITION | 21121 | 21121-3713 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-3707 | 2 | ||
| SENSOR,INTAKE AIR TEMP | 21176 | 21176-3730 | 1 | ||
| SENSOR,WATER TEMP | 21176A | 21176-3758 | 1 | ||
| FUSE-ASSY | 26004 | 26004-3712 | 1 | ||
| FUSE,10A,L=30 | 26006 | 26006-0003 | 2 | ||
| WIRE-LEAD | 26011 | 26011-3792 | 1 | ||
| WIRE-LEAD,SENSOR | 26011A | 26011-3906 | 1 | ||
| WIRE-LEAD | 26011B | 26011-3907 | 1 | ||
| WIRE-LEAD | 26011C | 26011-3908 | 1 | ||
| SWITCH,STARTER RELAY | 27010 | 27010-3760 | 1 | ||
| JOINT | 59071 | 59071-3001 | 4 | ||
| CASE-ELECTRIC,LWR | 59416 | 59416-3762 | 1 | ||
| CASE-ELECTRIC,UPP | 59416A | 59416-3763 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 11 | ||
| BOLT,6X30 | 92002A | 92002-3726 | 2 | ||
| BOLT,6X20 | 92002B | 92002-3755 | 2 | ||
| WASHER | 92022 | 92022-3035 | 2 | ||
| SPACER | 92026 | 92026-3703 | 2 | ||
| CLAMP,HOSE | 92037 | 92037-1603 | 2 | ||
| CLAMP,L=100 | 92037A | 92037-3736 | 1 | ||
| RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
| RING-O,ELECTRIC CASE | 92055A | 92055-3731 | 1 | ||
| PLUG-SPARK,BR8ES(NGK),SOLID | 92070 | 92070-3702 | 2 | ||
| GROMMET | 92071 | 92071-3004 | 2 | ||
| GROMMET | 92071A | 92071-3733 | 1 | ||
| GROMMET | 92071B | 92071-527 | 2 | ||
| BAND,L=99 | 92072 | 92072-3871 | 2 | ||
| COLLAR,6.5X16X6 | 92143 | 92143-1496 | 2 | ||
| BOLT,6X85 | 92150 | 92150-3763 | 3 | ||
| TUBE,HIGH TENSION,L=210 | 92190 | 92190-3708 | 1 | ||
| TUBE,8X10X295 | 92190A | 92190-3960 | 1 | ||
| WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 2 | ||
| WASHER-PLAIN-SMALL,6MM | 410A | 410S0600 | 2 | ||
| O RING,16MM | 670 | 670B2016 | 4 |
