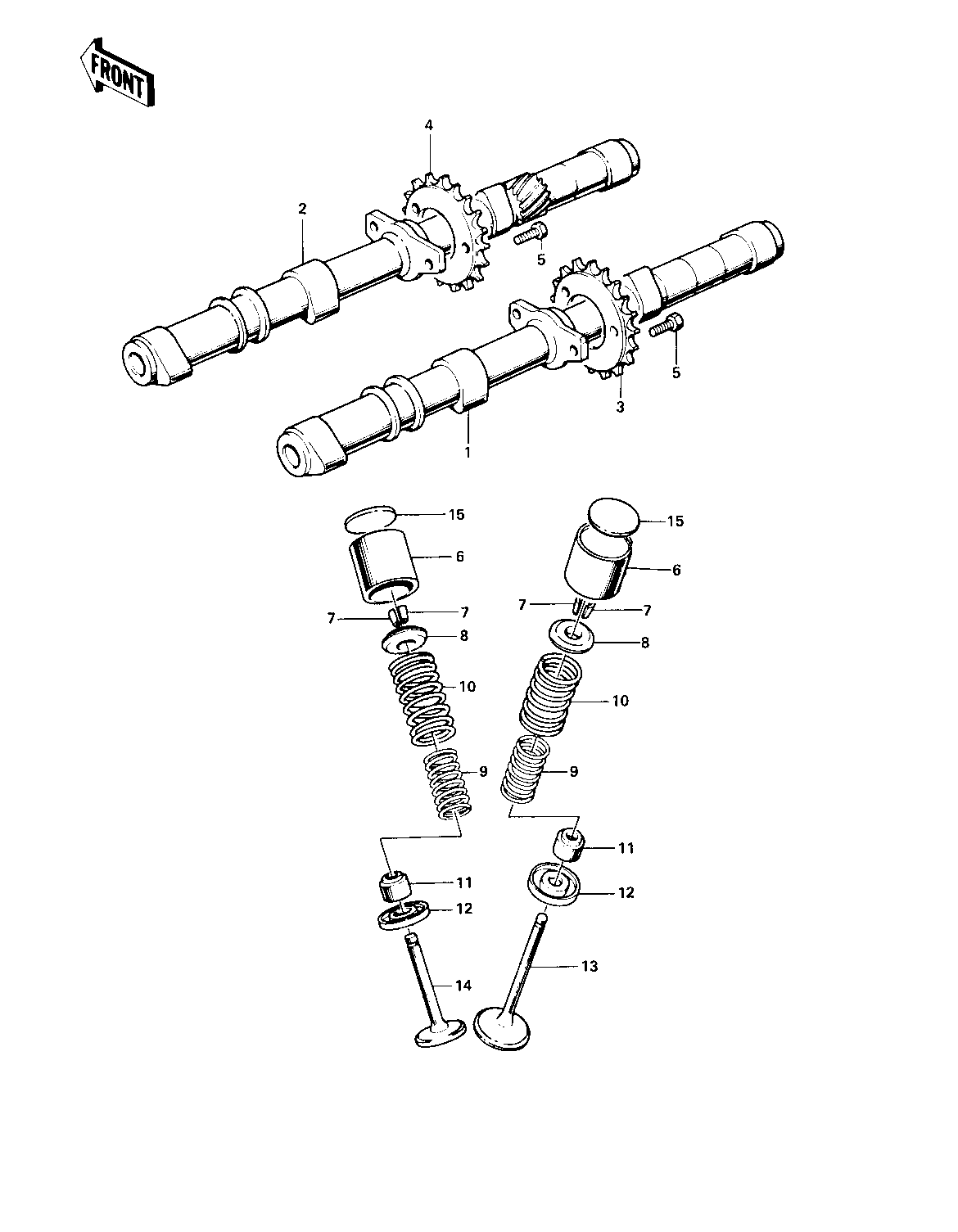

1975 Z1 - CAMSHAFTS/VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT,INLET 1 12044-014
CAMSHAFT,INLET 1 12044-014
CAMSHAFT,EXHAUST 2 12044-015
CAMSHAFT,EXHAUST 2 12044-015
SPROCKET,CAM SHAFT IN 3 12046-001
SPROCKET,CAM SHAFT EX 4 12046-002
BOLT,SPROCKET FITTING 5 92003-208
TAPPET 6 12032-005
COLLAR,VALUE SPRING 7 12011-002
RETAINER,VALVE SPRING 8 12009-005
SPRING,INNER VALVE 9 12007-011
SPRING,OUTER VALVE 10 12007-012
OIL SEAL,RV37129.5 11 92049-016
SEAT-SPRING,VALVE 12 16007-1024
VALVE,INLET 13 12004-012
VALVE,EXHAUST 14 12005-005
SHIM,TAPPET,2.00T 15 12037-001
SHIM,TAPPET,2.05T 15 12037-002
SHIM,TAPPET,2.10T 15 12037-003
SHIM,TAPPET,2.15T 15 12037-004
SHIM,TAPPET,2.20T 15 12037-005
SHIM,TAPPET,2.25T 15 12037-006
SHIM,TAPPET,2.30T 15 12037-007
SHIM,TAPPET,2.35T 15 12037-008
SHIM,TAPPET,2.40T 15 12037-009
SHIM,TAPPET,2.45T 15 12037-010
SHIM,TAPPET,2.50T 15 12037-011
SHIM,TAPPET,2.55T 15 12037-012
SHIM,TAPPET,2.60T 15 12037-013
SHIM,TAPPET,2.65T 15 12037-014
SHIM,TAPPET,2.70T 15 12037-015
SHIM,TAPPET,2.75T 15 12037-016
SHIM,TAPPET,2.80T 15 12037-017
SHIM,TAPPET,2.85T 15 12037-018
SHIM,TAPPET,2.90T 15 12037-019
SHIM,TAPPET,2.95T 15 12037-020
SHIM,TAPPET,3.00T 15 12037-021
SHIM,TAPPET,3.05T 15 12037-022
SHIM,TAPPET,3.10T 15 12037-023
SHIM,TAPPET,3.15T 15 12037-024
SHIM,TAPPET 3.20T 15 12037-025
