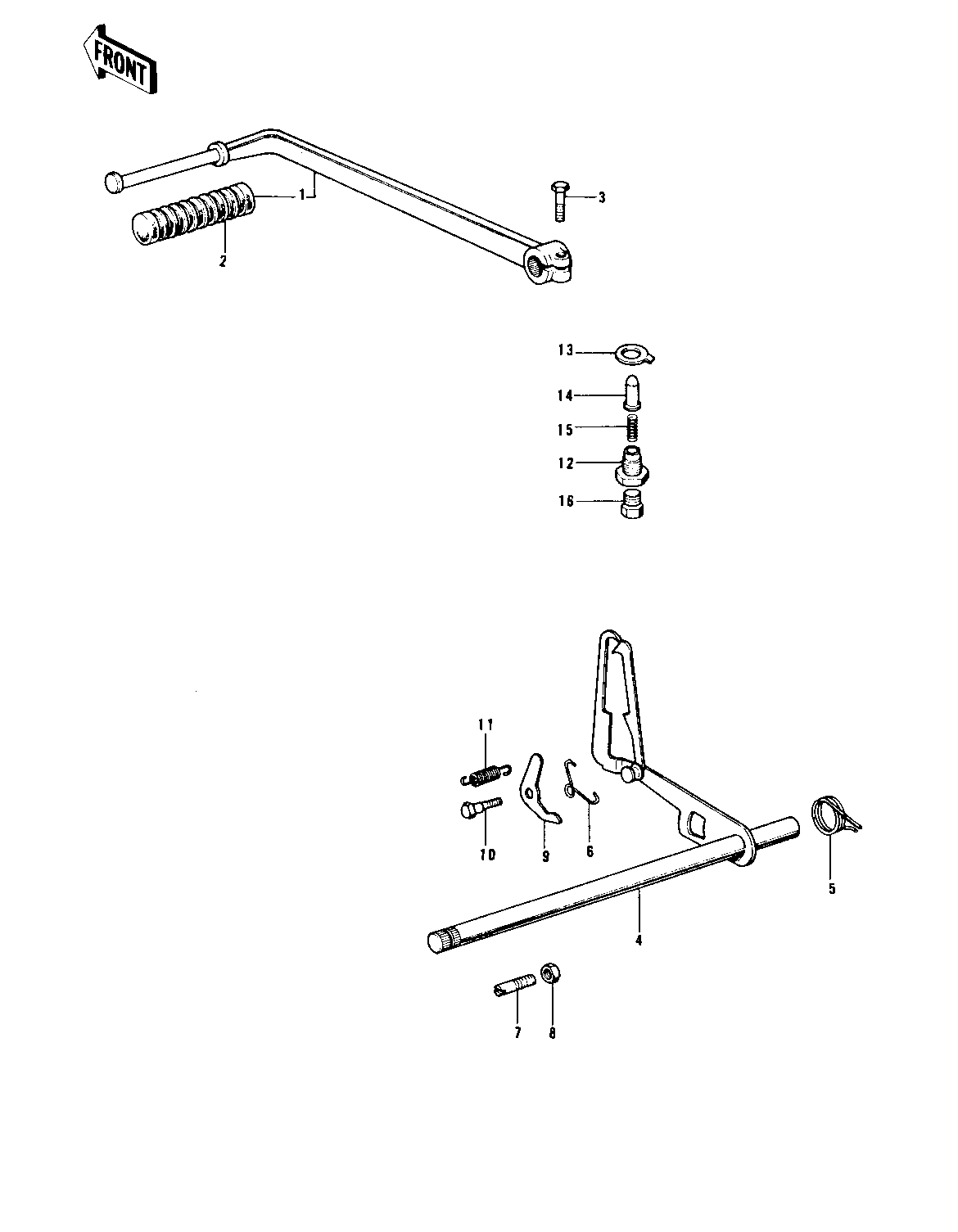

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL ASSY,GEAR CHANG 1 13242-006
RUBBER CHANGE PEDAL 2 13157-004
BOLT-UPSET 3 112N0620
LEVER ASSY GEAR CHNG 4 13161-029
SPRING,CHG PEDL RTN 5 92083-021
SPRING,CHG PEDL RTRN 5 92083-028 E/NO. 095991--
SPRING,KICK PAWL 6 92083-018
PIN CHANGE PEDAL SPRG 7 92043-057
NUT 8MM 8 312B0800
LEVER,GEAR CHNG DRUM 9 13168-024
BOLT,CHANGE DRUM LEVE 10 92150-1450
SPRING CHNG DRUM LEV 11 92081-051
BOLT,CHG DRUM POSITN 12 92001-112
WASHER,LOCK 13 92024-047
PIN 14 92043-085
SPRING 15 92081-106
BOLT 16 92001-119
