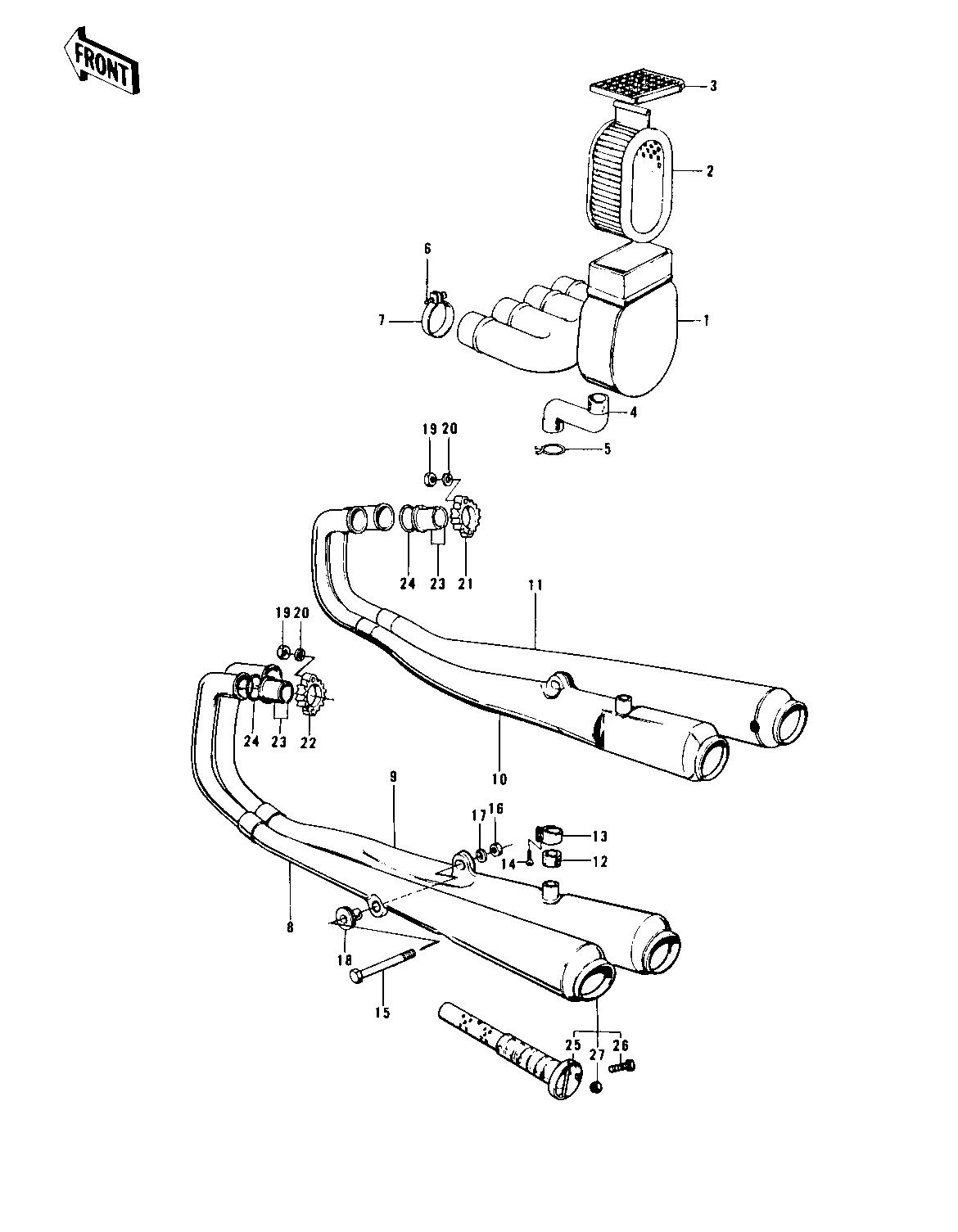

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BODY,AIR CLEANER | 1 | 11011-022 | |||
ELEMENT,AIR,CLNR | 2 | 11013-034 | |||
CAP,AIR CLEANER | 3 | 11012-030 | |||
PIPE,BREATHER | 4 | 92059-078 | |||
CLAMP BREATHER PIPE | 5 | 92037-028 | |||
SCREW-PAN-CROS | 6 | 220B0535 | |||
CLAMP,AIR INLET | 7 | 92123-002 | |||
MUFFLER ASSY,L.H UPP | 8 | 18001-227 | |||
MUFFLER ASSY,L.H LOW | 9 | 18001-228 | |||
MUFFLER ASSY,R.H LOW | 10 | 18001-183 | |||
MUFFLER ASSY,R.H UPP | 11 | 18001-184 | |||
PIPE,MUFFLER CONNECT | 12 | 92059-079 | |||
PIPE,MUFFLER CONNECT | 12 | 92059-120 | |||
CLAMP,MUFFLER CONNECT | 13 | 92037-103 | |||
SCREW PAN HEAD 5X16 | 14 | 220B0516 | Z1 | ||
SCREW PAN HEAD 6X16 | 14 | 220B0616 | Z1-A/B | ||
BOLT,HEX HEAD,10X104 | 15 | 92003-180 | Z1 | ||
BOLT,HEX HEAD,10X104 | 15 | 92003-180 | Z1/A | ||
BOLT,HEX HEAD,10X104 | 15 | 92003-180 | Z1-B | ||
NUT,10MM | 16 | 92015-1429 | Z1/A | ||
NUT,LOCK,10MM | 16 | 92019-021 | Z1-B | ||
WASHER PLAIN 10MM | 17 | 410B1000 | |||
BUSHING,MUFFLER FITT | 18 | 92092-010 | |||
NUT 6MM | 19 | 311B0600 | |||
WASHER SPRING 6MM | 20 | 461F0600 | |||
HOLDER,EXHAUST PIPE | 21 | 18069-045 | |||
HOLDER,EXHAUST PIPE | 22 | 18069-046 | |||
INSERT,EXHAUST PIPE | 23 | 92027-170 | |||
GASKET,EXHAUST PIPE H | 24 | 11009-1906 | |||
BAFFLE TUBE | 25 | 18033-058 | |||
BOLT-UPSET,6X16 | 26 | 112G0616 | |||
NUT 6MM | 27 | 311B0600 |
