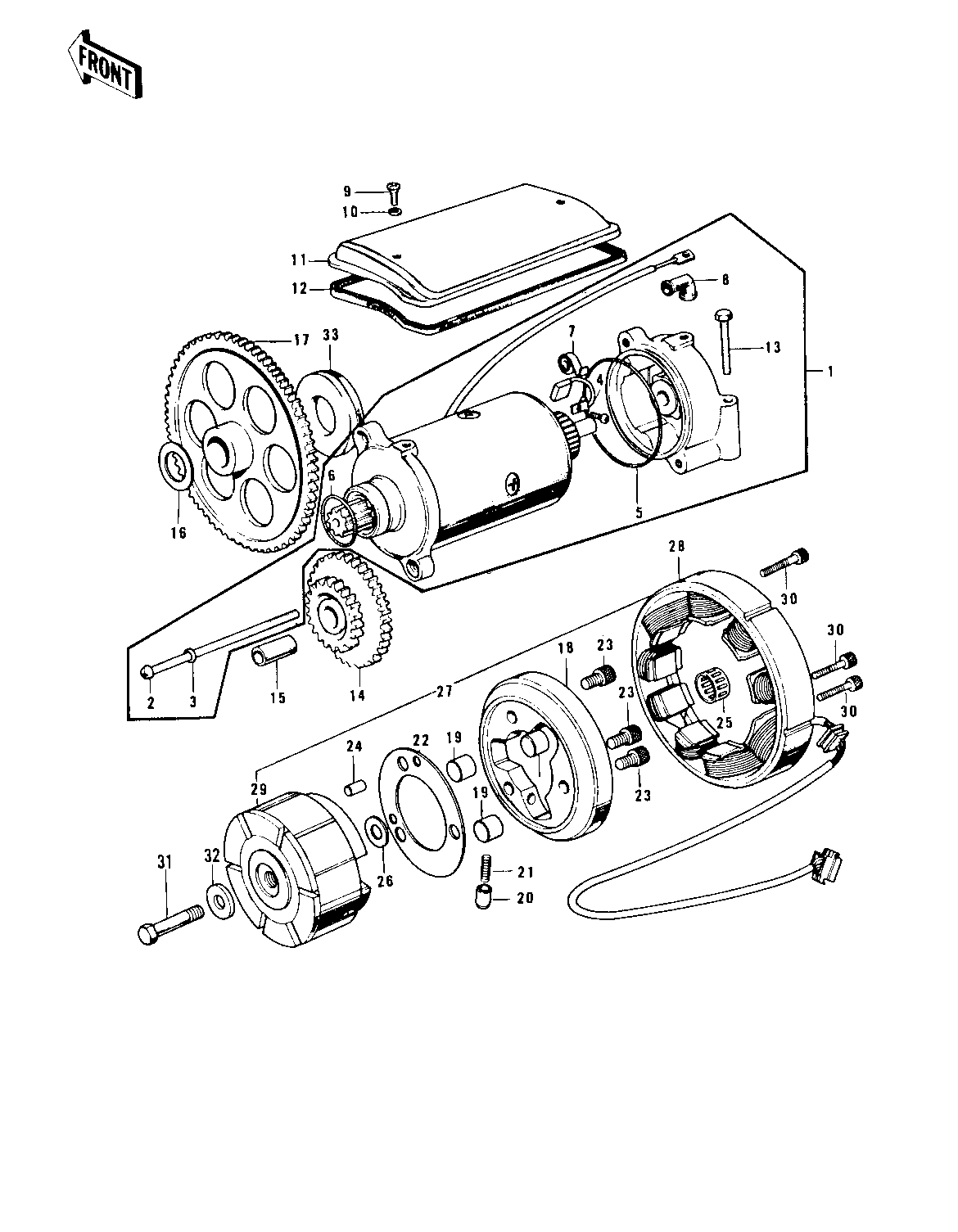

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
MOTOR ASSY,STARTING | 1 | 21163-001 | |||
SCREW,PAN HEAD,6X110 | 2 | 21015-005 | |||
WASHER SPRING 6MM | 3 | 461F0600 | |||
CARBON BRUSH | 4 | 21039-003 | |||
"0" RING,STARTING MTR | 5 | 21027-003 | |||
"0" RING,STARTING MTR | 6 | 21027-004 | |||
SPRING,CARBON BRUSH | 7 | 21040-003 | |||
GROMMET,CORD | 8 | 21017-017 | |||
BOLT (6X10) | 9 | 110R0610 | |||
WASHER PLAIN 6MM | 10 | 410B0600 | |||
COVER,STARTING MOTOR | 11 | 21165-001 | |||
GASKET,START MOTOR CV | 12 | 21166-001 | |||
UNAVAILABLE IN PRICE BOOK | 13 | 110B0656 | |||
GEAR,STARTING MOTOR | 14 | 21167-002 | |||
PIN-PISTON | 15 | 13002-007 | |||
WASHER 22.1X30.7X2.0T | 16 | 92026-091 | |||
GEAR,STARTING CLUTCH | 17 | 21167-003 | --E/NO. 06395 | ||
GEAR,STARTING CLUTCH | 17 | 21167-003 | E/NO. 06396-- | ||
CLUTCH ASSY,STARTING | 18 | 13193-1006 | |||
PIN | 19 | 92122-001 | |||
PIN | 20 | 92043-087 | |||
SPRING | 21 | 92081-110 | |||
WASHER,FREE WHEEL | 22 | 92026-082 | |||
BOLT | 23 | 120P0816 | |||
PIN,DOWEL,6X22 | 24 | 551A0622 | |||
BEARING,K222620 | 25 | 92046-033 | |||
WASHER 22X35.5X1.OT | 26 | 92026-092 | --E/NO. 06395 | ||
WASHER 22X35.5X1.OT | 26 | 92026-092 | E/NO. 06396-- | ||
DYNAMO ASSY | 27 | 21001-024 | |||
YOKE ASSY | 28 | 21076-014 | |||
ROTOR | 29 | 21007-029 | --E/NO. 06395 | ||
ROTOR | 29 | 21007-029 | E/NO. 06396-- | ||
BOLT-SOCKET,6X35,BLAC | 30 | 120S0635 | |||
BOLT,8X40 | 31 | 115G0840 | |||
WASHER 8.5X23.5X4.5 | 32 | 92022-218 | |||
DAMPER RUBBER | 33 | 92075-186 | |||
UNAVAILABLE IN PRICE BOOK | 33 | 92075-187 | |||
DAMPER RUBBER 8.3T | 33 | 92075-188 | |||
DAMPER RUBBER 6.3T | 33 | 92075-192 | E/NO. 06396-- | ||
DAMPER RUBBER 7.3T | 33 | 92075-193 | E/NO. 06396-- | ||
DAMPER RUBBER 8.3T | 33 | 92075-194 | E/NO. 06396-- |
