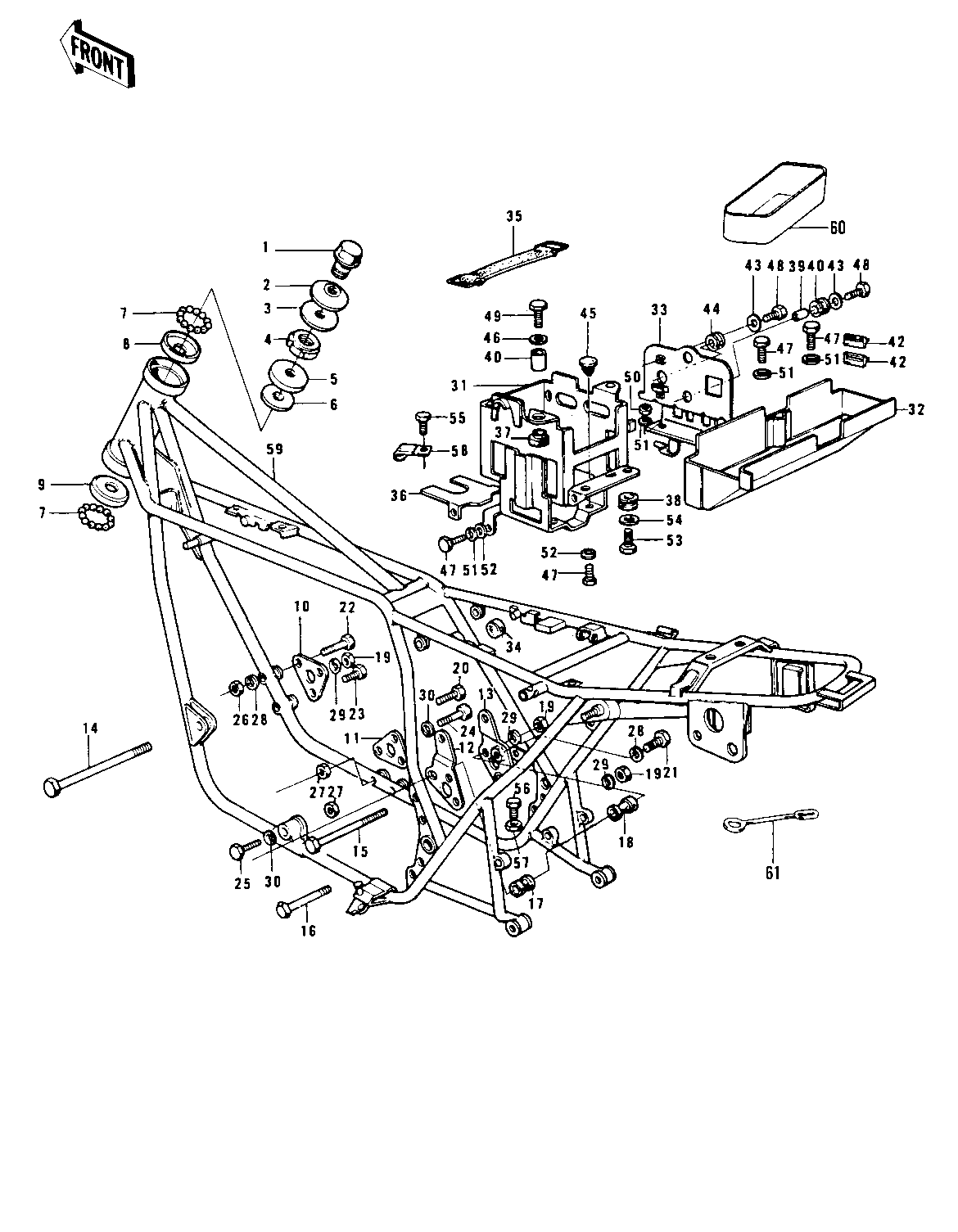

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,STEERG STEM HEAD | 1 | 92007-031 | |||
WASHER,STEERG STM HD | 2 | 92022-230 | |||
WASHER,WAVE | 3 | 46100-003 | |||
NUT STEERING STEM LCK | 4 | 92090-007 | |||
UNAVAILABLE IN PRICE BOOK | 5 | 45096-010 | |||
CONE,STRNG STM BRNG | 6 | 92047-011 | |||
BALL STEEL 1/4' | 7 | 600A0800 | |||
RACE STRNG STEM BERNG | 8 | 92048-006 | |||
RACE,STRNG STM BRNG | 9 | 92048-008 | |||
PLATE,ENG MOUNT FRONT | 10 | 32030-025 | |||
PLATE,ENG MOUNT LOWER | 11 | 32030-026 | |||
PLATE,ENG MOUNT,L.H | 12 | 32030-046 | Z1/A | ||
PLATE,ENG MOUNT,L.H | 12 | 32030-046 | Z1-B | ||
PLATE,ENG MOUNT R.H | 13 | 32030-028 | Z1/A | ||
PLATE,ENG MOUNT,R.H | 13 | 32030-045 | Z1-B | ||
BOLT,ENGINE MOUNTING | 14 | 92091-022 | |||
BOLT,ENGINE MOUNTING | 15 | 92091-023 | |||
BOLT,ENGINE MOUNTING | 16 | 92003-099 | |||
COLLAR,ENG MOUNTING | 17 | 92027-159 | |||
COLLAR,ENG MOUNTING | 18 | 92027-160 | |||
NUT,10MM | 19 | 92015-1429 | |||
BOLT-SMALL-UPSET,8X18 | 20 | 115G0818 | |||
BOLT | 21 | 92001-1578 | |||
BOLT,FLANGED,8X35 | 21 | 92001-1577 | Z1-B | ||
BOLT-8X63 | 22 | 92001-1397 | |||
BOLT,HEX HEAD,8X59 | 23 | 110G0859 | |||
BOLT,HEX HEAD,12X70 | 24 | 92001-1265 | |||
BOLT,HEX HEAD,12X55 | 25 | 92001-1262 | |||
NUT,8MM | 26 | 311B0800 | |||
NUT,12MM | 27 | 92016-045 | |||
WASHER SPRING 8MM | 28 | 461F0800 | |||
WASHER SPRING 10MM | 29 | 461F1000 | |||
WASHER SPRING 12MM | 30 | 461F1200 | |||
CASE,BATTERY | 31 | 32097-022 | |||
CASE,TOOL | 32 | 32098-019 | |||
BRACKET,ELECTRIC BASE | 33 | 32129-001 | |||
DAMPER RUBBER,BTT CAS | 34 | 92075-141 | |||
BAND,OIL TANK | 35 | 92072-045 | Z1 | ||
BAND,OIL TANK | 35 | 92072-045 | Z1-Z/B | ||
STAY,AIR CLEANER | 36 | 32105-005 | |||
DAMPER RUBBER,BTT CAS | 37 | 92075-146 | |||
DAMPER RUBBER,BATTERY | 38 | 92075-161 | |||
COLLAR | 39 | 92027-165 | |||
COLLAR 6.8X10X14.5 | 40 | 92027-156 | |||
DAMPER RUBBER | 41 | 92075-149 | |||
SEAT RECTIFIER RUBBER | 42 | 32103-003 | |||
WASHER 6.5X20X1.6T | 43 | 92022-125 | |||
DAMPER RUBBER | 44 | 92075-051 | |||
DAMPER RUBBER | 45 | 92075-078 | |||
WASHER PLAIN | 46 | 92022-024 | |||
BOLT-UPSET 6X14 | 47 | 112B0614 | |||
BOLT-UPSET,6X16 | 48 | 112G0616 | |||
BOLT-UPSET | 49 | 112G0625 | |||
NUT 6MM | 50 | 312B0600 | |||
WASHER SPRING 6MM | 51 | 461F0600 | |||
WASHER PLAIN 6MM | 52 | 411B0600 | |||
BOLT,HEAX HEAD,6X14 | 53 | 92001-115 | |||
WASHER PLAIN 8MM | 54 | 410B0800 | |||
BOLT,6X10 | 55 | 112G0610 | |||
BOLT-UPSET,6X20 | 56 | 112G0620 | |||
NUT 6MM | 57 | 311B0600 | |||
CLAMP,WIRING HARNESS | 58 | 21126-008 | |||
FRAME | 59 | 32002-1018 | |||
CASE,BATTERY | 60 | 32099-015 | |||
CLAMP,OVER FLOW PIPE | 61 | 92037-134 |
