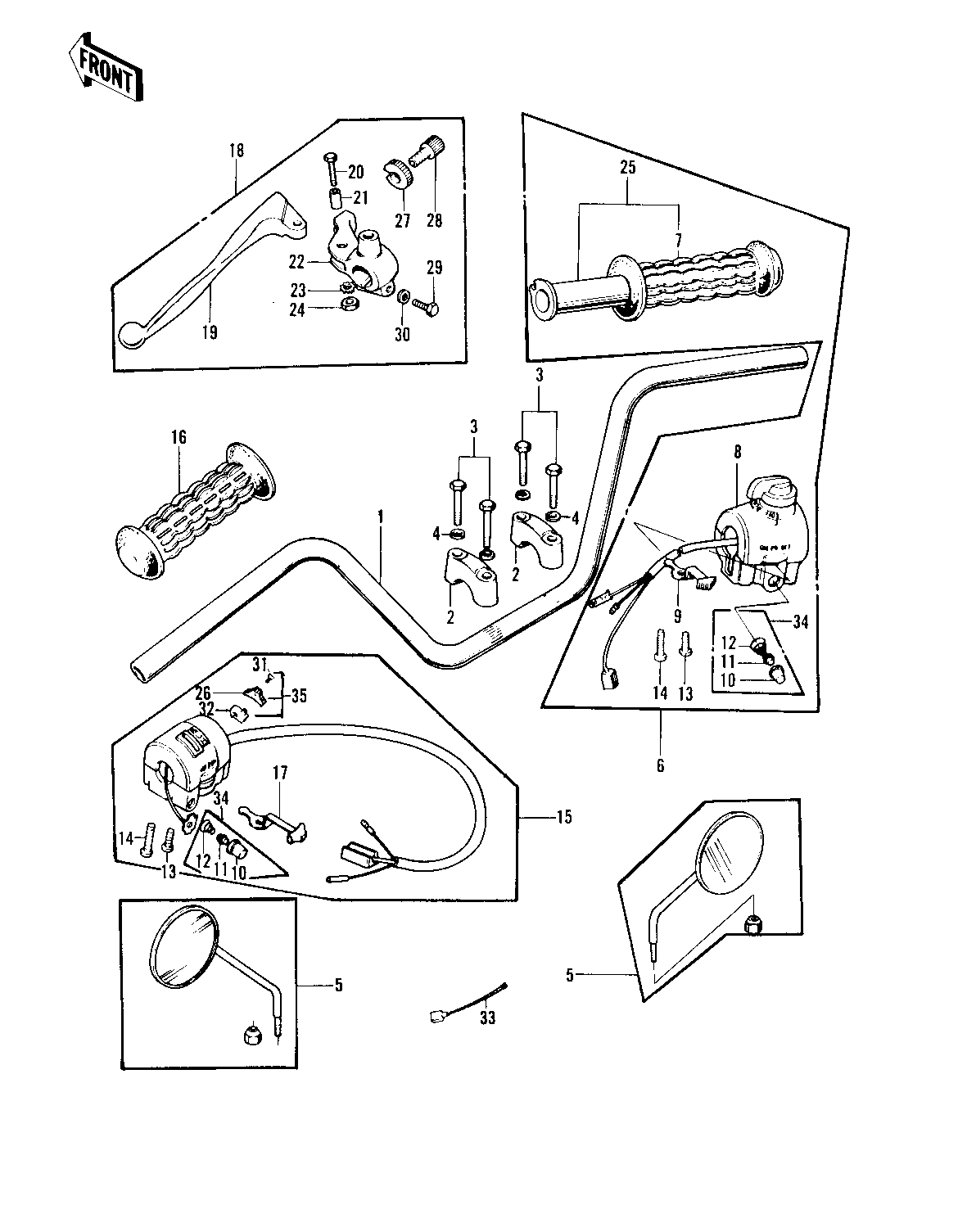

1975 Z1 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46003-029
HOLDER-HANDLEBAR 2 46012-008
BOLT 8X38 3 92001-1405
WASHER SPRING 8MM 4 461F0800
REAR VIEW MIRROR 5 56001-1030
GRIP ASSY,R.H 6 46018-025 Z1
RUBBER-R.H GRIP 7 46061-012
CASE ASSY,R.H SWITCH 8 46132-001 Z1/A
CASE ASSY,R.H 8 46132-018 Z1/B
CASE ASSY R.H 8 46132-014 CANADA
KNOB,LIGHTING SW R.H 9 46043-004
BUTTON HORN 10 46028-003 Z1/A
BUTTON, HORN PUSH 10 46028-006 Z1/A
CONTACT HORN SWITCH 11 46079-003
SPRING HORN SWITCH 12 46031-005
SCREW PAN HEAD 5X30 13 220B0530A
SCREW-PAN HEAD,5X35 14 220B0535A
CASE ASSY,L.H SWITCH 15 46091-009 Z1/A
HOUSING ASSY,CONT,L.H 15 46091-1079 Z1-B
RUBBER-L.H GRIP 16 46075-017
KNOB,LIGHTING SW L.H 17 46043-005
LEVER ASSY,CLUTCH 18 46076-025
LEVER-CLUTCH 19 46092-015
BOLT HEX HEAD 5X20 20 92007-020
COLLAR LEVER 21 46059-011
HOLDER-CLUTCH LEV,BLK 22 46094-011-21
WASHER LOCK 5MM 23 464H0500
NUT 5MM 24 312B0500A
GRIP ASSY,THROTTLE 25 46019-025
KNOB,LIGHTING SW L.H 26 46044-013
NUT-LOCK 27 46056-005
SCREW ADJUST 28 46055-006
BOLT HEX HEAD 6X25 29 110N0625
WASHER PLAIN 6MM 30 410B0600
SCREW PAN HEAD 3X5 31 220B0305A
SWITCH ASSY,L.H 32 46089-016 Z1/A
SWITCH,L.H 32 46089-014 Z1-B
WIRE,LEAD 33 26011-091 CANADA, USE WITH 46132-014
SWITCH ASSY,HORN BUTN 34 27010-1009
L.H GRIP SWITCH KIT 35 99990-530
