Parts Diagrams |

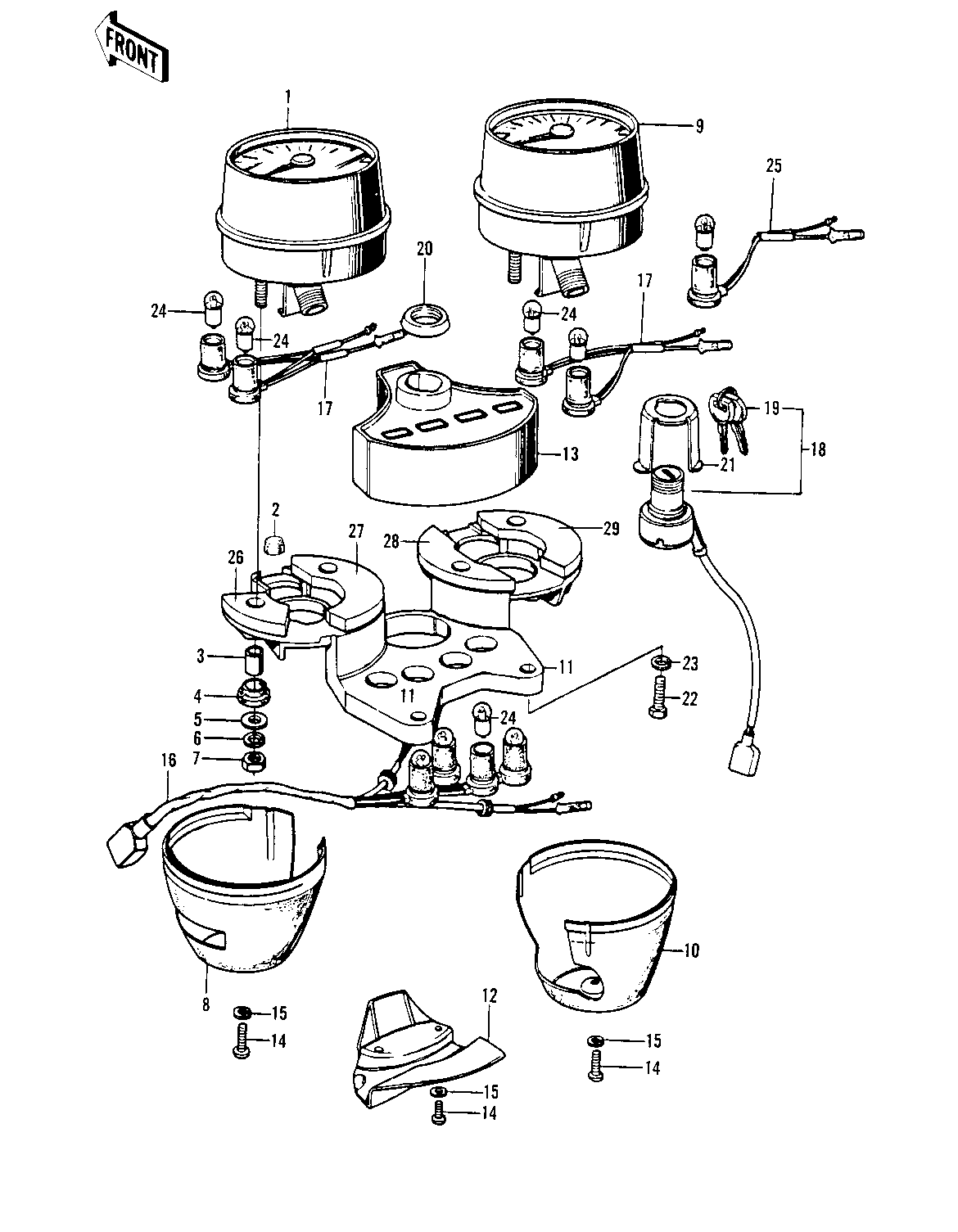

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SPEEDOMETER ASSY,MPH | 1 | 25005-121 | Z1/A | ||
SPEEDOMETER ASSY,MPH | 1 | 25005-121 | Z1-B | ||
SPEEDOMETER ASSY KPH (Canada) | 1 | 25001-073 | CANADA | ||
SHOCK DAMPER,SOCKET | 2 | 25019-029 | |||
COLLAR,METER | 3 | 92027-211 | |||
RUBBER,METER | 4 | 92075-172 | |||
WASHER,PLAIN,5MM | 5 | 92022-241 | |||
WASHER SPRING 5MM | 6 | 461F0500 | |||
NUT 5MM | 7 | 312B0500A | |||
COVER,SPEEDOMETER | 8 | 25012-010 | |||
TACHOMETER ASSY | 9 | 25015-025 | Z1 | ||
TACHOMETER ASSY | 9 | 25015-025 | Z1-A/B | ||
COVER,TACHOMETER | 10 | 25012-011 | |||
BRACKET,SPEEDO | 11 | 25008-044 | |||
COVER,WIRING HARNESS | 12 | 25024-001 | |||
COVER,METER | 13 | 25023-011 | Z1 | ||
COVER,METER | 13 | 25023-011 | Z1-A/B | ||
SCREW PAN HEAD 3X8 | 14 | 220B0308A | |||
WASHER SPRING 3MM | 15 | 461F0300 | |||
SOCKET ASSY,INDICATOR | 16 | 25011-026 | Z1 | ||
UNAVAILABLE IN PRICE BOOK | 16 | 25011-042 | Z1-A/B | ||
SOCKET ASSY,METER LAM | 17 | 25011-027 | |||
SWITCH ASSY,IGNITION | 18 | 27005-042 | |||
KEY SET,#751 | 19 | 27008-046-51 | |||
KEY SET,#752 | 19 | 27008-046-52 | |||
KEY SET,#753 | 19 | 27008-046-53 | |||
KEY SET,#754 | 19 | 27008-046-54 | |||
KEY SET,#755 | 19 | 27008-046-55 | |||
KEY,BLANK | 19 | 27008-1013 | |||
NUT,IGNITION SW LOCK | 20 | 27007-004 | |||
HOLDER IGNITION SW | 21 | 27019-003 | |||
BOLT HEX HEAD 8X32 | 22 | 110B0832 | |||
WASHER SPRING 8MM | 23 | 461F0800 | |||
BULB 12V 3W | 24 | 92069-018 | |||
SOCKET,TACHOMETER | 25 | 25011-043 | Z1-A/B | ||
SHOCK DAMPER A,SPEED | 26 | 25019-025 | |||
SHOCK DAMPER B,SPEED | 27 | 25019-026 | |||
SHOCK DAMPER A,TACHO | 28 | 25019-027 | |||
SHOCK DAMPER B,TACHO | 29 | 25019-028 |
