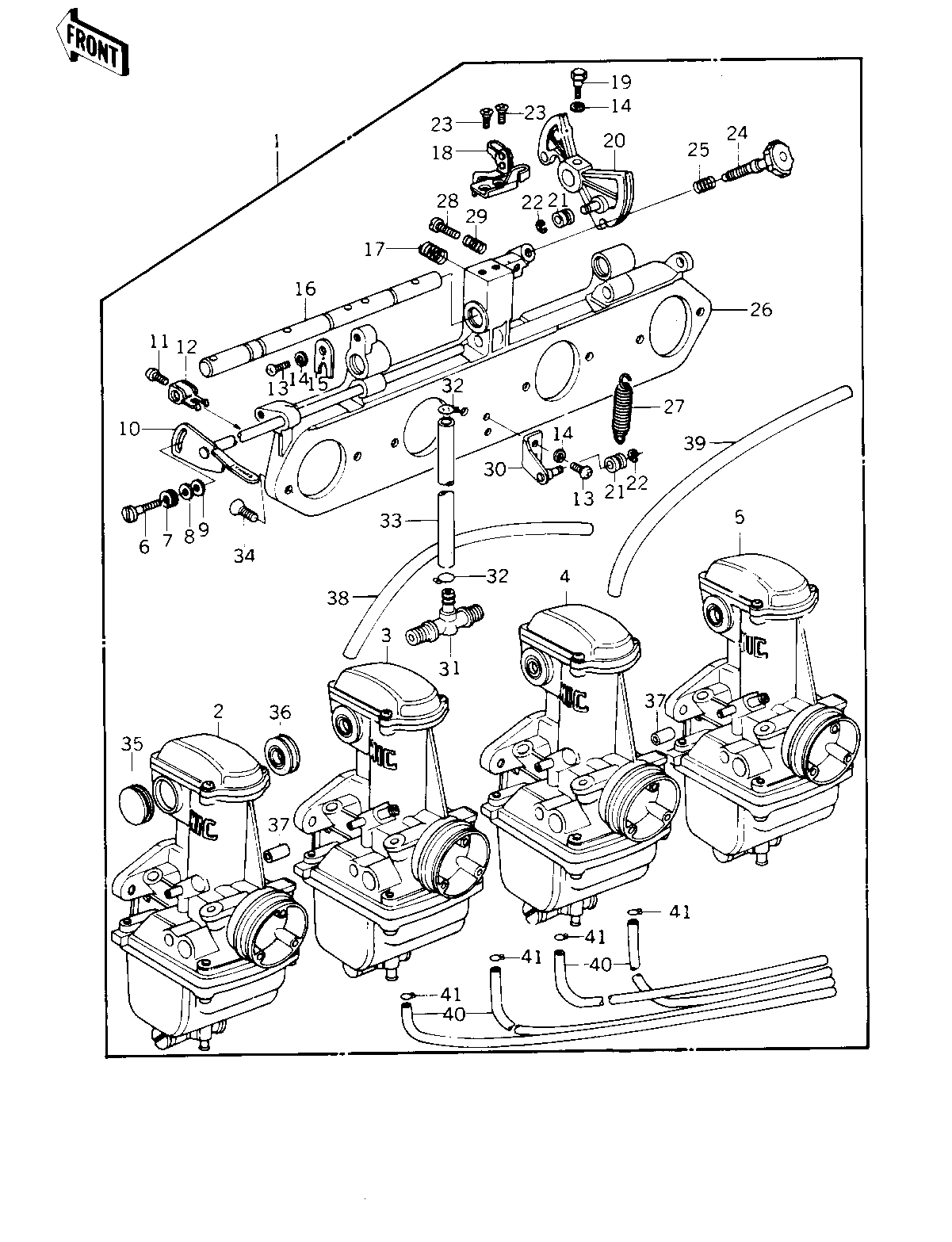

1978 KZ1000 LTD - CARBURETOR ASSY (KZ1000-B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR,ASSY 1 16001-1017 1
CARBURETOR,L.H OUTSID 2 16001-1034 1
CARBURETOR,L.H INSIDE 3 16001-1035 1
CARBURETOR,R.H INSIDE 4 16001-1036 1
CARBURETOR,L.H OUTSID 5 16001-1037 1
SCREW 6 16046-005 1
SPRING,F 7 16040-009 1
WASHER PLAIN 5MM 8 410B0500 1 STEEL
WASHER,PLAIN 9 16039-019 1 NYLON
SHAFT,STARTER PLUNGER 10 16041-021 1
SCREW,PAN HEAD,5X7 11 16046-007 4
LEVER,STARTER PLUNGER 12 13168-1026 4
SCREW-PAN-CROS 13 220B0514 3
WASHER SPRING 5MM 14 461F0500 5
PLATE,SHAFT STOPPER 15 16055-012 1
SHAFT,CARB CONNECTION 16 16041-017 1
SPRING,CABLE PULLY 17 16040-022 1
BRACKET,THROTTLE CABL 18 16077-017 1
BOLT,HEX HEAD,5X14 19 16067-006 1
PULLEY,THROTTLE CABLE 20 16068-015 1
RING 21 16073-016 2
CIRCLIP 3MM 22 482K3000 2
SCREW CNTSNK HD 5X10 23 221B0510A 2
SCREW,THROTTLE STOP 24 16021-1010 1
SPRING,THROTTLE STOP 25 16022-017 1
HOLDER,CARBURETOR 26 16065-049 1
SPRING,THROTTLE PULLY 27 92081-1028 1
SCREW 28 16021-032 1
SPRING,THROTTLE ADJST 29 16022-010 1
BRACKET,THROTTLE CABL 30 16077-016 1
JOINT,FUEL PIPE 31 16046-002 2
CLAMP,CARB CONECT HOS 32 92037-056 4
HOSE,FUEL 33 92059-144 2
SCREW,6X14 34 16033-029 8
CAP,RUBBER 35 16039-042 2
GROMMET,CARBURETOR 36 92071-104 6
HOSE,6X11.5X16 37 92059-141 2
HOSE,AIR VENT,5X8X550 38 92059-1028 1
HOSE,AIR VENT,5X8X550 39 92059-1028 1
HOSE,FUEL OVERFLOW 40 92059-147 4
CLAMP,OVERFLOW HOSE 41 92037-173 4
