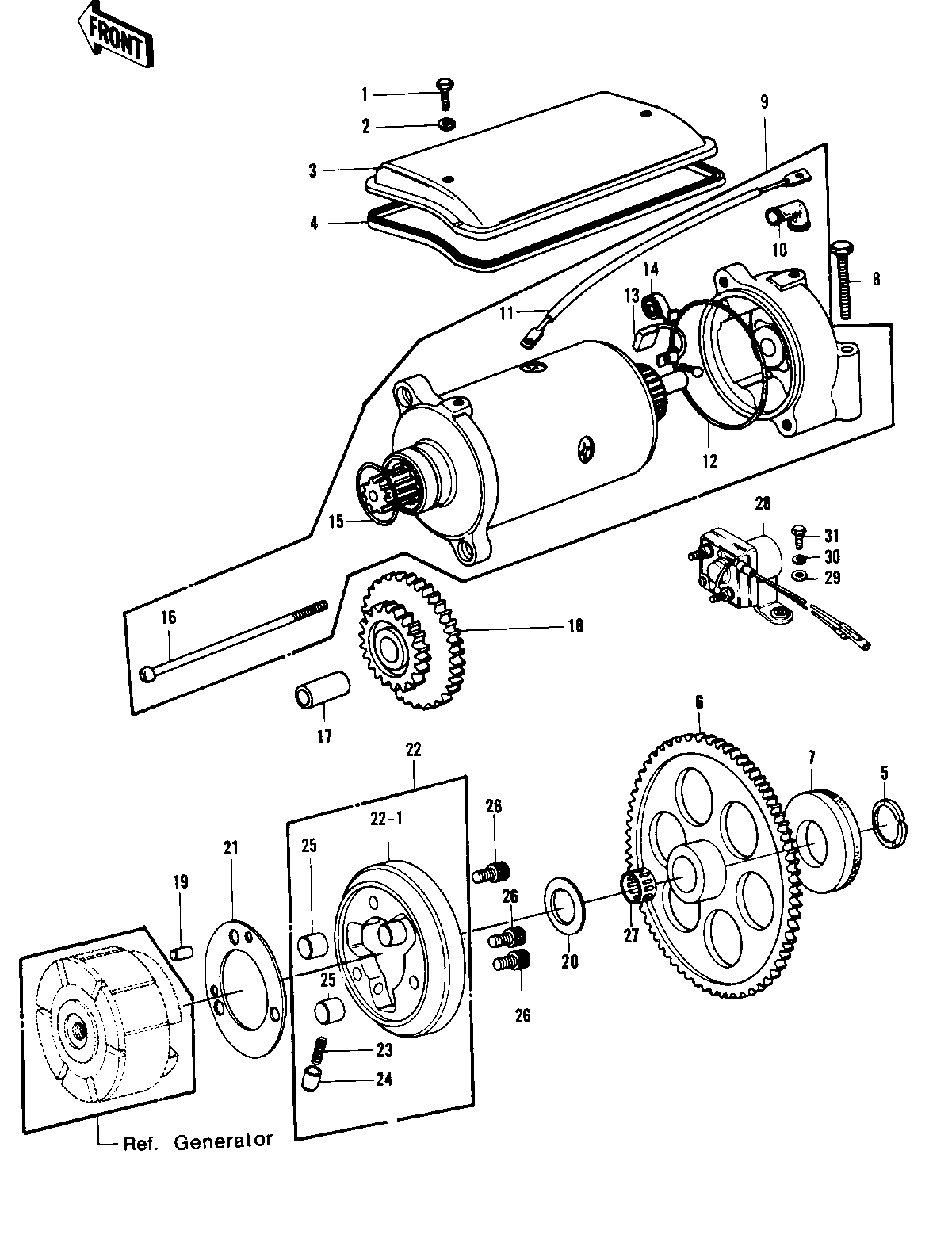

1978 KZ1000 LTD - STARTER MOTOR/STARTER CLUTCH ('77-'78 B1

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT (6X10) 1 110R0610 2
WASHER,PLAIN,6MM 2 410D0600 2
COVER,STARTING MOTOR 3 21165-001 1
GASKET,START MOTOR CV 4 21166-001 1
WASHER 22.1X30.7X2.0T 5 92026-091 1
GEAR,STARTING CLUTCH 6 21167-003 1 71T
DAMPER RUBBER 6.3T 7 92075-192 AR ID = *
DAMPER RUBBER 7.3T 7 92075-193 AR ID = **
DAMPER RUBBER 8.3T 7 92075-194 AR ID = ***
BOLT,EXCLUSIVE 8 92001-1456 2
STARTER-ELECTRIC 9 21163-1019 1
GROMMET,CORD 10 21017-017 1
WIRE,STARTER MOTOR 11 26010-055 1
"0" RING,STARTING MTR 12 21027-003 1
CARBON BRUSH 13 21039-003 2
SPRING,CARBON BRUSH 14 21040-003 2
"0" RING,STARTING MTR 15 21027-004 1
SCREW,PAN HEAD,6X110 16 21015-005 2
PIN-PISTON 17 13002-007 1
GEAR,STARTING MOTOR 18 21167-002 1 19T 70T
PIN,DOWEL,6X22 19 551A0622 1 NOT REQ'D W/13193-1006
WASHER 22X35.5X1.OT 20 92026-092 1
PLATE,CLUTCH STARTER 21 92026-112 1
CLUTCH ASSY,STARTING 22 13193-1006 1
SPRING 23 92081-110 3
PIN 24 92043-087 3
PIN 25 92122-001 3
BOLT SOCKET 8X16 26 92003-104 3
BEARING,K222620 27 92046-033 1
SWITCH ASSY,MAGNETIC 28 27010-1023 1
SWITCH ASSY,MAGNETIC 28 27010-1023 AL
WASHER 6.5X22X1.6T 29 92022-237 2
WASHER SPRING 6MM 30 461F0600 2
BOLT-UPSET,6X20 31 112G0620 2
