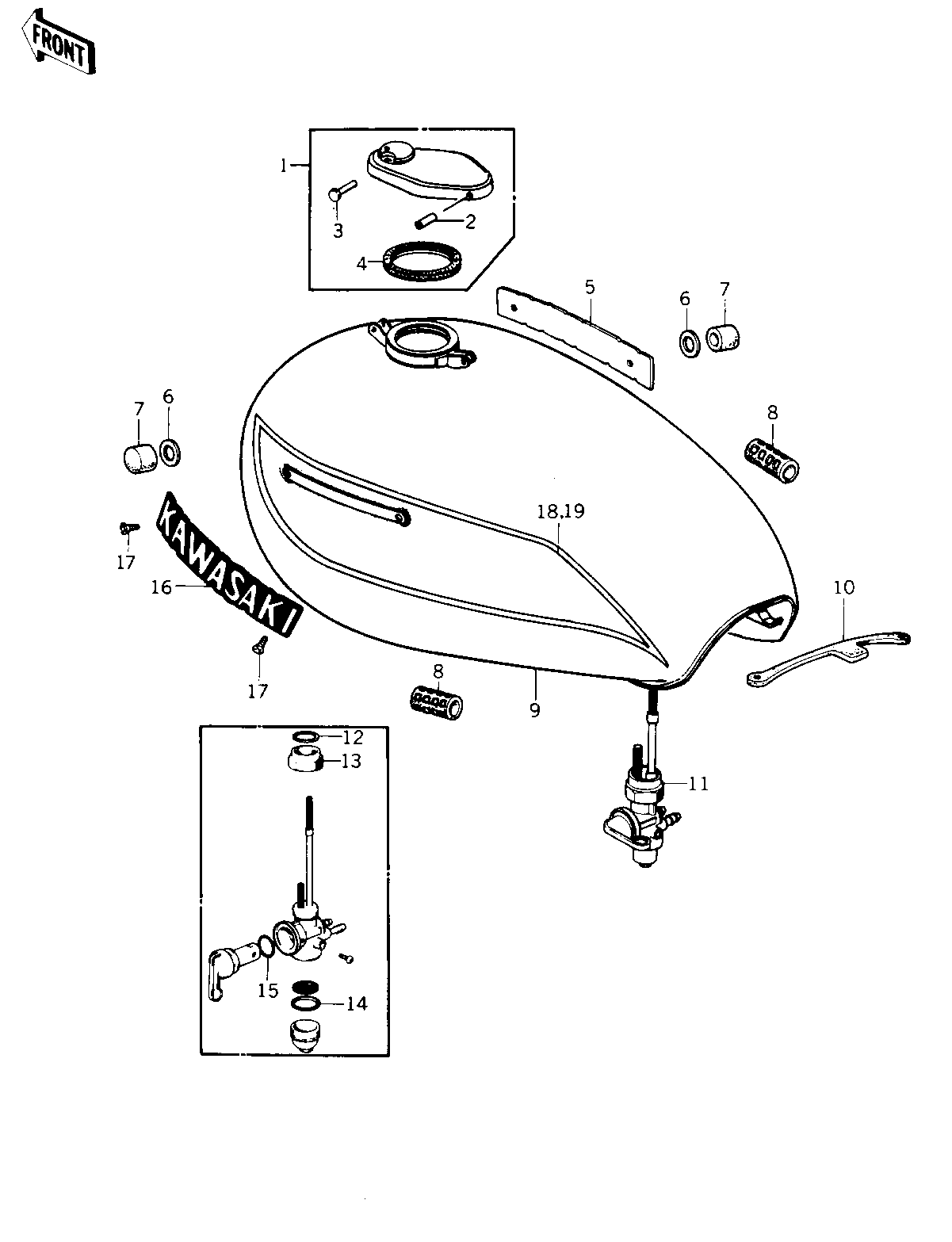

1978 KZ1000 LTD - FUEL TANK (KZ1000-B2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,FUEL TANK | 1 | 51048-012 | 1 | ||
PIN,CAP HINGE | 2 | 92043-127 | 1 | ||
PIN,HOOK | 3 | 92043-126 | 1 | ||
GASKET-FUEL TANK CAP | 4 | 51059-008 | 1 | ||
EMBLEM,FUEL TANK,R.H | 5 | 56014-1014 | 1 | ||
WASHER-PL-10.5X26X2.3 | 6 | 92022-044 | 2 | ||
DAMPER RUBBER,FL TANK | 7 | 92075-125 | 2 | FRONT | |
DAMPER RUBBER | 8 | 92075-084 | 2 | REAR | |
TANK-FUEL,EBONY | 9 | 51001-114-8G | 1 | ||
TANK-FUEL, | 9 | 51001-114-8H | 1 | ||
BAND,FUEL TANK | 10 | 92072-042 | 1 | ||
TAP ASSY | 11 | 51023-1002 | 1 | ||
GASKET-FUEL COCK JNT. | 12 | 92065-081 | 1 | ||
FUEL COCK JOINT NUT | 13 | 51035-009 | 1 | ||
GASKET FUEL COCK CUP | 14 | 51037-010 | 1 | ||
"0" RING, 10MM | 15 | 670B2010 | 1 | ||
EMBLEM,FUEL TANK,L.H | 16 | 56014-1013 | 1 | ||
SCREW-CSK-CROS | 17 | 221C0306 | 1 | ||
DECAL-FUEL TANK RH | 18 | 56027-1211 | 1 | ||
DECAL-FUEL TANK LH | 19 | 56027-1212 | 1 |
CAP,FUEL TANK | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,CAP HINGE | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,HOOK | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET-FUEL TANK CAP | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
EMBLEM,FUEL TANK,R.H | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PL-10.5X26X2.3 | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,FL TANK | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | FRONT |
DAMPER RUBBER | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | REAR |
TANK-FUEL,EBONY | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-FUEL, | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,FUEL TANK | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP ASSY | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET-FUEL COCK JNT. | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUEL COCK JOINT NUT | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET FUEL COCK CUP | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING, 10MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
EMBLEM,FUEL TANK,L.H | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DECAL-FUEL TANK RH | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DECAL-FUEL TANK LH | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
