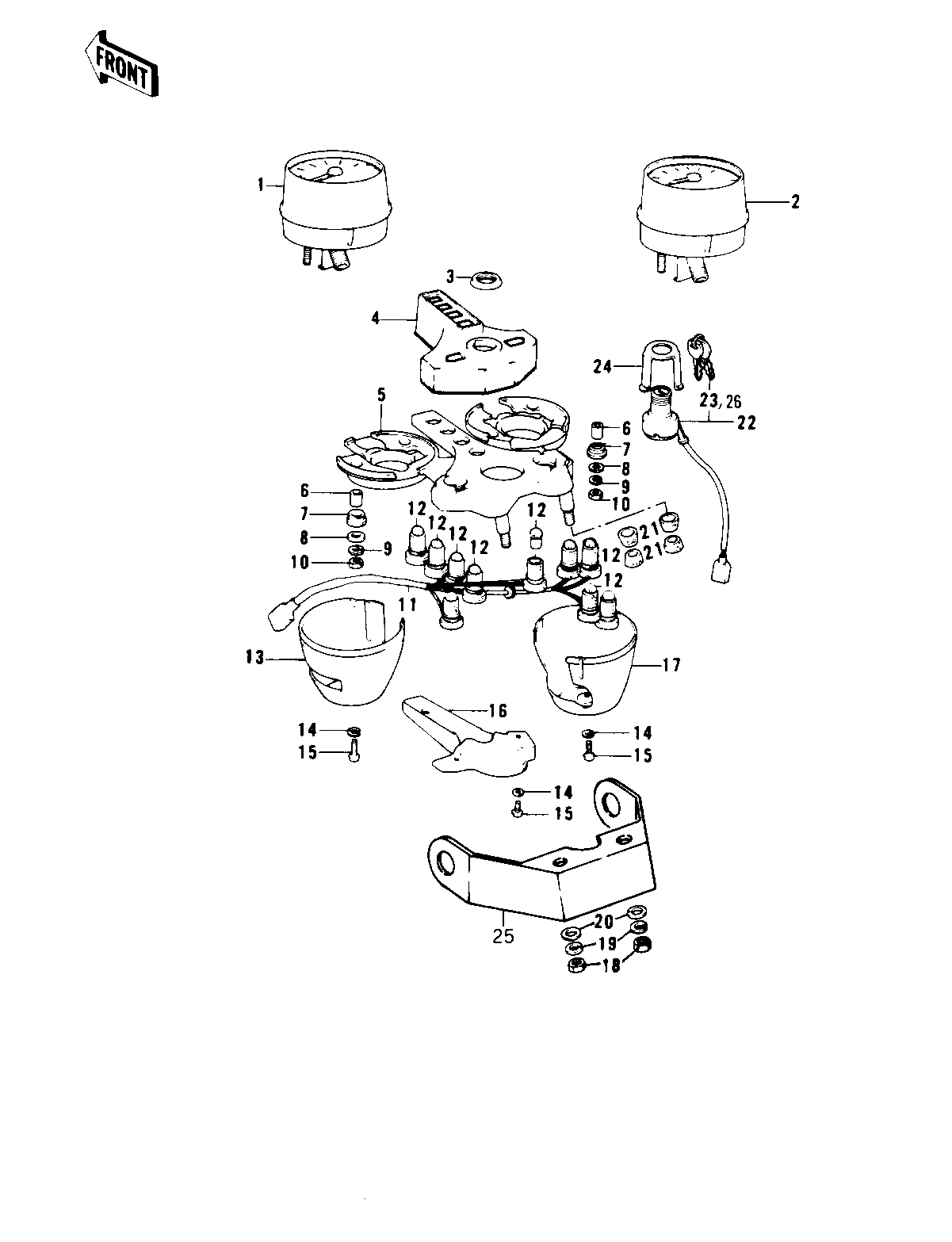

1978 KZ1000 LTD - METERS/IGNITION SWITCH ('77-'78 B1/B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY,MPH 1 25005-1031 1
SPEEDOMETER ASSY,MPH 1 25005-1031 1
SPEEDOMETER,KP4 (Canada) 1 25006-056 1 CANADA
TACHOMETER ASSY 2 25015-1010 1 KZ1000-B1
TACHOMETER ASSY 2 25015-1010 1 KZ1000-B2
NUT,IGNITION SW LOCK 3 27007-004 1
COVER,METER,INDICATER 4 25023-015 1
BRACKET,METER 5 25008-045 1
COLLAR,METER 6 92027-211 4
RUBBER,METER 7 92075-172 4
WASHER,PLAIN,5MM 8 92022-241 4
WASHER SPRING 5MM 9 461F0500 4
NUT 5MM 10 312B0500 4
SOCKET,SPEEDOMETER 11 25011-049 1
BULB 12V 3W 12 92069-018 10
COVER,SPEEDOMETER 13 25012-023 1 CHROME
WASHER SPRING 3MM 14 461F0300 5
SCREW PAN HEAD 3X8 15 220B0308 5
COVER,METER BRACKET 16 25024-006 1
COVER,TACHOMETER 17 25012-024 1 CHROME
NUT,8MM 18 311B0800 2
WASHER SPRING 8MM 19 461F0800 2
WASHER PLAIN 8MM 20 411B0800 2
DAMPER RUBBER 21 92075-080 4
SWITCH ASSY,IGNITION 22 27005-092 1
KEY SET,#751 23 27008-069-51 AR
KEY SET,#795 23 27008-069-95 AR
HOLDER IGNITION SW 24 27019-003 1
BRACKET HEADLAMP 25 23064-030 1
KEY,BLANK 26 27008-1013 AR
