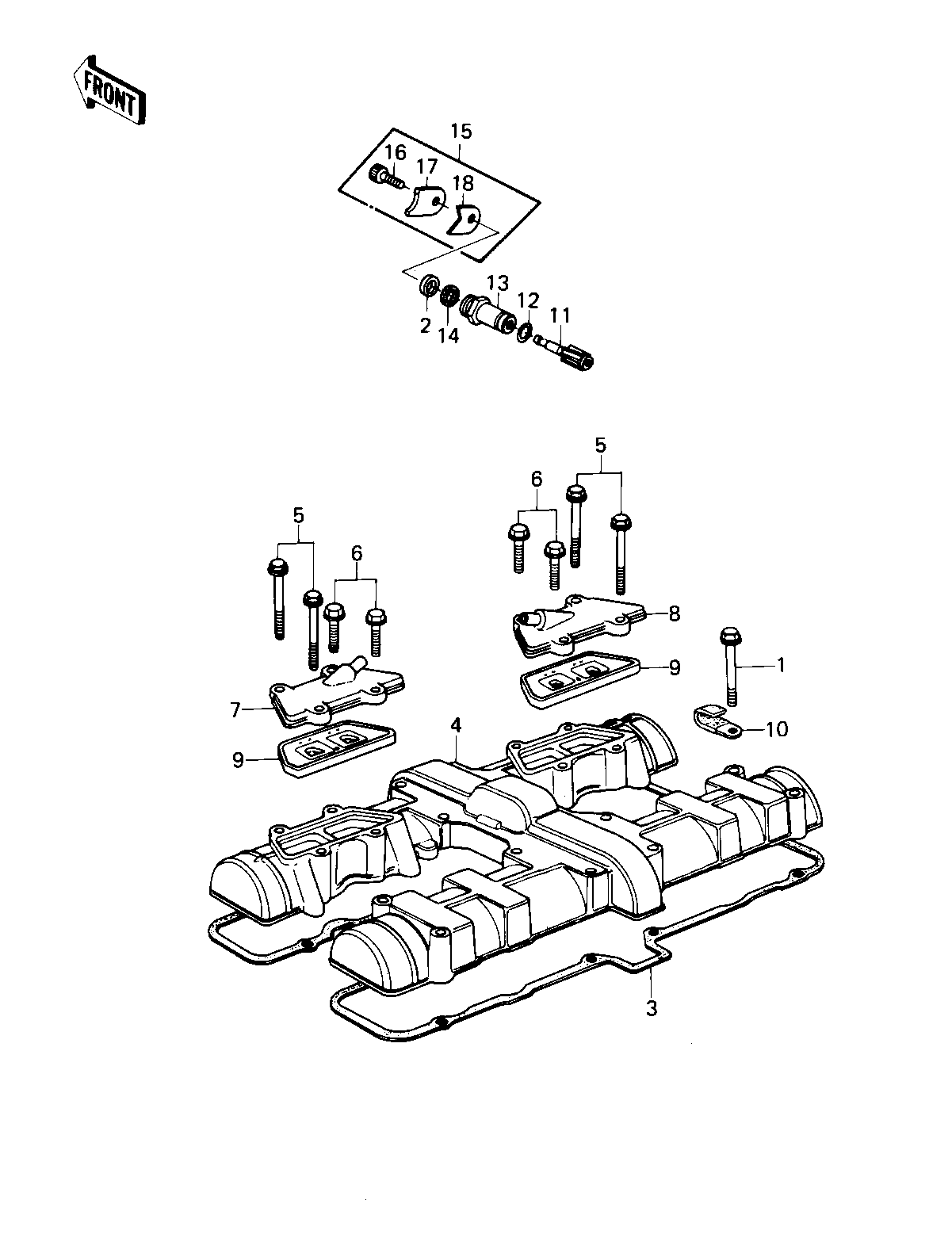

1979 KZ1000 LTD - CYLINDER HEAD COVER ('79-'80 B3/B4)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,HEX HEAD,6X45 | 1 | 92003-092 | 12 | ||
GASKET,TACHOMETER GER | 2 | 92065-103 | 1 | ||
GASKET,CYL HEAD COVER | 3 | 11009-1050 | 1 | ||
COVER,CYLINDER HEAD | 4 | 14025-1127 | 1 | ||
BOLT,HEX HEAD,6X66 | 5 | 92001-1161 | 4 | ||
BOLT,HEX HEAD,6X66 | 5 | 92001-1161 | 4 | ||
BOLT,HEX HEAD,6X20 | 6 | 92001-1100 | 4 | ||
CAP ASSY,L.H | 7 | 14075-5006 | 1 | ||
CAP ASSY,R.H | 8 | 14075-5005 | 1 | ||
VALVE ASSY REED | 9 | 12021-1003 | 2 | ||
CLAMP,WIRING HARNESS | 10 | 21126-008 | 2 | KZ1000-B3 | |
CLAMP,WIRING HARNESS | 10 | 21126-008 | 2 | KZ1000-B4 | |
GEAR,TACHOMETER,10T | 11 | 13223-011 | 1 | ||
RING-O,10MM | 12 | 92055-1149 | 1 | ||
GUIDE,TACHOMETER GEAR | 13 | 92087-010 | 1 | ||
OIL SEAL | 14 | 92050-075 | 1 | ||
HOLDER SET,TACHOMETER | 15 | 13091-5001 | 1 | ||
.BOLT,6X14 | 16 | 120P0614 | 1 | ||
.HOLDER,TACHOMETER2.3T | 17 | 13091-1008 | 1 | ||
.HOLDER,TACHOMETR,3.2T | 18 | 13091-1009 | 1 |
