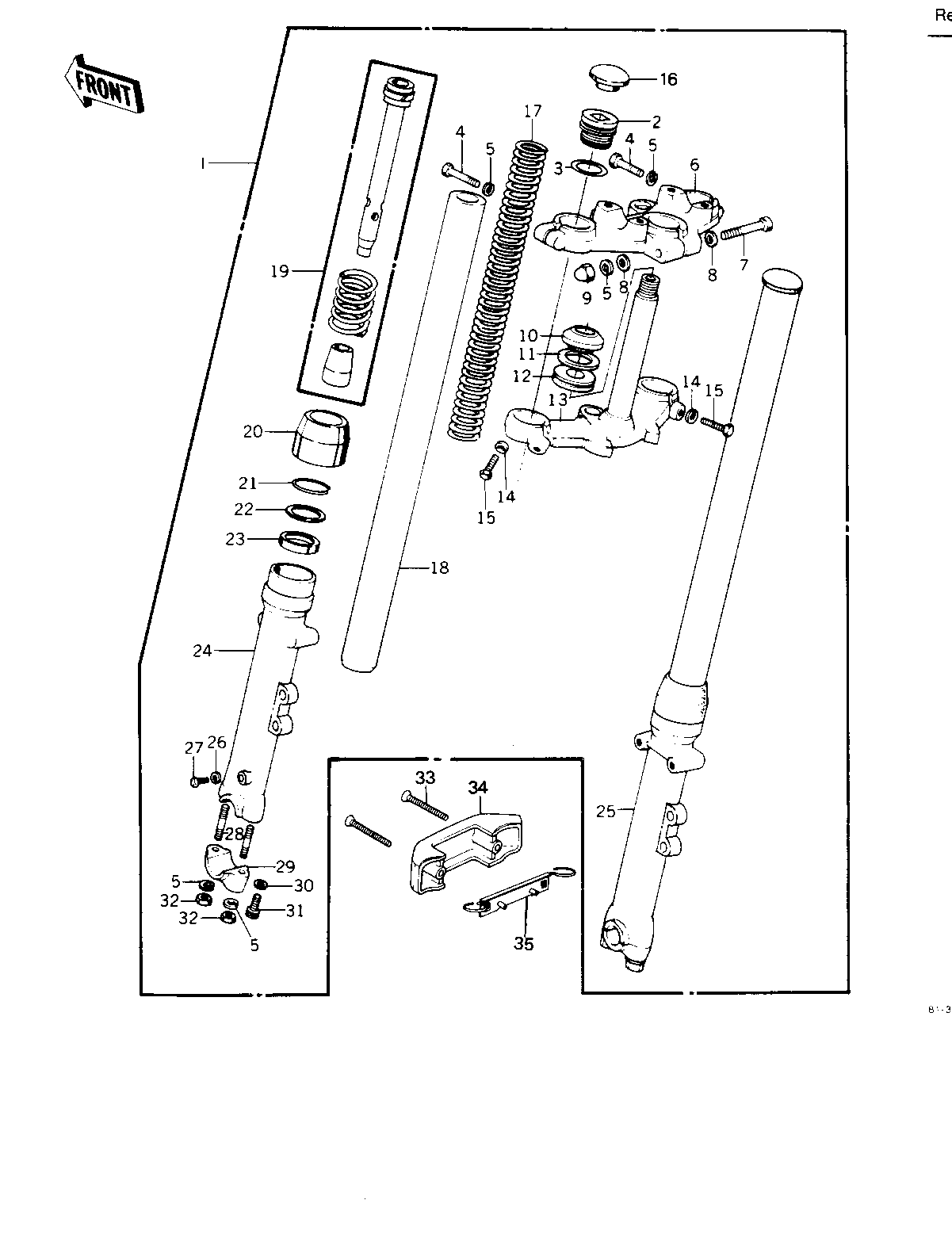

1979 KZ1000 LTD - FRONT FORK ('79-'80 B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1203 1
CAP,FORK SPRING 2 44029-1003 2
"O" RING,FORK TOP 3 92055-1009 2
BOLT-HEX HEAD.8M/M 4 44041-045 2
WASHER SPRING 8MM 5 461F0800 7
HEAD,STEERING 6 44039-073 1
BOLT-STEERING STEM HD 7 44041-042 1
WASHER PLAIN 8MM 8 410B0800 2
NUT FUEL TANK FRONT 9 92020-007 1
CONE,STEERING STEM 10 92047-012 1
WASHER,PLAIN 11 92022-231 1
OIL SEAL,STEERING STM 12 92056-003 1
STEM,STEERING 13 44037-1015 1
WASHER SPRING 12MM 14 461F1200 2
BOLT-HEX HEAD,12X36 15 92003-064 2
CAP,RUBBER 16 11012-1017 2
SPRING,FORK 17 44026-1003 2
TUBE,FORK INNER 18 44013-1003 2
CYLINDER-FORK 19 44022-1011 2
DUST SHEILD,FORK 20 44010-032 2
RING-SNAP,FORK OIL 21 92033-1100 2
WASHER-OIL SEAL FIT 22 44043-044 2
SEAL-OIL,FORK OUTER P 23 92049-1216 2
TUBE,LH,FORK OUTER 24 44005-1031 1
TUBE,RH,FORK OUTER 25 44006-1031 1
GASKET FORK DRAIN PLG 26 44045-002 2
SCREW PAN HEAD 4X8 27 220B0408 2
STUD,8X35 28 92004-1009 2
HOLDER,FRONT AXLE 29 44063-014 2
GASKET,FORK CYLINDER 30 44045-057 2
BOLT-FORK CYLINDER 31 44041-040 2
NUT,CAP AND LOCK,8MM 32 92019-013 4
SCREW-CSK-RD-CROS 33 222C0518 2 KZ1000-B4
COVER,FORK 34 44033-1054 1 KZ1000-B4
BRACKET,FORK COVER 35 11034-1766 1 KZ1000-B4
