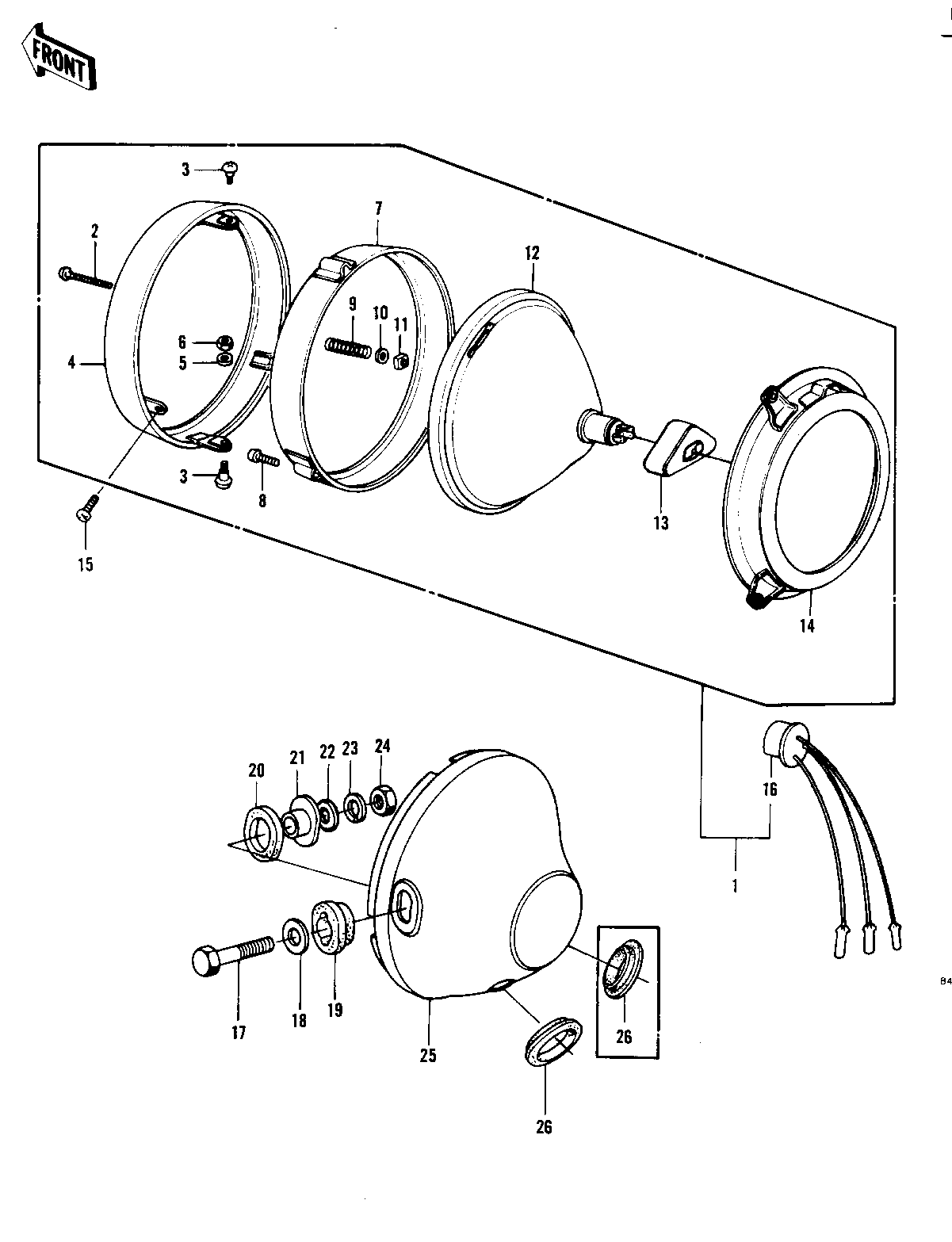

1979 KZ1000 LTD - HEADLIGHT (KZ1000-B3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT,HEAD 1 23004-1009 1
.SCREW FORCUS ADJUST 2 23019-021 1
.SCREW-PAN HEAD,5X12 3 23019-023 2
.RIM,HEAD LAMP 4 23006-038 1
.WASHER-PLAIN,5MM 5 23021-012 2
.NUT,HEAD LAMP RIM FIT 6 23020-023 2
NUT,HEAD LAMP RIM FIT 6 23020-023 2
.RING,HEAD LAMP MOUNT 7 23072-001 1
.SCREW PAN HEAD 3X12 8 220B0312 2
.SPRING FOCUS ADJUST 9 23014-005 1
.WASHER 10 23021-004 1
.NUT,4MM 11 23020-018 1
.SEALED BEAM UNIT 12 23007-1006 1
.DUST COVER,HEAD LAMP 13 49016-1009 1
RING,HEAD LAMP MOUNT 14 23074-001 1 .
SCREW,PAN HEAD,5X14 15 23019-022 2
SCREW,PAN HEAD,5X14 15 23019-022 2
SOCKET ASSY,HEAD LAMP 16 23008-037 1
BOLT,10MM 17 92007-024 2
WASHER-PLAIN,10MM 18 411D1000 2
DAMPER RUBBER 19 23066-022 2
DAMPER RUBBER 20 23066-021 2
COLLAR 21 23052-010 2
WASHER PLAIN 10MM 22 410B1000 2
WASHER SPRING 10MM 23 461F1000 2
NUT 10MM 24 315B1000 2
BODY-COMP-HEAD LAMP 25 23005-1016 1 1 WIRING HOLE
BODY-COMP-HEAD LAMP 25 23005-1016 1 2 WIRING HOLES
GROMMET 26 92071-1008 1 FOR 23005-1012
