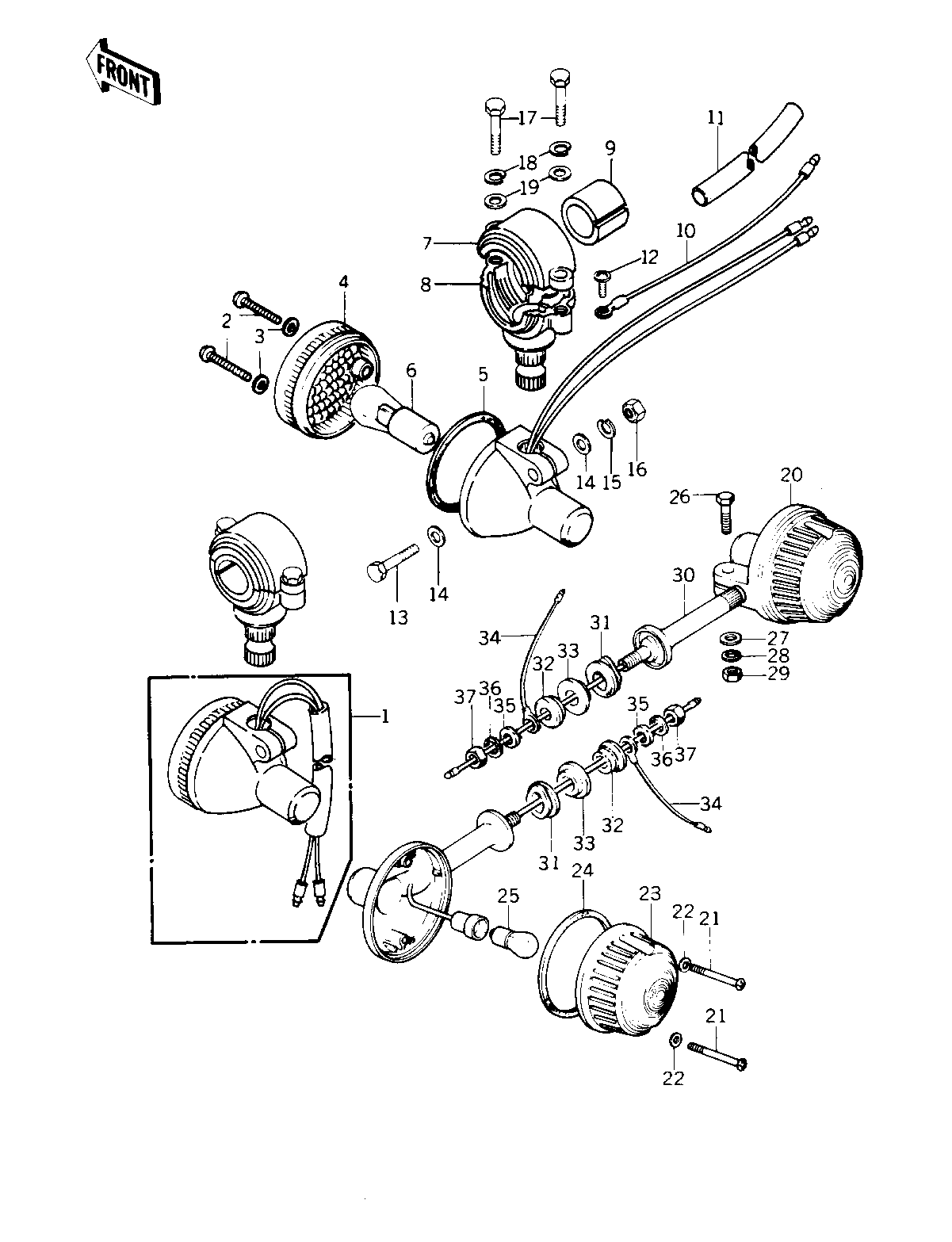

1979 KZ1000 LTD - TURN SIGNALS ('79-'80 B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP,FRNT,TURN SIGNAL 1 23040-1004 2
SCREW-PAN HEAD,4X20 2 220E0420A 2
WASHER-PLAIN,4MM 3 23058-002 4
LENS,TURN SIGNAL LAMP 4 23048-1001 2
GASKET-SIG LAMP LENS 5 23050-003 2
BULB,12V 23/8W 6 92069-060 2
BRACKET,SIGNAL LAMP 7 23051-1013 2
BRACKET,FRNT TURN SIG 8 23051-1004 2
DAMPER RUBBER 9 23066-003 2
WIRE-TURN SIGNAL LEAD 10 26011-061 2
COVER-WIRING HARNESS 11 26009-004 2
SCREW PAN HEAD 3X5 12 220B0305A 2
BOLT-UPSET 13 112G0630 2
WASHER PLAIN 6MM 14 411B0600 4
WASHER SPRING 6MM 15 461F0600 2
NUT 6MM 16 311B0600 2
BOLT 17 110N0516 4
WASHER SPRING 5MM 18 461F0500 4
WASHER-PLAIN,5MM 19 410D0500 4
LAMP-TURN SIGNAL 20 23040-029 2
SCREW-PAN HEAD,4X35 21 220E0435A 4
WASHER-PLAIN,4MM 22 23058-002 4
LENS-SIGNAL LAMP 23 23048-1024 2
GASKET,TURN SIG LAMP 24 23050-002 2
BULB 12V 32CP 25 92069-055 2
BOLT-UPSET 26 112G0630 2
WASHER PLAIN 6MM 27 411B0600 2
WASHER SPRING 6MM 28 461F0600 2
NUT 6MM 29 311B0600 2
BRACKET,TURN SIG LAMP 30 23051-1006 2
DAMPER RUBBER 31 92075-128 2
COLLAR 32 92027-147 2
DAMPER RUBBER,SIG LM 33 92075-158 2
LEAD WIRE,SIGNAL LAMP 34 26011-063 2
WASHER,PLAIN 35 92022-239 2
WASHER SPRING 10MM 36 461F1000 2
NUT 10MM 37 315B1000 2
